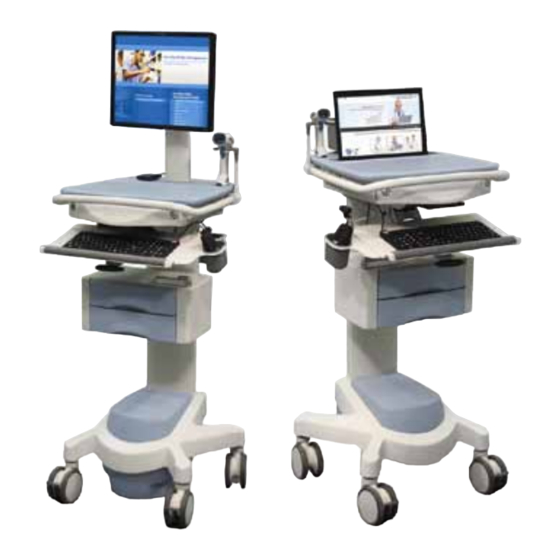

ST7 FLEX Workstation
QUICK RESOURCE GUIDE
www.futuramobility.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST7 and is the answer not in the manual?

Questions and answers

Summary of Contents for FUTURA MOBILITY ST7

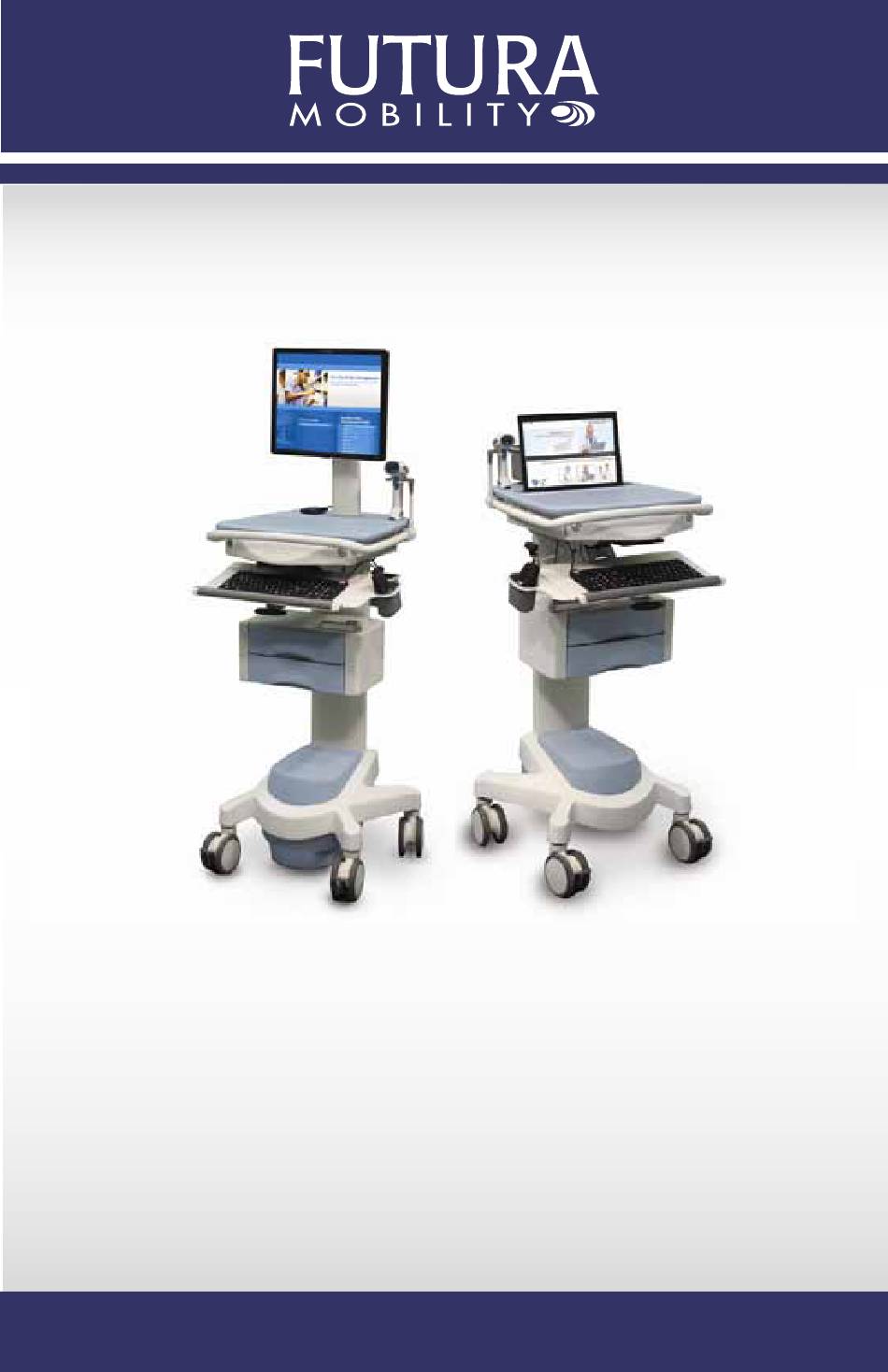

  • Page 1 ST7 FLEX Workstation QUICK RESOURCE GUIDE www.futuramobility.com...

  • Page 3: Table Of Contents

    Technology Access ..........13 Using the Standard Keypad Locks ..... 14 Using the Enhanced Keypad Locks ..... 16 Power System ........... 18 Fleet Management ..........19 Storage, Transportation & Repair ...... 20 Cleaning the Workstation ........21 ST7 Standard Workstation Quick Resource Guide...

  • Page 4: Specifications

    • Class 1 Equipment • DC supplied and internally powered • No applied parts • Not protected against ingress of water • Not suitable for use in presence of flammable anaesthetic mixture with air or with oxygen or nitrous oxide • Designed for continuous operation ST7 Standard Workstation Quick Resource Guide...

  • Page 5: Regulatory Statements

    REgULATORy STATEMENTS The following statements apply to the ST7 Flex Workstation. United States – Federal Communication Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Warnings And Cautions

    Product. Long-Term Storage If the ST7 Flex Workstation is to be stored or not used for more than 3 months, in addition to the short term storage instruction, disconnect or completely remove the Continuum Power System.

  • Page 7: Unpacking The Workstation

    UNPACKINg THE WORKSTATION NOTE: Futura Mobility offers on-site unpacking and integration services as a value add to hospitals to streamline deployment of mobile workstations. 1. Remove all packaging material from workstation 2. Dispose of all packaging material according to local waste management regulations or facility policy 3.

  • Page 8: Key Features

    14. Power Cable Holder 15. Power Cable 16. Power Switch 17. Storage Basket 18. Height Adjustment Lever 19. Mouse Cubby and Tray 20. Universal Corded Scanner Holder (optional) 21. Cable Management Cover - Monitor Mount ST7 Standard Workstation Quick Resource Guide...

  • Page 9: Operating The Workstation

    OPERATINg THE ST7 FLEX WORKSTATION The ST7 workstation comes fully assembled and ready to use. There are a few height adjustable features on the cart that can be changed to accommodate users of different heights. Work Surface Adjustment To raise and lower the work surface, there is a hand lever located inside the front handle of the cart.
  • Page 10 The mouse cubby holds the mouse when it is not in use. The cubby is attached to a mouse tray that slides out from the keyboard tray. The cubby and tray can be switched to the other side of the keyboard tray for left-handed users. ST7 Standard Workstation Quick Resource Guide...
  • Page 11 For CPU carts, the monitor mount holds up to a 24” monitor with either a 75 or 100 mm VESA pattern. The cabling for the monitor is routed through the hole in the monitor mount pole and into the work surface. ST7 Standard Workstation Quick Resource Guide...

  • Page 12: Using The Ups

    Five LEDs indicates full charge, and LEDs turn off from right to left to indicate a decreasing charge. When one LED is lit it is time to plug in the UPS to charge it. ST7 Standard Workstation Quick Resource Guide...
  • Page 13 While charging, a scrolling light moves from left to right on the LED indicator as capacity is returned to the battery. When the battery is fully charged, it automatically switches to a “float charge” mode. All five LED sections on the front of the mobile cart change to solid green. It is safe to leave the battery plugged in while in “float charge.” ST7 Standard Workstation Quick Resource Guide...

  • Page 14: Technology Access

    TECHNOLOgy ACCESS f technology integration has been purchased through Futura Mobility, the cart will come from the manufacturer with the appropriate technology already installed. If that service option was not chosen or access to the technology is required for any reason, there is are two...

  • Page 15: Using The Standard Keypad Locks

    When the battery power is low, the Red LED will flash 3 times after a code has been entered. Batteries should be changed immediately. The lock will operate on low power for approximately 100 openings. Battery Replacement To replace the batteries remove the rear-fixing bolt and swing the lock over the edge of the door to reveal the battery compartment. ST7 Standard Workstation Quick Resource Guide...
  • Page 16 To change the master code: #[Master Code] [New Master Code] [New MasterCode] To change the User code: #[Master Code] [New User Code] [New User Code] Note: All User Codes are 4 digits long ST7 Standard Workstation Quick Resource Guide...

  • Page 17: Using The Enhanced Keypad Locks

    ” key. The blue Status LED will light. • Press the “6” key, followed by the “ ” key. • Enter the desired amount of time in the format ‘MMSS’ where MM is the number of minutes and SS is the number of seconds. The blue Status LED will flash indicating programming is complete. If an invalid key is pressed (“ ”, “Lock”), the red Status LED will flash. ST7 Standard Workstation Quick Resource Guide...
  • Page 18 Program New Default Code Keypad Key 1. Blue Status LED - indicates accepted command or controller waiting for input 2. Red Status LED - indicates incorrect input or time-out 3. “Lock” Key - re-locks doors during access time 4. “Clear” Key - clears previous keystrokes ST7 Standard Workstation Quick Resource Guide...

  • Page 19: Power System

    POWER SySTEM The ST7 Flex Workstation is powered by the Continuum Power System from Futura Mobility. The Continuum Power System is a propriatary power system utilizing lithium iron phosphate (LiFePO ) technology. Caution: End users who use non-approved medical computers...

  • Page 20: Fleet Management

    MOBILEFORCE FLEET MANAgEMENT Futura Mobility offers our MobileForce Fleet Management software to enable you to monitor power levels in mobile carts deployed across your hospital at an enterprise level. The tool can also be used to track sched- uled maintenance and warranty status, as well provide comprehensive and customized reporting.

  • Page 21: Storage, Transportation & Repair

    STORAgE TRANSPORTATION ANd REPAIR Short Term Storage If the ST7 Flex Workstation is not put into immediate use it should be stored in a clean, dry location with a temperate range of 32°-86° F (0°- 30° C) and a relative humidity of 0-95% (non-condensing). Ensure that the workstation is protected from light sources emitting ultraviolet rays.

  • Page 22: Cleaning The Workstation

    • Steel wool and other abrasive pads will damage the surface. Do not use them for cleaning. • Toilet bowl cleaners contain harsh chemicals that can cause permanent damage. If spills occur, wipe up immediately, ST7 Standard Workstation Quick Resource Guide...
  • Page 23 To contact your sales representative regarding the purchase of| additional workstations, related devices such as bar code scanners, printers, computers, or onsite mobile cart repair services, please call 215-642-3363 x 2 or email sales@futuramobility.com ST7 Standard Workstation Quick Resource Guide...
  • Page 24 515 Pennsylvania Avenue Fort Washington Pa 19034 215-642-3363 www.futuramobility.com...
