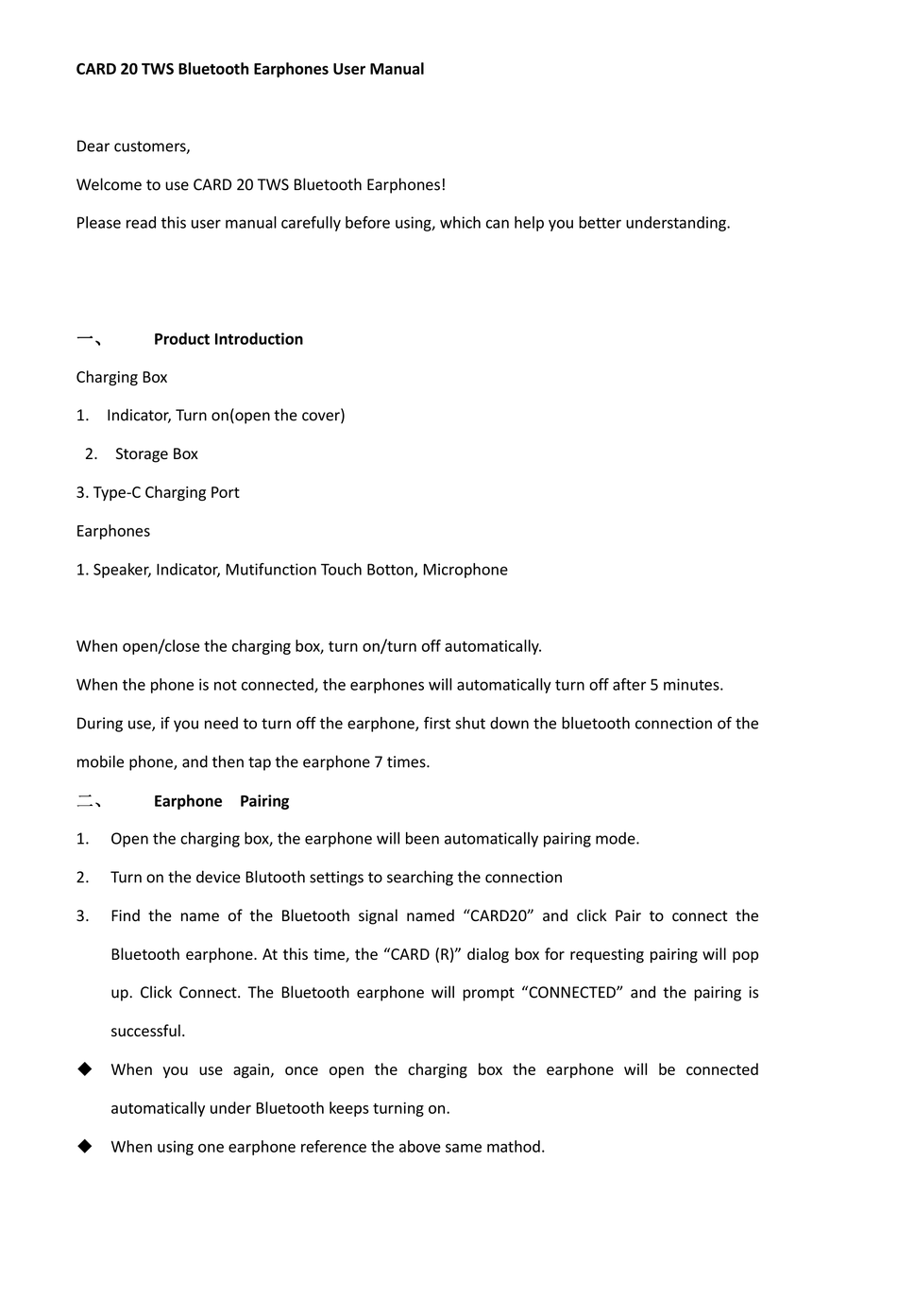

CARD 20 TWS Bluetooth Earphones User Manual
Dear customers,
Welcome to use CARD 20 TWS Bluetooth Earphones!
Please read this user manual carefully before using, which can help you better understanding.
Product Introduction
一、
一、
一、
一、
Charging Box
1. Indicator, Turn on(open the cover)
2. Storage Box
3. Type-C Charging Port
Earphones
1. Speaker, Indicator, Mutifunction Touch Botton, Microphone
When open/close the charging box, turn on/turn off automatically.
When the phone is not connected, the earphones will automatically turn off after 5 minutes.
During use, if you need to turn off the earphone, first shut down the bluetooth connection of the
mobile phone, and then tap the earphone 7 times.
Earphone Pairing
二、
二、
二、
二、
1.
Open the charging box, the earphone will been automatically pairing mode.
2.
Turn on the device Blutooth settings to searching the connection
3.
Find the name of the Bluetooth signal named "CARD20" and click Pair to connect the
Bluetooth earphone. At this time, the "CARD (R)" dialog box for requesting pairing will pop
up. Click Connect. The Bluetooth earphone will prompt "CONNECTED" and the pairing is
successful.
When you use again, once open the charging box the earphone will be connected
automatically under Bluetooth keeps turning on.
When using one earphone reference the above same mathod.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YOBYBO CARD20
Summary of Contents for YOBYBO CARD20
- Page 1 Turn on the device Blutooth settings to searching the connection Find the name of the Bluetooth signal named “CARD20” and click Pair to connect the Bluetooth earphone. At this time, the “CARD (R)” dialog box for requesting pairing will pop up.
- Page 2 If the two earphones cannot be paired with each other, follow the steps below. Step Operating Indicator light Delete the corresponding "CARD20" Bluetooth connection in the phone settings. Put the earphones in the charging The earphones lights up red after case and close the lid.
-
Page 3: Operation Functions
2. Charging Box Charging box indicates the battery capacity according to the existing power. When charging the box, the indicator will display the corresponding charging indicator, three indicators will always be on after full charging. Control Method 三、 三、... -
Page 4: Answering The Phone
Use a pair Operation functions 2 Function Answering the phone ● ● ● ● Hand up ● ● ● ● Call Rejection ● ● ● ● ● ● Play/ Pause ● ● ╱ NEXT ● ● ╱ PREV ● ● ● ╱... -
Page 5: Fcc Caution
About 1 Hour Charging box charge time About 1.5 Hours FCC ID: 2AVYG-CARD20 FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 6 -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
