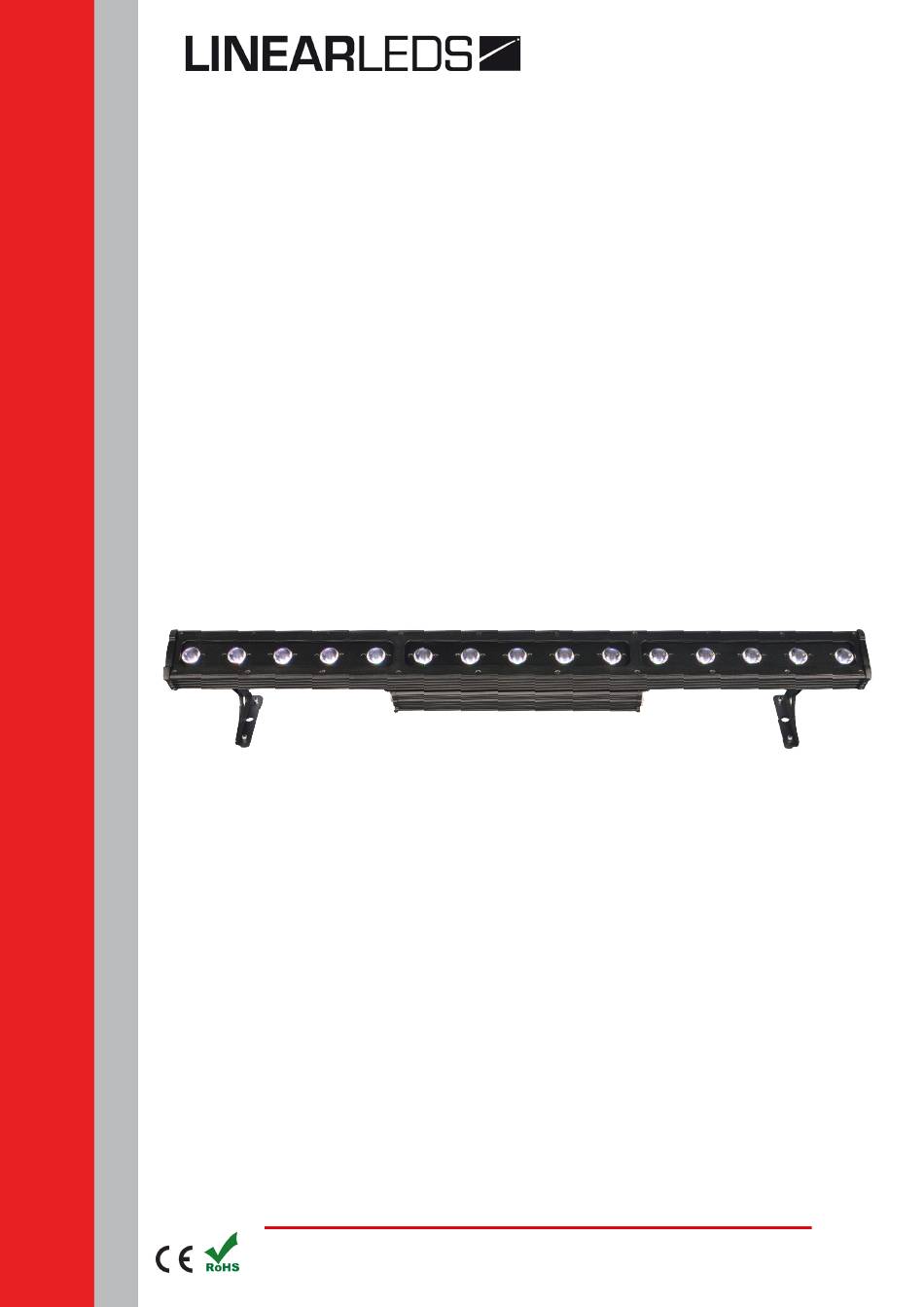

LED BAR (4 IN 1) LTL.BL154
Operation manual
Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne
V.2016
Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr

Advertisement

loading
Need help?

Need help?

Do you have a question about the LTL.BL154 and is the answer not in the manual?

Questions and answers

Summary of Contents for LINEAR LEDS LTL.BL154

  • Page 1 LED BAR (4 IN 1) LTL.BL154 Operation manual Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne V.2016 Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page 3 1. Before you begin Page 4 2. Introduction Page 5 3. Setup Page 7 4. Operating instructions Page 15 5. Appendix...

  • Page 3: Before You Begin

    1. BEFORE YOU BEGIN What is included • 1 x Fixture • 1 x Power cable with plug • 1 x User manual Unpacking instructions Immediately upon receiving a fixture, carefully unpack the carton; check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the...

  • Page 4: Introduction

    • This light belongs to grade protection device, therefore the light must connect to the earth excellently. And the power connection must be operated by the professional technician. • Make sure that the working voltage will not higher or lower than the rated value. • Make sure that the cable didn’t be damage or lacerated by sharp. • The light must be power off when it’s standing idle or before clearing. • The cable must with plug, and you must pull out the cable by handle the plug. • Please be careful when installing the lighting. Never touch the bared cable, or it will cause the deadly electric shock. • Please use the suitable and safe cable to connect the light. • Please never remodel the light randomly, we will not take the guarantee for the faulty and damage which caused by dismantle repair or remodel of the nonprofessional person. • Maximum ambient temperature 40°C. Do not operate fixture at temperatures higher than this.

  • Page 5: Setup

    Product overview Dimensions 3. SETUP Installation requirement This product can be used in a variety of situations, can hang and put on the ground. If hanging the fixture for over head use, then please follow the below steps. Please choose the suitable location to put or hang the light when installing it. You must use the exclusive clamp hanger and screw when hanging it, and make sure the weight of the light is within limits of the hanger. Please make sure without any flammable objects within 0.5m when installing the light. The installation should be operated by professional person; any irregular installation will cause the body injury or equipment damage. Block access below the work area and use suitable and stable platform when installing or servicing fixture.
  • Page 6 Connection of DMX signal wire 1. Please use the fixture controller wire specially when use the DMX512 controller. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. 2. Connect the end of the cable coming from the first fixture which will have a (male) 3 pin connector to the input connector of the next fixture consisting of a (female) 3 pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on. 3. This product can be connected numerous lamps in series without the need for the signal amplifier; the signal will not be weakened. 3-PIN to 5-PIN conversion chart Note : If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

  • Page 7: Operating Instructions

    Conductor 3 Pin Female (output) 5 Pin Male (Input) Ground / Shield Pin 1 Pin 1 Data ( - ) signal Pin2 Pin2 Data ( + ) signal Pin 3 Pin 3 Do not use Do not use Do not use Do not use 4. OPERATING INSTRUCTIONS Control panel functions Button Function Mode...
  • Page 8 Main function Subfunction Selection Instruction 11CH 04CH 06CH Select 11/04/06/15/17/21/60 channel 15CH PERS setting 17CH 21CH 60CH «Off» means select linear dimming, or choose dimmer 1-4 to control the dimming speed, dimming 1 of the fastest DIM1/2/3/4 dimming curves, 4 for the most slowly dimming curve Version number ON ~ OFF Enables or Disables password lockout 01~16 Amount set of combined lights C.SUM CoMP 01~16 Number set of combined lights C.id Operating instructions Enable password lock (KEY) (ON) / (OFF) {ENTER} (ON) enable lock, (OFF) disable lock Enable the password lock, control panel in the boot or go into standby automatically take...
  • Page 9 DMX512 channel values 4 channels : Channel Value Description 000~255 000~255 Green 000~255 Blue 000~255 White 6 channels Channel Value Description 000~255 000~255 Green 000~255 Blue 000~255 White 000~255 No function 006~255 Strobe / Auto speed 000~005 No function 006~255 AUTO (AT01~50) Channel 6 has priority over channels 1-5. When activating the auto programs, then it is possible to control the auto speed by using channel 5.
  • Page 10 17 channels Channel Value Description 1. LED 000 ~015 No function 2. LED 016 ~031 3. LED 032 ~047 4. LED 048 ~063 5. LED 064 ~079 6. LED 080 ~095 7. LED 096 ~111 8. LED 112 ~127 R+G+B 9. LED 128 ~143 10. LED 144 ~159 11. LED 160 ~175 12. LED 176 ~191 13. LED 192 ~207 R+G+W 14. LED 208 ~223 G+B+W 15. LED 224 ~239...
  • Page 11 Channel Value Description 8. Module selection 245~255 Convert to 11CH-2 000~005 No function 9. Auto 006~025 Auto (AT01~50) 000~255 Auto speed 000~255 Dimmer speed Master dimmer Channel 1 controls the intensity of the currently projected color when the slider is at the highest position (255), then the intensity of the output is at the maximum. Red, green, blue and white color selection Channels 2, 3,4 and 5 control the intensity ratio of each of the Red, Green, Blue & White LEDs.
  • Page 12 21 channels Channel Value Description 1. LED 1 000~015 No function 2. LED 2 016~031 3. LED 3 032~047 4. LED 4 048~063 5. LED 5 064~079 6. LED 6 080~095 7. LED 7 096~111 8. LED 8 112~127 R+G+B 9. LED 9 128~143 10. LED 10 144~159 11. LED 11 160~175 12. LED 12 176~191 13. LED 13 192~207 R+G+W 14. LED 14 208~223 G+B+W 15. LED 15 224~239 R+B+W 240~255 R+G+B+W 16. Module 1...
  • Page 13 Master / Slave control mode 1. Setting master machine Access control panel function by pressing MODE until (AUTO) is displayed. Press ENTER, select (AT00)/(AP00)/(CP00) by pressing UP/DOWN buttons. Press ENTER and then press MODE to exit. You can choose (AT00)pre-set programs, the range is (o1--50). Or you can choose (AP00)custom programs, the range is (o1--50). 2. Setting slave machine Access control panel function by pressing MODE until (SLAV)is displayed. Press ENTER. Group working 1. Amount set of combined lights Access control panel function by pressing MODE until (COMP) is displayed. Press ENTER, select (C.SUM) by pressing UP/DOWN buttons. Press ENTER, amount set of combined lights, by pressing UP/DOWN between 01 and 16.
  • Page 14 4. Setting slave machine Access control panel function by pressing MODE until (SLAV) is displayed. Press ENTER. Group working (DMX512 mode) 11CH-2 Channel Value Description 000 ~ 015 No function 016 ~ 031 032 ~ 047 048 ~ 063 064 ~ 079 080 ~ 095 096 ~ 111 1. Module 1 112 ~ 127 R+G+B 2. Module 2 128 ~ 143 3.

  • Page 15: Appendix

    Auto programs Chanel 5 selects the preset combine auto program (AP 1~50) Chanel 6 selects the preset combine cartoon effects(CP 1~25) Chanel 9 selects the preset auto program (AT 1~50) When activating the auto programs, then it is possible to control the auto speed by using channels 10. Channel 9 has priority over channels 2-8. Channel 5 has priority over channels 2-6. Channel 6 has priority over channels 2-4. 5. APPENDIX Service maintenance guide Symptom(s) Possible Solution(s) Clean the fixture regularly to avoid any such failure. This fixture is convection cooled, which means that if the surface is kept clean and free of debris, then proper cooling will be allowed to occur. An LED may have failed, resulting in an open circuit. In this event, all of the red, green, or blue in a single module will no longer illuminate. This does not mean that all of the LEDs have failed, but the circuit is 1 or more LED’s wired in series.
  • Page 16 Symptom(s) Possible Solution(s) Use only DMX cables. Install terminator. Loss of signal Note : Keep DMX cables separated from power cables or black lights. Make sure connector is firmly connected to device. COLOR-CON controller does not This fixture must be in the correct mode in order to properly respond function, or does not to the COLOR-CON controller. The correct mode is “DMX” in the function properly onboard control panel. Stand alone This fixture has built-in, automatic programs that may be triggered operation from the onboard control board. The display is only The password lockout has been enabled. You can use the password: showing : #### {MODE UP MODE DOWN MODE UP MODE DOWN}...
  • Page 17 Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
