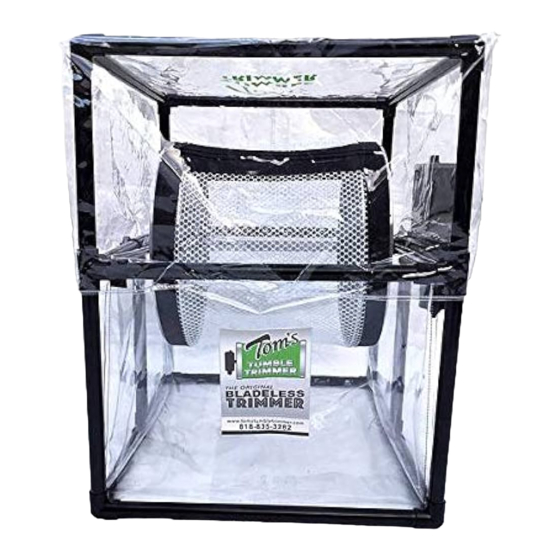

Tom's Tumbler TTT 1600 Assembly Instructions

Tom's Tumbler TTT 1600 Assembly Instructions

Advertisement

Quick Links

U
Y
T
SING
OUR
UMBLER (CONTINUED)
The Three-Step Process
1. TRIM
Put the larger hole (1/2") mesh net on the trimmer and place the CORRECT AMOUNT of product in the net. The ideal
amount will fill the barrel to about 1" under the axle. Over filling or under filling are not recommended.
2. SEPARATE
When finished trimming, remove the 1/2" mesh net and put the 3/8" hole net on the tumbler. Place the TRIM in the net
and turn the motor on for just a few minutes. This will isolate and catch any small nuggets that fell through the larger
hole net, and the trim will be clean and separated.
3. EXTRACT POLLEN
If you have a pollen net (sold with the System or available separately), put the net on the drums as was done with the
mesh nets. We recommend that you freeze your trim first, or use a few nuggets of dry ice in the barrel the your trim to
speed up the process. A plastic bag or liner can be placed in the funnel flow bag to catch all of the pollen. In just a few
minutes you will have a pile of pollen under the trimmer, as well as on the funnel flow bag and dust cover. Use a small
brush to brush the kief from the dust cover and funnel flow bag into the catch bin.
Care and Cleaning
We recommend cleaning the funnel flow bag and dust cover after each use with a damp rag and Weed Wipes or other
organic cleaner. The mesh nets can be washed in a washing machine with cold water and detergent. Line dry.
Clean the pollen net by wiping with a damp cloth or by dipping in alcohol for two minutes. Keep the zippers clean and
lubricated with organic vegetable oil spray or Weed Wipes.
Call us with any questions at 818-835-3282. Thank you again for your purchase!

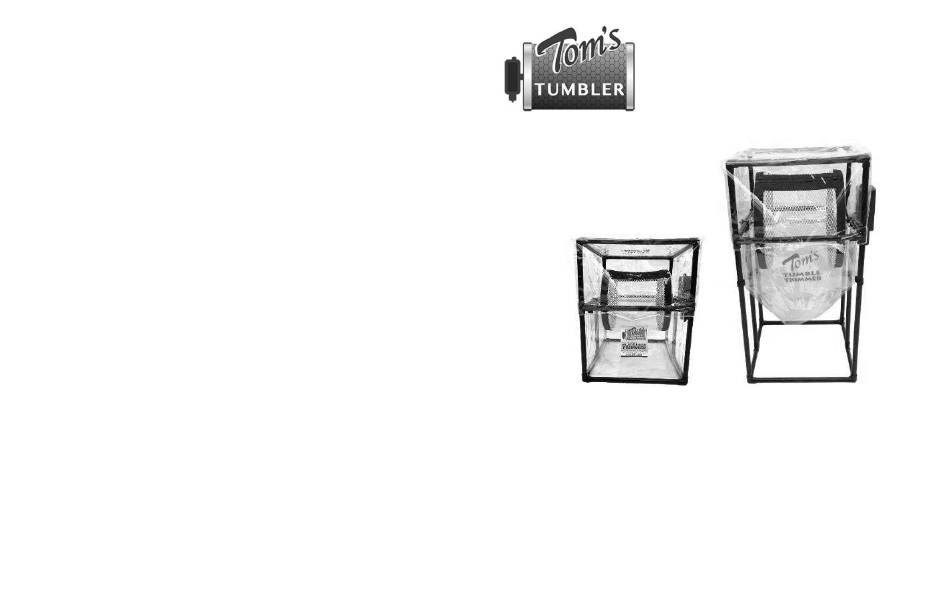

TTT 1600 and TTT 1900
Assembly Instructions
P
L
ARTS
IST
Bottom Frame (6 openings for legs)
Middle Frame (6 openings for legs with bearings)
6 PVC legs (15" for TTT 1600 and 30" for TTT 1900)
2 aluminum pans with flanges and velcro
Motor with power cord
Parts Bag: 2 couplers, 2 clamps, 4 screws, long screw
1 axle
1 funnel flow bag
2 nets (1/2" mesh for trimming and 3/8" for separating)
Included with Systems
Dust Cover top (4 openings for dust cover legs)
1 Dust Cover with 4 legs
1 Pollen Net (151 Micron)
Tools Required
Rubber mallet (or PVC leg will work)
Phillips head screwdriver
Wrench or Vice grip

Advertisement

loading
Need help?

Need help?

Do you have a question about the TTT 1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tom's Tumbler TTT 1600

  • Page 1 Dust Cover top (4 openings for dust cover legs) Middle Frame (6 openings for legs with bearings) 1 Dust Cover with 4 legs 6 PVC legs (15" for TTT 1600 and 30" for TTT 1900) 1 Pollen Net (151 Micron) 2 aluminum pans with flanges and velcro...
  • Page 2 2. Thread the other drum onto the motor bushing. Hand tighten the drum flanges onto the bushing. MODEL MINIMUM MAXIMUM TTT 1600 3/4 pound 1 pound Attach Funnel Flow Bag to Frame TTT 1900 1 pound 2 pounds 1.
