AE022 - Tool Battery Replacement

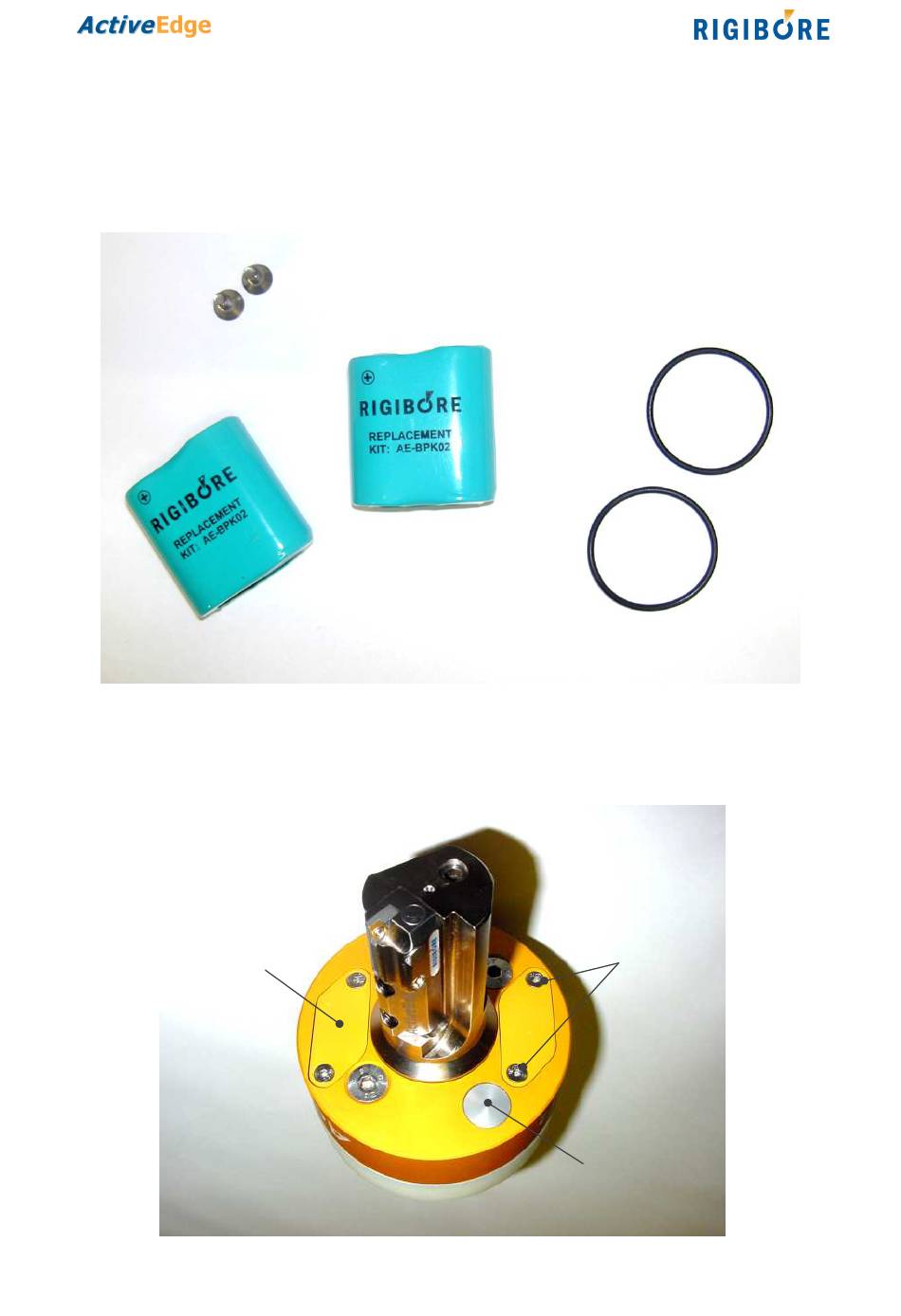

The contents of battery replacement kit AE-BPK02 are shown below. Two spare
screws are provided as replacements, if required.
discharged batteries with new.
Remove the old batteries by undoing the four M4 countersunk socket screws that
secure the battery cover plates to the front of the yoke. Remove the cover plates,
and remove the battery packs.
Battery cover
plate (2)
09-07-2013
N.B. Do not mix partially
'ON' switch
(pressure plate)
1
Cover plate
screws (4)
Advertisement
Table of Contents
Summary of Contents for RIGIBORE ActiveEdge AE-BPK02
- Page 1 AE022 - Tool Battery Replacement The contents of battery replacement kit AE-BPK02 are shown below. Two spare screws are provided as replacements, if required. N.B. Do not mix partially discharged batteries with new. Remove the old batteries by undoing the four M4 countersunk socket screws that secure the battery cover plates to the front of the yoke.
- Page 2 It is essential that replacement batteries are fitted in the orientation shown below, with the written side of the packs facing outward and the battery contacts pointing downwards into the yoke. Failure to follow these instructions may cause irreparable damage the Active Edge control electronics.
- Page 3 Discard the old seals and fit the new ‘O’ rings provided with the AE-BPK02 kit to the battery cover plates, as shown below 'O' Ring Seal Ensure that the O-ring counterbore on the yoke cap is clean and free from debris. Carefully replace the battery cover plates, taking care to ensure that they are properly seated into their recesses on the front of the yoke.
