Summary of Contents for HeadShot Controllers Arbiter 4

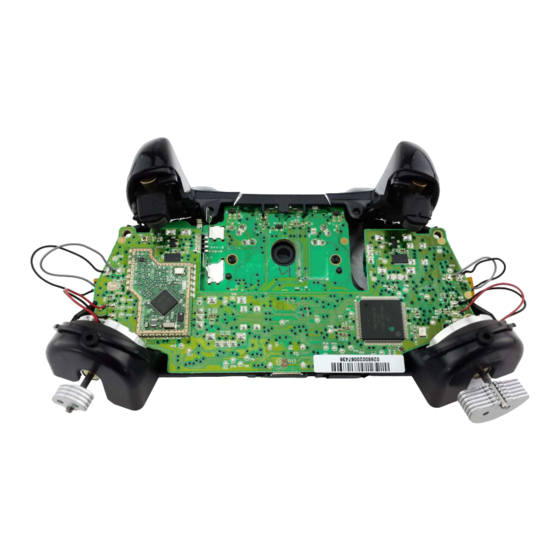

- Page 2 Thank you for buying from www.headshotcontrollers.co.uk – UK Official Distributor of the Arbiter Chipset. Start by taking apart the controller (Please see disassembly video at https://www.youtube.com/watch?v=ZhkQKwrwNV4). To make install much easier we recommend removing the main rumble motor wires and the trigger motor wires too. After removing the Shell, the controller should look like this.
- Page 3 Remove the Rumble cables from the Triggers and Rumble Motors. After removing the wires add solder to these connections ready for reassembly. Thank you for buying from www.headshotcontrollers.co.uk – UK Official Distributor of the Arbiter Chipset.
- Page 4 Make sure that the connections on the Arbiter 4 chip are solid and not dry joints. It is easy to make dry joints that appear good but break very easy. If you get dry joins the chip will not work.
- Page 5 Here is the Arbiter 4.0 board soldered to the Xbox One Board. Attach the wires for the RT, R3, LED, SIG, L3 and LT pads. Thank you for buying from www.headshotcontrollers.co.uk – UK Official Distributor of the Arbiter Chipset.
- Page 6 Note that for the RT and LT connections, the bottom pin of the resistor (left) and capacitor (right) are joined, so you are ok to connect the wire going over both pins like we do. Thank you for buying from www.headshotcontrollers.co.uk –...
- Page 7 Once done build up and test. The controller must be synchronised and connected to an Xbox One console before it will work. Once connected the guide LED should be solid on. Now tap the sync button and the LED should flicker rapidly several times. If that works you are ready to test based on the User Manual If you get no response at all, check the connections are good and not dry.
