- Page 1 ARKIVE_EFFECTS_ The Dust Collector User’s Manual version 1.0 April 2020...
-
Page 2: Table Of Contents
The Dust Collector INDEX Introduction — 3 Overview — 4 — 4 Side — 5 Back — 5 Effects — 6 LFOs 1 & 2 — 6 Tape Saturations 1 & 2 — 7 Spring Reverb — 8 Delay — 9 Phaser —... -
Page 3: Introduction
The Dust Collector INTRODUCTION Finegear is proud to present _, a arkive effects curated series of effects designed for sonic experimentation. The Dust Collector is the first of the series, aiming to honor and expand upon the history of experimentation in music, shaking some of the dust that has settled on the 1970’s. -
Page 4: Overview

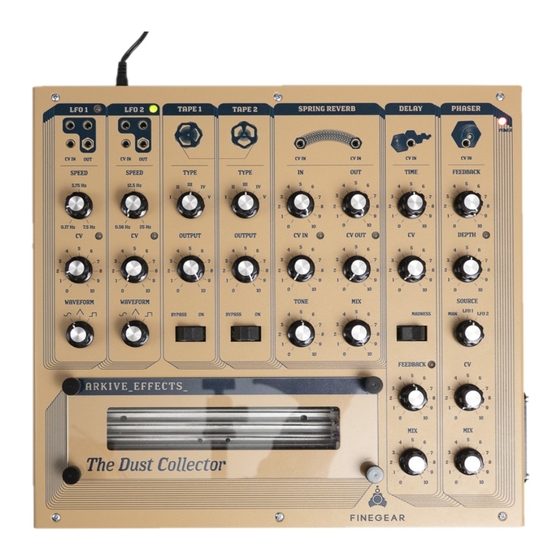

The Dust Collector OVERVIEW ❸ Spring reverb ❺ Phaser ❶ 2x VC LFOs ❹ Delay ❻ Reverb spring tank, with a ❷ 2x Tape saturations removable plexi cover. User’s Manual... -
Page 5: Side
The Dust Collector OVERVIEW Side ❼ Phaser LDRs with removable plexi cover B ack ❶ Phaser input and output ❹ Spring reverb input and output ❼ Power supply connector (5 mm ❷ Delay input and output diameter, 2.5 mm pin) ❺... -
Page 6: Effects
The Dust Collector EFFECTS LFOs 1 & 2 ❶ Speed: The two LFOs included in the Dust Sets the speed of the LFO. The two Collector are identical, except LFOs have different ranges in for the speed ranges, which differ order to allow as many modulation to broaden the sonic possibilities. -
Page 7: Tape Saturations 1
The Dust Collector EFFECTS Tape Saturations 1 & 2 ❶ Type: The two “tape” saturations were included to help spice or dirty up Sets the type, i.e. intensity of the sounds before or after passing saturation effect. The further the type through the other effects. -
Page 8: Spring Reverb
The Dust Collector EFFECTS Spring Reverb ❽ Output VCA CV Besides having the classic spring modulation indicator: tank sound, the spring reverb was integrated into the Dust Collector Bi-colour LED providing visual design to allow extensive interaction: feedback of the output VCA’s CV input’s •... -
Page 9: Delay
The Dust Collector • EFFECTS Delay ❶ Time: The included delay takes pride in its Sets the module's delay time. dirty and raunchy sound, as well as ❷ Feedback: in its modulation potential. It has a temper and you can modulate it! Sets the amount of output signal The Dust Collector delay circuit is to be fed back into the input. -
Page 10: Phaser
The Dust Collector EFFECTS Phaser If the switch is set on Man (manual The Dust Collector Phaser is based mode), the Depth (❷) knob itself on a classic model from the 1970s sets the Phaser’s depth, serving and it too is designed with extensive either as an offset for the CV modulation potential, using both of modulation, or for manually altering... -
Page 11: Specifications
The Dust Collector SPECIFICATIONS Conventions Dimensions While you play the Dust Collector, • Width : 341 mm please remember that: • Depth : 313 mm L Bi-colour LEDs are used to • Height : 57 mm (box only), indicate certain bi-polar CV 70.5 mm (including the knobs) values. -
Page 12: Signal Paths
The Dust Collector SIGNAL PATHS LFOs LFO OUT OUT 1 OUT 2 WAVEFORM CV IN SPEED CV INPUT OUT 3 SPEED Tape Saturations BYPASS SATURATION INPUT TAPE SATURATION SATURATION OUTPUT LEVEL TYPE Spring Reverb SPRING SPRING REVERB REVERB SPRING RECOVERY TONE OUTPUT INPUT... -
Page 13: Delay
The Dust Collector SIGNAL PATHS Delay MADNESS INSERT DELAY DELAY FEEDBACK OUTPUT INPUT DELAY DRY/WET CV IN CV IN DELAY TIME Phaser PHASER PHASER OUTPUT INPUT PHASER DRY/WET CV IN FEEDBACK CV IN LFO 1 LFO 2 DEPTH MODULATION User’s Manual... - Page 14 The Dust Collector User’s Manual written by Cristian Kreindler Founder & RD Finegear - evolving instruments more info at www.finegear.net layout & design by om* objet marginal Cluj-Napoca, Romania (c) April 2020...
