Summary of Contents for Retroelectronik The Supergun Pro Gamer

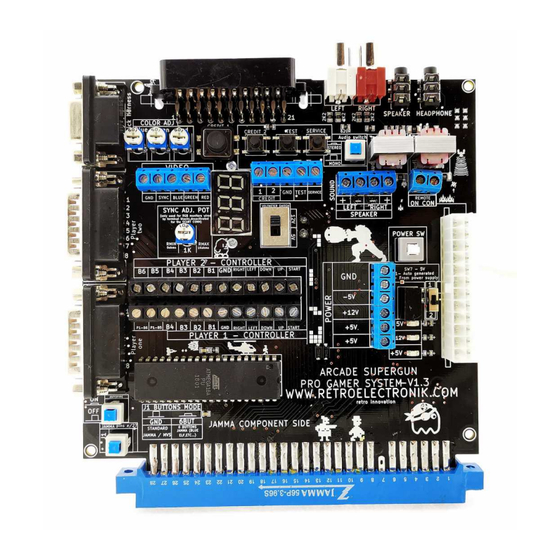

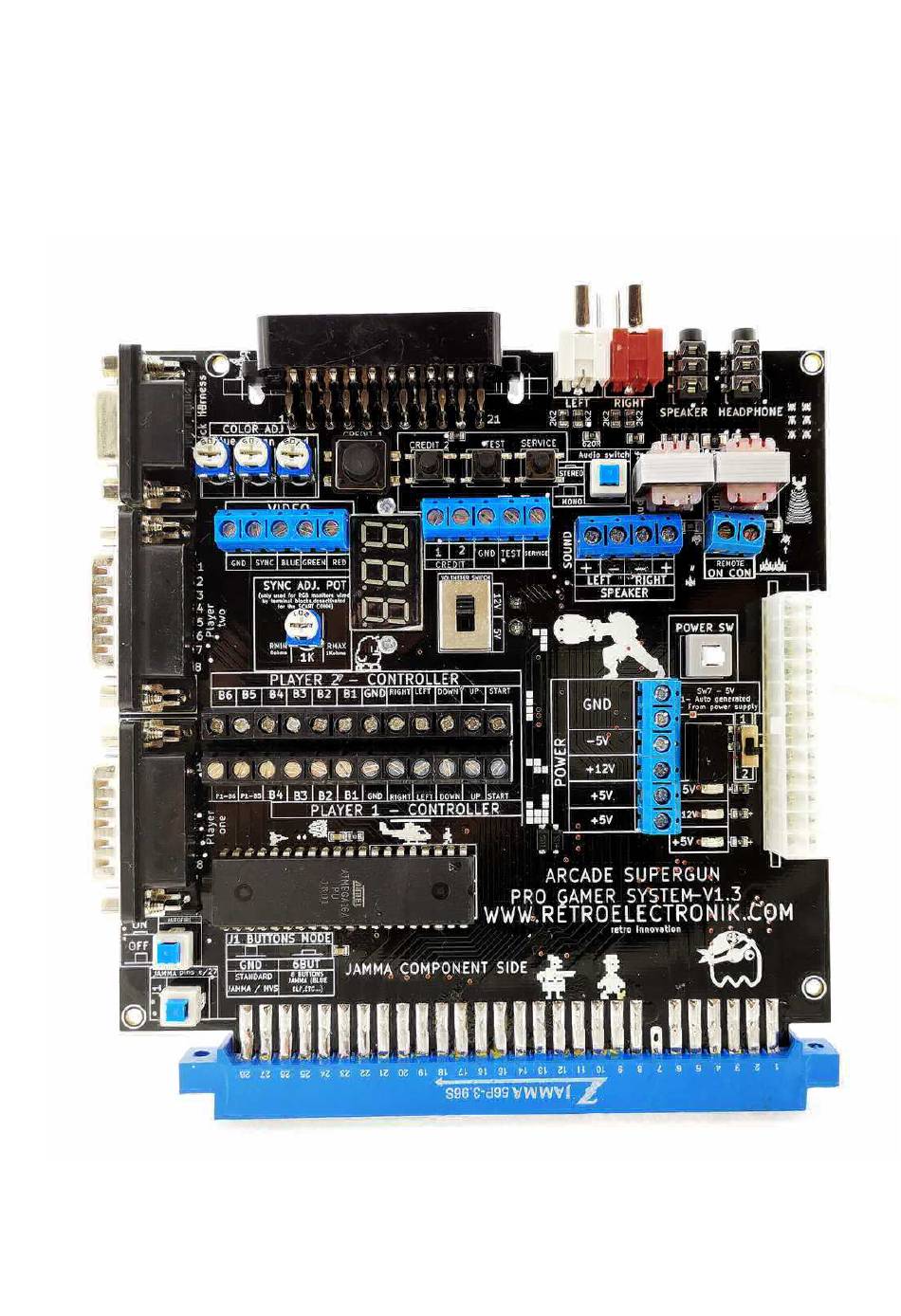

- Page 1 Retroelectronik Supergun Pro Gamer User Manual V1.1 beta...
-
Page 2: Table Of Contents
Table of Contents I- Short word from the creators............3 II – Compatibilities................3 II.1- Compatible PCBs..............3 II.2- Power supply compatibility.............4 II.3 Compatible controls..............4 III- Your Supergun in details..............5 III.1 – JAMMA CONNECTOR.............7 III.2 - Controls................7 III.3 - The Scart socket..............10 III.4-Audio part of the Supergun..........11 III.4.1 - Stereo audio Jack connector «Headphone»....11 III.4.2 - Stereo audio Jack connector «Speaker».......11... -
Page 3: I- Short Word From The Creators
I- Short word from the creators Thank you for your interest in the Retroelectronik Supergun Pro Gamer. Our small team has tried to design with this supergun the most powerful system available at the best value for money. The versatility of this system will allow you to run all JAMMA PCBs and much derivatives (JAMMA +, MVS, PGM IGS, Pandora's box, little elf, 60in1, etc.). -
Page 4: Ii.2- Power Supply Compatibility
II.2- Power supply compatibility Your supergun can be powered in different ways : Using a standard 20-pin or 24-pin ATX power supply thanks to its 24-pin ATX connector (also 20-pin compatible with better electrical charge distribution than a 20-pin connector, you deserve the best :) ... -
Page 5: Iii- Your Supergun In Details
III- Your Supergun in details Preliminary,the switchs : We designed the pro gamer to be as simple as possible without soldering or jumpers. Configuration can be done using 13 switches: The Mono / Stereo switch is used to adapt the audio output of the supergun to the type of your PCB. - Page 6 The P1 and P2 switches allow you to choose between standard JAMMA / MVS mode and extended 6-button JAMMA mode. The JAMMA 6 buttons mode is useful for some very recent cards like the famous Pandora's Box,it is dedicated to these «Xin1» PCBs with 6 buttons available.
-
Page 7: Iii.1 - Jamma Connector
III.2 - Controls The most important part of a supergun! We have worked here to give you total freedom. The supergun pro gamer has neo geo pads connectors but also terminal blocks. That way,you can for example integrate it in a customized arcade panel or an arcade cabinet;... - Page 8 : the megadrive / genesis to NEO GEO which makes it possible to connect on this supergun any pad / joystick SEGA megadrive / genesis 3 or 6 buttons on the DB15 connection of the Supergun Essential Retroelectronik. benefit from best "made...
- Page 9 In order to allow you to use these cards, we have added a Kick Harness Supergun Retroelectronik. This female connector allows you to add a link cable buttons 4, 5 and 6 of each player for cards that need it.
-
Page 10: Iii.3 - The Scart Socket
The video cabling is RGB (a Scart socket can be wired in composite or RGB, the RGB offers an image of much better quality because conveyed on 4 separate wires instead of one). -
Page 11: Iii.4-Audio Part Of The Supergun
Be careful, however, because this output is not protected by supergun isolation transformers. III.4.2 - Stereo audio Jack connector «Speaker» The jack connector "speaker" of the supergun pro gamer is non-amplified, stereo, format 3.5mm standard. It has a galvanic isolation to protect your jamma card... -
Page 12: Iii.4.4 - Mono / Stereo Audio Switch, Details Of Its Operation
JAMMA connectors directly into the terminal to adapt to the new stereo cards. The Supergun Pro Gamer avoids these tedious tasks; a simple switch allows you to switch from a mono card to a stereo card. -
Page 13: Iii.4.5 - Speaker Connectors Right And Left On Blocks
III.4.5 – Speaker Connectors Right and Left on blocks These two connectors are directly connected to the amp of your game card. The audio quality and the power of the amplification therefore depend directly on the integrated amplifier. This is the only amplified output of the supergun. However, we have provided the supergun progamer to output sound both... -
Page 14: Iii.5.2 - The Atx Connector Of The Supergun
maps (street fighter fighter's history, etc ... ) are not affected by these 5V adjustment problems. So for most gamers, an ATX power supply is definitely the best.However, because game cards consume a lot of power and your power supply must at least provide 12V and 5V (but also to universal -5V), most... - Page 15 Thanks to the built-in keys in the ATX standard, you can only connect it to the right place, here is a 20-pin ATX power supply connected to the supergun essential (the other Retroelectronik model which has exactly the same power connector.) To ensure maximum compatibility with the most power- hungry cards, the ideal is to use a power supply of 350 watts or more.
-
Page 16: Iii.5.3 - The On / Off Button And Its Deportation Terminal
Finally, note that just like for JAMMA, -5V tends to disappear from recent ATX power supplies. It does not matter if you want to use a map from the 90s to the present day but if you want to use an older card, it may require a -5V power supply;... -
Page 17: Iii.5.4 - Connection Of The Power Terminal Blocks
100% universal! The list of accessories available for supergun Retroelectronik is bound to grow rapidly. You would like an accessory that does not exist yet? Contact us! We are always looking for new projects and... - Page 18 We have left you want long nights of video game with the best of arcade Copyright © 2019 Retroelectronik all rights reserved – Retroelectronik is not affiliated in any way with or supported by Sega, SNK, Megadrive, genesis and Neo Geo are registered trademarks.
