LSVR:

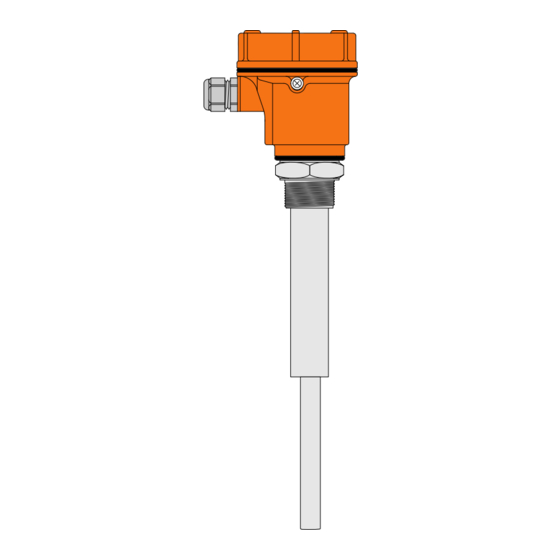

Vibrating Rod Level
Switch for Solids
Trumen Technologies Pvt. Ltd.
39 Mangal Nagar, Behind Sai Ram Plaza, Near Rajiv Gandhi
Circle, AB Road, Indore, MP 452 001, India
Phone: +91-731-497 2065
Instruction Manual
sensing matters
Customer Support
Phone: +91-731-656 2425
email: sales@trumen.in
email: support@trumen.in
web:www.trumen.in
®
Advertisement
Table of Contents
Summary of Contents for Trumen LSVR Series

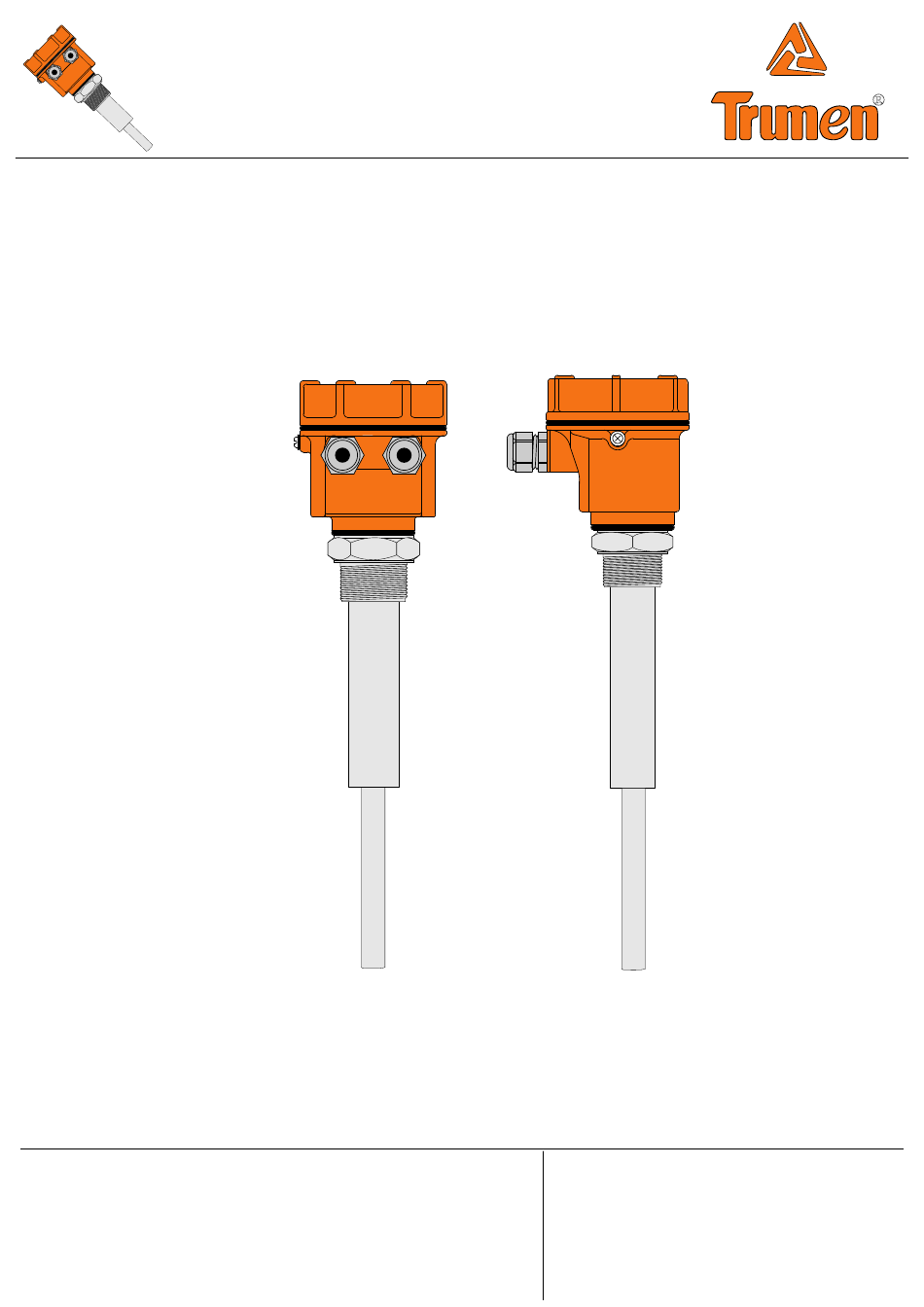

- Page 1 Vibrating Rod Level ® Switch for Solids sensing matters Instruction Manual Customer Support Trumen Technologies Pvt. Ltd. Phone: +91-731-656 2425 39 Mangal Nagar, Behind Sai Ram Plaza, Near Rajiv Gandhi email: sales@trumen.in Circle, AB Road, Indore, MP 452 001, India email: support@trumen.in Phone: +91-731-497 2065 web:www.trumen.in...
-
Page 2: Table Of Contents
® sensing matters List of content Page Operating Principle........................Technical Specification........................ Do's and Don'ts..........................Troubleshooting........................... Maintenance & Spares....................Annexure-1 Introduction - LSVR-UD (Order code EIUD / ERUD)........... Page1 controls & indicators, connection terminals, configuration switches......Page1 Page2 Operation Matrix - LSVR-UD (EIUD / ERUD)............... Electrical Connections - LSVR-UD (EIUD / ERUD)............ -
Page 3: Operating Principle
Amplitudes of vibration are above threshold when the rod is free to vibrate. When the material touches the rod, vibration stops as resonance gets disturbed. Amplitude of vibration, as sensed by the electronics falls below the threshold, material presence is thus detected by observing the amplitude of vibration. lsvr-manual-page01 www.trumen.in... -
Page 4: Technical Specification
NPT / BSP 1", 1¼", 1½", 2" etc Flanged : ANSI/JIS/DIN/ASA/custom Extensions Tube SS 304, SS 316, SS 316L Material & Length 250mm to 3,000mm Power Consumption 0.5 VA max. Specifications are subject to change without prior notice lsvr-manual-page02 www.trumen.in... -
Page 5: Do's And Don'ts
10. Never climb either by gripping or stepping over either the rod sense or its aluminium housing 11. Obeserve other safety precautions as required at the place of application lsvr-manual-page03 www.trumen.in... -
Page 6: Troubleshooting
Extension Set the electronics properly to its position. Match the mounting screw hole of electronics with that of enclosure and fix the screw. Sense For mechanical issues please send the entire device back to Trumen. lsvr-manual-page04 www.trumen.in... - Page 7 ON Position Failsafe means alarm is same as power failure. OFF Position Turn on for underflow detection (min. failsafe) Keep turned off for overflow detection (max. failsafe) Example of Switch in On and Off Positions lsvr-manual-annexure-1 www.trumen.in Page 1...
-
Page 8: Operation Matrix - Lsvr-Ud (Eiud / Erud)
4 5 6 7 8 9 normal or covered with min failsafe healthy material Relay ON Relay OFF Switch no. 4 status. normal or healthy alarm contacts. is on, failsafe contacts. (due to power low/minimum. failure) lsvr-manual-annexure-1 www.trumen.in Page 2... -
Page 9: Electrical Connections - Lsvr-Ud (Eiud / Erud)
15... 80 VDC min failsafe 15... 260 VAC L1 N 1 2 3 4 5 6 7 8 9 Proper connection to supply earth terminal (3) and the external earth terminal (screw) is must. lsvr-manual-annexure-1 www.trumen.in Page 3... - Page 10 Failsafe means alarm is same as power failure. ON Position OFF Position Turn on for underflow detection (min. failsafe) Keep turned off for overflow detection (max. failsafe) Example of Switch in On and Off Positions lsvr-manual-annexure-2 www.trumen.in Page 1...
-
Page 11: Operation Matrix - Lsvr-Ar (Eiar)
I leak normal or covered with I L(max) = 250mA I leak ≤ 0.1mA min failsafe healthy material. Normal or healthy Alarm output. Switch no. 4 status. output. (due to power is on, failsafe failure) low/minimum. lsvr-manual-annexure-2 www.trumen.in Page 2... - Page 12 5 sec dry delay wet delay failsafe PNP (alarm=float) 12 to 60V DC 1 2 3 4 5 6 7 8 9 Proper connection to supply earth terminal (3) and the external earth terminal (screw) is must. lsvr-manual-annexure-2 www.trumen.in Page 3...
- Page 13 Failsafe means alarm is same as power failure. ON Position OFF Position Turn on for underflow detection (min. failsafe) Keep turned off for overflow detection (max. failsafe) Example of Switch in On and Off Positions lsvr-manual-annexure-3 www.trumen.in Page 1...
- Page 14 Relay OFF alarm normal or covered with min failsafe or healthy contacts. contacts. (due to material. healthy Switch no. 4 power failure) status. is on, failsafe low/minimum leak I L(max) = 250mA I leak ≤ 0.1mA lsvr-manual-annexure-3 www.trumen.in Page 2...
- Page 15 15... 260V AC 15... 60V DC L1 N less than PNP o/p 60VDC only 1 2 3 4 5 6 7 8 9 Proper connection to supply earth terminal (3) and the external earth terminal (screw) is must. lsvr-manual-annexure-3 www.trumen.in Page 3...
- Page 16 Failsafe means alarm is same as power failure. Turn on for underflow detection (min. failsafe) Keep turned off for overflow detection (max. failsafe) ON Position OFF Position Example of Switch in On and Off Positions lsvr-manual-annexure-4 www.trumen.in Page 1...
- Page 17 (failsafe low / 1 2 3 4 minimum). Normal output status shows min failsafe normal if rod is Green healthy Series relay Series relay dipped in material at off (due to low switch point. power failure) lsvr-manual-annexure-4 www.trumen.in Page 2...
-
Page 18: Electrical Connections - Lsvr-Ar (Eiar)
2 wire AC series Relay min failsafe (<5mA holding current) 18... 260V AC 1 2 3 4 5 6 7 8 9 Proper connection to supply earth terminal (3) and the external earth terminal (screw) is must. lsvr-manual-annexure-4 www.trumen.in Page 3... - Page 19 ON Position Failsafe means alarm is same as power failure. OFF Position Turn on for underflow detection (min. failsafe) Keep turned off for overflow detection (max. failsafe) Example of Switch in On and Off Positions lsvr-manual-annexure-5 www.trumen.in Page 1...
-
Page 20: Operation Matrix - Lsvr-Dl (Eidl)
When switch no. 4 is on (failsafe low / 1 2 3 4 minimum). output status shows Normal min failsafe normal if rod is L = 16mA dipped in material at low switch point. lsvr-manual-annexure-5 www.trumen.in Page 2... -
Page 21: Electrical Connections - Lsvr-Dl (Eidl)
8mA ± 1mA (alarm) 16mA ± 1mA (normal) 12 to 60V DC 1 2 3 4 5 6 7 8 9 Proper connection to supply earth terminal (3) and the external earth terminal (screw) is must. lsvr-manual-annexure-5 www.trumen.in Page 3...
