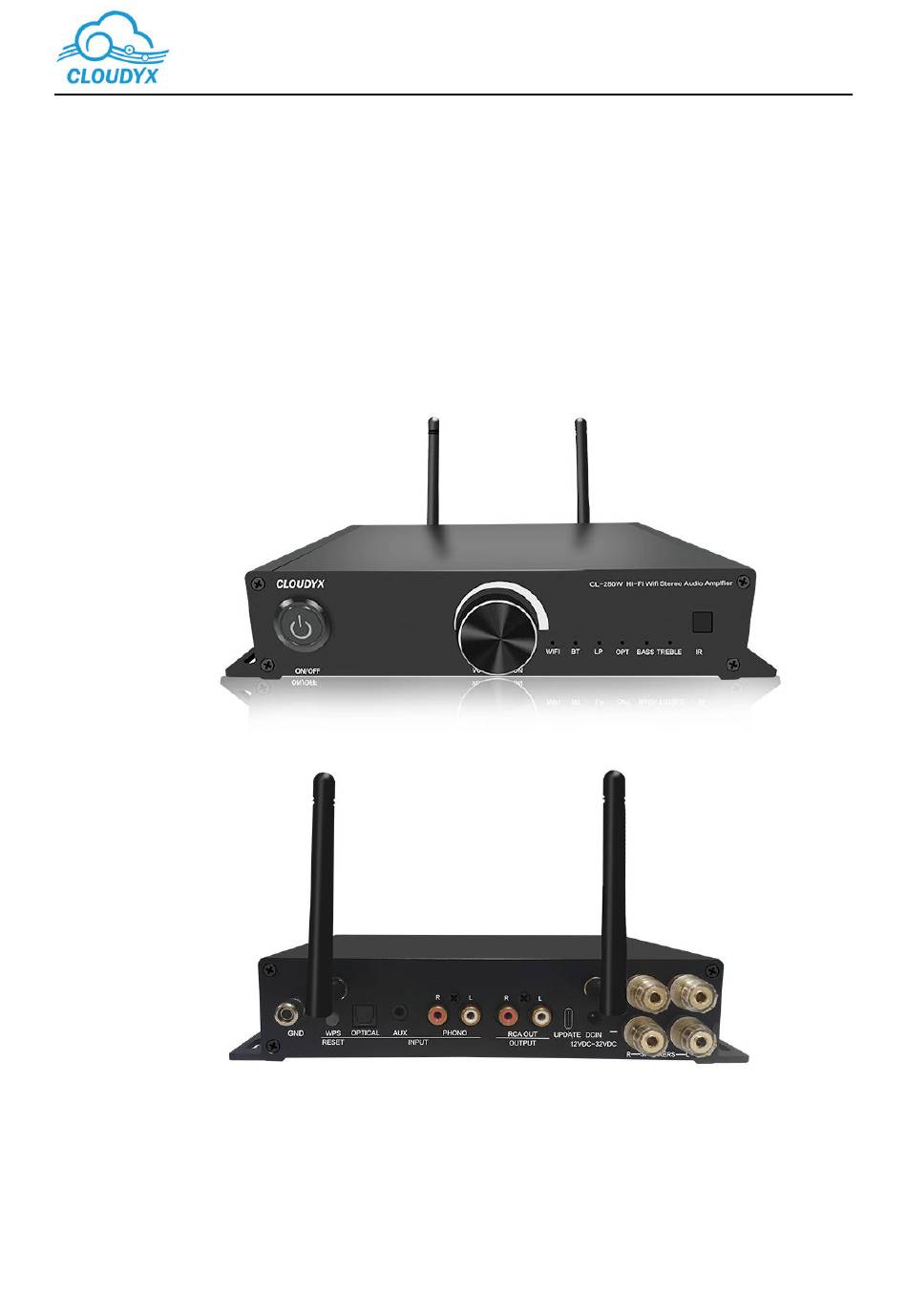

Shenzhen Cloudecho Audio Co. Ltd
Hi-Fi Wifi Stereo Audio Amplifier
CL-250W Instruction manual
You are welcome to choose a high-fidelity WIFI stereo audio amplifier! In order to use the device
correctly, please read the instruction manual carefully before use. We will wholeheartedly provide
you with better products and services.
1
Advertisement
Summary of Contents for Cloudyx CL-250W
- Page 1 Shenzhen Cloudecho Audio Co. Ltd Hi-Fi Wifi Stereo Audio Amplifier CL-250W Instruction manual You are welcome to choose a high-fidelity WIFI stereo audio amplifier! In order to use the device correctly, please read the instruction manual carefully before use. We will wholeheartedly provide...
-
Page 2: Technical Parameter
Shenzhen Cloudecho Audio Co. Ltd CL-250W power amplifier has 5 modes: WiFi mode, Bluetooth mode, Vinyl mode, Aux in mode, and Optical fiber mode. * Function Introduction ● Support WiFi 2.4G & 5G ● Support Bluetooth 5.0 ● Support Microphone ●... - Page 3 Shenzhen Cloudecho Audio Co. Ltd * Structure diagram and description (Front panel) 1. Power switch 2. Mode Control / Volume Treble Bass Control 3. WIFI mode indicator 4. Bluetooth mode indicator 5. Phono / AUX mode indicator 6. Optical fiber mode indicator 7.
- Page 4 Shenzhen Cloudecho Audio Co. Ltd (Rear panel) 10. External ground wire 11. Pairing / Reset button 12. Optical fiber input interface 13. 3.5 Analog input interface 14. Phono MM input interface 15. Subwoofer output interface 16. Update interface 17. DC power interface 18.Right channel power output 19.Left channel power output 20.
-
Page 5: Power On And Reset
Shenzhen Cloudecho Audio Co. Ltd (Remote control) * Instruction 1. Power on and reset (1) When power is on, the system has an initialization process. During the initialization process, the indicator light is in a running state. After the initialization is completed, the first mode entered by the device is the mode memorized before the last power-off, and the volume, high and low bass will also be set to the size before the last power-off;... - Page 6 Shenzhen Cloudecho Audio Co. Ltd CL-250W device has 5 modes: WiFi mode, Bluetooth mode, Vinyl mode, Aux in mode, and Optical fiber mode. Click the button on the front panel to switch modes. 2.1 WiFi mode The WiFi indicator is flashing fast (100ms on and 100ms off) when the power is just turned on, and the WiFi light flashes slowly (500ms on and 500ms off) when the startup is completed and not connected, and is on when connected.
- Page 7 Shenzhen Cloudecho Audio Co. Ltd Open MUZO Pod App, according to the APP prompt, after searching for the name of the audio amplifier that needs to be networked, select WiFi in the same LAN as the mobile device, and enter the WiFi password to configure the amplifier.
-
Page 8: Bluetooth Mode
Shenzhen Cloudecho Audio Co. Ltd （Figure 4） （Figure 5） （Figure 6） 2.2 Bluetooth mode Bluetooth and WiFi belong to the same module, and Bluetooth will also have a startup process when it is powered on. During this process, the Bluetooth indicator flashes quickly (100ms on and 100ms off). - Page 9 Shenzhen Cloudecho Audio Co. Ltd Super slow flashing (1s on, 1s off) Mute Table 2 Bluetooth indicator and its corresponding working status If you want to disconnect Bluetooth, hide Bluetooth or release Bluetooth, you can press the RESET/WPS button briefly. 2.3 Vinyl mode Click the Mode button, the LP indicator lights up and enters the vinyl mode.
- Page 10 Shenzhen Cloudecho Audio Co. Ltd 3.2 Bass adjustment Long press the Mode button, and when the Bass light is on, it means that the knob can adjust the bass level. At the same time, the number of lights indicates the volume of the bass. The greater the number of lights, the stronger the bass.
- Page 11 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
