OPERATION
MANUAL
Inverter DC MMA Welder

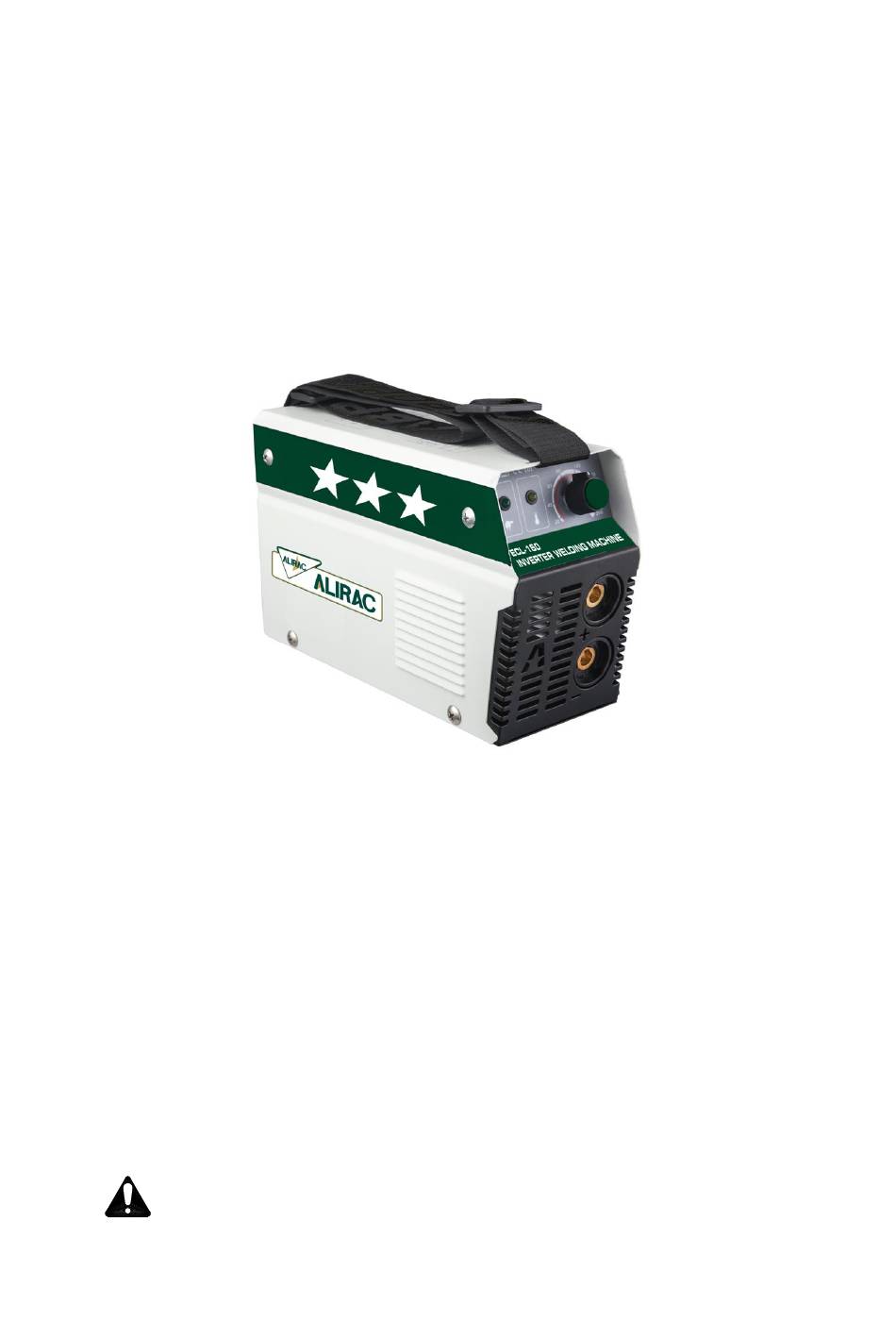

ECL-160
IMPORTANT: This operational manual kindly show you how to install, debug,
operate and maintain the welder. Read this instructions carefully and you will
understand how to use it to reduce the risk of error operation.
Warning!
This machine should be operated and maintained by full-time staffs or professionals.
You are not allowed to operate and repair it unless read this manual in advance!
1
Advertisement
Table of Contents
Summary of Contents for Alirac ECL-160
- Page 1 OPERATION MANUAL Inverter DC MMA Welder ECL-160 IMPORTANT: This operational manual kindly show you how to install, debug, operate and maintain the welder. Read this instructions carefully and you will understand how to use it to reduce the risk of error operation.
-
Page 2: Table Of Contents
CONTENT 1 Brief Introduction ----------------------------------------------------------------------------------------- 3 2 Safety --------------------------------------------------------------------------------------------------------- 4 2.1 Self-Protection --------------------------------------------------------------------------------------------- 4 2.2 Cautions ---------------------------------------------------------------------------------------------------- 4 2.3 Safety Precaution for Installation and Location ------------------------------------------------------ 4 2.4 Security Check -------------------------------------------------------------------------------------------- 5 3 Technical Description ------------------------------------------------------------------------------------- 6 3.1 Environment ----------------------------------------------------------------------------------------------- 6 3.2 Input Power ------------------------------------------------------------------------------------------------ 6 3.3 Equipment Principle -------------------------------------------------------------------------------------- 6 3.4 Equipment Structure -------------------------------------------------------------------------------------- 7... -
Page 3: Brief Introduction
1 Brief Introduction ECL welder uses imported IGBT and fast recovery diodes as main electric components. It is supplemented by a specially developed main PCB board. In addition, the uniform regulation of welding current has been designed to guarantee the arc reach good welding process adaptability. -
Page 4: Safety
2 Safety 2.1 Self-Protection * The user must comply with occupational safety and health rules and wear appropriate labor protective equipment. Try to avoid injury on eye and skin. * It is safe to cover your head with face mask while welding, only do the observation on the arc through the window of the mask. -
Page 5: Security Check
generated while welding. * It is should be equipped in the open air where there is no direct sunlight, anti-rain, temperature range from -10℃ to +40℃ and low humidity place. * 50cm space is needed to ensure good ventilation. * No metal impurities are tolerant inside the welder. * In some areas, there is no severe vibration. -
Page 6: Technical Description
or agent immediately to acquire the service and support skills when users do not have the ability to repair it. 3 Technical Description 3.1 Environment * Working temperature: -10℃~40℃. * Transportation and storage: -25℃~55℃. * Relative air humidity: 40℃≤50%; 20℃≤90%. * The dust, acids, corrosive gases and substance in the ambient air must be lower normal level except those from welding process. -
Page 7: Equipment Structure
3.4 Equipment Structure The ECL Inverter DC MMA Welder uses portable cabinet structure: the upper part of front panel has been equipped with welding current adjustment knob, power indicator (green), abnormal indicator (yellow). The output terminal is fitted with quick connector both “+”... -
Page 8: Standard
3.6 Standard * EN 60974-1: Arc Welding Machine Standards * JB / T 7824: Technical Conditions of Inverter Arc Welding Rectifier * GB 4208: Protection Class (IP Code) 3.7 Symbol Chart Note that only some of these symbols will appear on your model. Hertz (cycles / sec) Frequency Dangerous Voltage... -
Page 9: Installation
4 Installation 4.1 Connection * The welder should be placed in dry and dusty surrounding where there is no corrosive chemicals, flammable, explosive gases. * Avoid direct sunlight and rain. And maintain the ambient temperature ranging from -10℃ to 40℃. * The space of 50cm should be left around the equipment. -
Page 10: Workpiece Connection
Connect the quick plug with electrode holder to the positive terminal and then tightened them up clockwise. 4.4 Workpiece Connection Connect the quick plug with earth clamp to the negative terminal on the front panel below. And then tighten them up. Access the earth clamp to the workpiece. Warning! It is forbidden to connect the workpiece to the welder with iron or other poor conductors. -
Page 11: Procedure
NOTES: When the welder works for a long time, the high temperature indicator will light. This means the inside temperature has exceeded its standard. And you must turn off the power immediately for a period until it recovers. * You have to wear canvas overalls and face mask to prevent from arc light and heat radiation. -
Page 12: Maintenance
Warning! The welding slag should not be removed until it is cooled down. Don’t point it at the other people while knocking on the slag incase that it will do harm with pop-up slag. 5.4 Maintenance * The major difference between inverter arc welder and traditional welder is the inverter welder has lots of advanced electronic components. -
Page 13: Basic Troubleshooting
dust. And don’t meddle with the connections and components when doing this work. 6 Basic Troubleshooting Description Possible Cause Remedy Abnormal indicator ventilation leads Improve ventilation overheating protection conditions High environmental temperature Automatic recovery after decreasing Exceed rated duty cycle Replace potentiometer Current knob broken Potentiometer damaged... -
Page 14: Parts List
7 Parts List Name belt machine cover indicator potentiometer knob electrolytic capacitor quick connector bottom panel main transformer fast recovery diode2 Radiator1 Radiator2 Radiator3 rectifier IGBT electrolytic capacitor PCB board fan cover power switch... -
Page 15: Interconnection Diagram
NOTES: The above components listed are just for your reference. If something different with the real machine, kindly follow the real one 8 Interconnection Diagram... -
Page 16: Accessories
Circuit Schematic of ECL Welder (Figures for reference are subject to change without notice.) 9 Accessories Description Qty. ECL Welder 1set Operator’s Manual Electrode Holder Earth Clamp Face Mask with Filter Brush & Hammer NOTES: All above mentioned are based on the ordering contact unless otherwise agreed by the parties.
