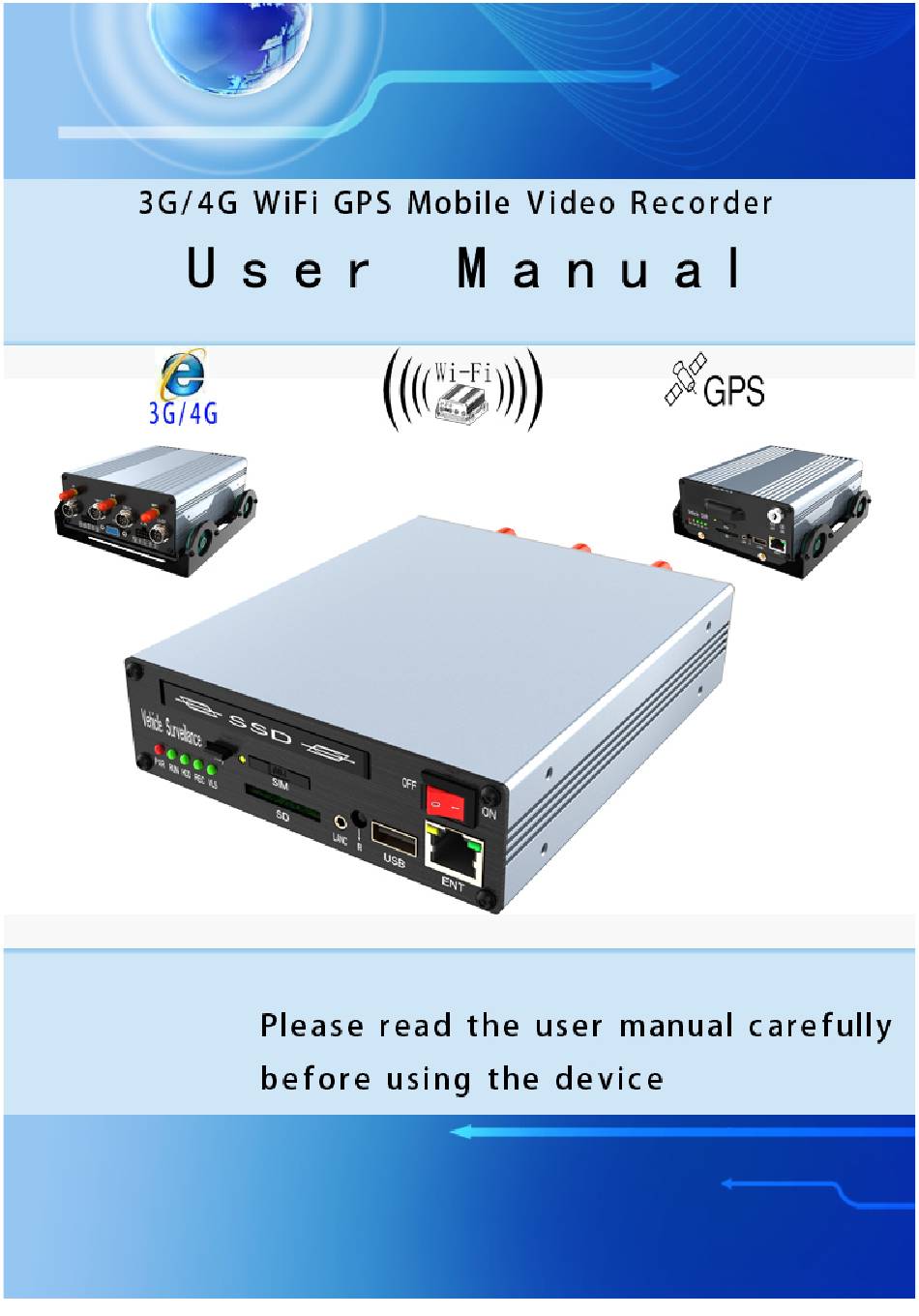

MRB H4SSD Series User Manual

3g/4g wifi gps mobile video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H4SSD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MRB H4SSD Series

  • Page 2 Thank you for buying our product. Please read the user manual carefully to ensure that you can use the item correctly and safely. This user manual is available for one channel, two channels and four channels Mobile DVR. Please keep this manual handy in case you can find it easily for future read. The Main Purpose Help the investigation of the scene for traffic accident Gather evidence for violent crimes (blackmail and robbery)

  • Page 3: Table Of Contents

    7、 Please do NOT get the gate of airiness heat exchange closed. 8、 Please leave the device far away from hot and high temperature environment. 9、 Install the device with the accessories coming with it. 10、 Please take care when moving the device, make sure of security, and avoid being damaged by dropping from high place.
  • Page 4 5. Structure Introduction of the Product Appearance ..................... 25 5. Front Panel ..............................25 5.2 Rear panel ............................... 27 6 . Installation instructions ............................29 6.1. Humidity requirements .......................... 29 6.2 Installed position ............................. 30 6.3 Equipment safety ............................ 30 6.4 Power connection: ...........................

  • Page 5: Product Introduction

    Memory Cards. It's make company or personal very easy to manage the vehicles. The DVR may look simple in its exterior design, provides powerful auto black box features, installation flexibility and high reliability. 1.2 Main Paramet er s Suitable for: H4SSD series, H8SSD series, H4HDD series, H8HDD series Items Parameters...
  • Page 6 Audio compression G711A Image compression H.265，Variable stream（VBR） / Fixed stream (CBR) CIF/D1/720P/1080P optional, default 1080P（1920*1080） Video format CIF: 128kbps ~ 5mbps，10 levels optional，default 4 level(512kb)， Highest:10 level, lowest 1 level D1: 128kbps ~ 5mbps，10levels optional，default 5 level (768kb)， Highest:10 level, lowest 1 level 720P:128kbps ~ 5mbps，10 levels optional，default 7 level (2mb)，...

  • Page 7: Main Functions Of The Product

    1.3 Main Functions of the Product Function Functions description 1、 Support four video mode: Starting up recording、 time recording、 motion detection recording、 Alarm recording. 2、 Support 4 channel D1 or synchronous 4 channels 1080P recording. Recording 3、 Support PAL or NTSC system, Automatic recognition pattern. 4、...

  • Page 8: 2-A1:Ssd Video Recorder

    2-A1:SSD Video recorder 2-A.1 DVR specification and anti-theft box specification（Unit: MM）...
  • Page 9 (SSD Video machine specification drawing) (Specification drawing of anti-theft basket)

  • Page 10: 2-A 2. Install Ssd Video Recorder

    2-A 2. Install SSD video recorder Punch holes according to the installation size drawing and fix the base of the anti-theft basket （Unit: MM） （Hole size reference drawing） （Screw in fixed）...

  • Page 11: Place The Device On The Base Of The Rim

    2.2 Place the device on the base of the rim...

  • Page 12: Fasten And Lock The Top Cover Of The Anti-Theft Basket According To The Direction

    2.3 Fasten and lock the top cover of the anti-theft basket according to the direction...

  • Page 13: 2-A 3. Installing The Hard Disk

    2-A 3. Installing the hard disk 3.1 Open the lock and remove the rim in the correct direction...
  • Page 14 3.2 Point the 2.5-inch SSD SATA hard in the direction of the hard disk entry and insert it directly until the hard disk is flat with the panel...

  • Page 15: Fasten The Top Cover Of The Guard Basket And Lock It

    3.3 Fasten the top cover of the guard basket and lock it...

  • Page 16: 2-A 4 Take Out The Hard Disk

    2-A 4 Take out the hard disk Note: only when the disk is turned off can the disk be taken. Otherwise, the company will not be responsible for illegal shutdown and damage of the hard disk caused by the disk being taken without power off. 4.1 Open the lock with the key, then press the arrow to open the top cover 4.2 Press the down arrow button with your hand, and the hard disk ejects 10~15CM...
  • Page 17 4.3 When the hard disk ejects 10~15CM, the hard disk can be removed 2-B Vehicle Hard Disk Video Recorder 2-B 1.1 Diagram Specification （Unit: MM）...

  • Page 18: 2-B 2. Mdvr Installation

    2-B 2. MDVR Installation 2.1 Set the main unit and the shockproof mount apart Unfasten the two main screws of the DVR with a screw driver and remove the shockproof mount. 2.2 Install the shockproof mount Please installed the shockproof mount on an appropriate place (under the front Passenger’s seat or other side / wherever convenient) （Unit: MM）...

  • Page 19: Install The Dvr Into The Shockproof Mount Again, And Fixed The Screws

    2.3 Install the DVR into the shockproof mount again, and fixed the screws. 2.4 Step 4 Lock the two screws against the hole of the screw...

  • Page 20: 2-B 3. Hard Disk Installation

    2-B 3. Hard disk installation 3.1 Remove the HDD case from the DVR Turn the key to off state, and remove the HDD case. 3.2 Take the SATA connector out from the HDD Case Remove the 4 screws on the back side of the hard drive case, then take the SATA connector out from the hard drive case.

  • Page 21: Connect The Sata Board With The Sata Hard Disk

    3.3 Connect the SATA board with the SATA hard disk. 3.4 Put the SATA hard disk into the shockproof case Note: The hard disk must be float inside the bracket of HDD Case. 3.5 Fasten the hard disk tightly by another 4 screws. Install the connector back to the back side of hard drive case;...

  • Page 22: Cables Function And Accessories Instruction

    4. Cables function and accessories instruction 4.1 Power supply cables. Yellow line is the ignition signal line, the red line is the positive pole of the power supply, and the black line is the negative pole of the power supply. Color Description Positive (connect it to the “+”...
  • Page 23 Special made for mini cameras, (8-ch )6PIN, one cable for four cameras; B: Cable for aviation connector cameras: with video and audio. (4-CH)6PIN, one cable for two cameras; with video and audio. (8-CH)6PIN, one cable for four cameras...
  • Page 24 A . C: Cables for cameras with BNC connector: Yellow one for video, black one for power and the white one is for audio. One cable for two cameras Mark Description VIN (PIN1) Video input (yellow) AIN (PIN2) Audio input (white) Power output “...

  • Page 25: Data Cable (Use For Data Transferred: From Hdd To Pc)

    Identify description 1、 sensor 1 sensor (alarm), such as reversing line screen switch, default steering 2、sensor 2 sensor (alarm), such as left switch screen, default to turn 3、sensor 3 sensor (alarm), such as right turn screen switch, default reverse 4、sensor 4 sensor (alarm), default alarm 5、...
  • Page 26 (SSD Video front panel） (HDD Video front panel） ① Equipment indicator light1.POW，2.RUN，3.ALM，4.VLS，5.REC Definition of LED indicator: 1.POW, the indicator light is always on (red), indicating that the power supply is on. 2.RUN, after successful ignition, the running light is bright (green).

  • Page 27: Rear Panel

    3.ALM(alarm), the light will be on after any alarm is triggered (green). 4.VLS, this light is always on (green) when any path video is lost. 5.REC(video light), which is always on during video recording (green). ②：remove the hard disk box socket; ③：SD card slot;...
  • Page 28 (HDD Video front and rear panel） Back view...

  • Page 29: Installation Instructions

    ② POWER IN DC 9V-36V； ② IO input； ③ CAM3-4(4CH），CAM1-2-3-4 (8CH）Audio, video input; ④ VGA ⑤ CAM1-2(4CH），CAM5-6-7-8 (8CH）Audio, video input; ⑥ AV_IN（8CH special） ⑦ AV_OUT，Audio, video input; ⑧ WIFi antenna ⑨ GPS antenna ⑩：4G antenna 5.3 Remote Control 6 . Installation instructions 6.1.

  • Page 30: Installed Position

    1) Install the equipment on a dry environment,; Avoid places where damp, water drop or water spray etc. 2) Don't touch the device with wet hand 6.2 Installed position 1) To extend the lifetime of the equipment, please try to install the equipment in vehicles where with weaker vibration, such as the back seat of the drivers;...

  • Page 31: Dvr Startup And The User Login

    7.1: DVR startup and the user login Installed the device according to the installation instruction in the actual application environment, and checked whether the power supply and other external devices connection well or not. If no problem, then start up the DVR. Booting screen shows as 7-1 (No cameras). After startup, the screen shows quad monitor screen.
  • Page 32 Figure: 7-3 Explanation: 1. Device Number: Users shall be setting serial number for each device, the serial number will automatically displayed on the top of screen when user login the device. User must be ensure that the device number is unique in the 3G platform server (The server will recognize whether the device is legal or not based on the device number).

  • Page 33: System Settings

    Figure: 7-4 1. All of the setting sub-menu must be saved once operation, otherwise the setting is invalid. 2. Press the numeric key in the remote control to input numbers. Letters input shall be completed by the soft keyboard, Press "RETURN" key backs to the sub-menu. 7.2：...

  • Page 34: 1：Basic Settings

    Figure: 7-5 7.2-1： Basic settings The main function of the basic setting is to set up the system time and some of the basic properties. As shown in Figure 7-6. Figure: 7-6 1. Date format: press “ENTER”to switch the date format (Y/M/D or D/M/Y) 2.
  • Page 35 Figure: 7-7 1. Display style: the display style of the screen when the system is started can be set, including four screens, single channel amplification, etc. 2. Output mode: VGA/HDMI, CVBS two modes, the device at the same time two output modes, VGA, aviation head CVBS.
  • Page 36 Figure: 7-8 1. Switch mode: ignition mode/timing mode/delay mode. Press "ENTER" to switch after selection. Ignition mode means that the DVR will start automatically after the car starts, and this operation is recommended as the preferred default. Timing mode refers to the mode of starting and shutting down at the time set by the user.

  • Page 37: Recording Settings

    Figure: 7-9 7.3: recording Settings Video Settings are divided into four menus: general Settings, channel Settings, timing Settings. MDVR needs to be set up to achieve the best recording effect. By default, the host can record after starting up. However, in order to better play the recording function of the host, relevant parameters can be set and modified.

  • Page 38: 1: General Settings

    7.3-1: general Settings General setting interface is shown in figure 7-11: Figure: 7-11 1. Video recording mode can be selected as boot recording/alarm recording/timing recording. 2. Alarm recording delay, alarm recording delay packaging time after triggering the alarm 3. Video packaging time: the recording time is 15 minutes, 30 minutes, 45 minutes and 60 minutes respectively.
  • Page 39 Figure: 7-12 Resolution: 1080P/720P/D1/CIF; Frame rate: adjustable from 1 to 25 frames, full frame rate 25 frames for real-time video, (N system 25 frames, P system 30 frames); Picture quality: 1-10 levels are optional, the default is 9 levels of picture quality, of which level 1 is the lowest and level 10 is the highest;...

  • Page 40: Network Settings

    Figure: 7-13 1. Each day: if the recording schedule for each day is set, the recording schedule from Monday to Sunday will be invalid 2. Monday to Sunday: if no "everyday" video schedule is set, you can set a video schedule for one day each week After the recording schedule is set, the recording will start or stop within the specified time of the plan.

  • Page 41: 1: Server: Service Ip And Port Shall Be Set For Network Data Exchange

    Figure: 7-14 7.4-1: server: service IP and port shall be set for network data exchange; Figure: 7-15 7.4-2: sub-bitstream: the bitstream size and frame rate image quality can be set according to local network conditions.

  • Page 42: 3: Wireless Network: Remote Equipment And Playback And Video Recording Through Wireless Network

    Figure: 7-16 7.4-3: wireless network: remote equipment and playback and video recording through wireless network. Figure: 7-17 7.4-4: Ethernet: remote device and playback through RJ45, video recording.

  • Page 43: 5：Wifi Network: Remote Devices And Playback, Video Recording Via Wifi Network

    Figure: 7-18 7.4-5：WIFI Network: remote devices and playback, video recording via WIFI network. Figure: 7-19 7.4-6： FTP Network: remote devices and playback, recording via FTP network.

  • Page 44: Alarm Settings: Io Alarm, Speed Setting, Temperature Setting, Motion Detecloss, Tion, Video Excellent Settings

    Figure: 7-20 7.5：Alarm Settings: IO alarm, speed setting, temperature setting, motion detecloss, tion, video excellent Settings Figure: 7-21 7.5-1: IO alarm IO setting is mainly for IO level alarm. The device supports 4-channel IO input and can set high-low level trigger alarm for each IO channel. The sensor setting interface is shown in figure 7-22:...

  • Page 45: 2: Speed Setting (Available Only With Gps)

    Figure: 7-22 1. Independent alarm setting: it can make some IO alarm independent alarm 2. Trigger level: high bottom level is optional, default high level 3. Set alarm recording: alarm recording file can be generated after triggering when setting alarm 7.5-2: speed setting (available only with GPS) Figure: 7-23...

  • Page 46: 3：Temperature Setting (Customized User)

    7.5-3：Temperature setting (customized user) Figure: 7-24 7.5-4：Video Loss...

  • Page 47: 5：Oil Volume Setting (Customized User)

    Figure: 7-25 7.5-5：Oil volume setting (customized user) Figure: 7-26 7.6: video playback Description: 1. Can search video materials of different types (all or alarm), different SD CARDS and different dates; 2. Please press the left or right button first for date, start time and end time, and then press the number button; 3.

  • Page 48: Common Tools

    Figure: 7-27 4. Select the file to be played by the arrow key, and then click "ENTER" to play it; 5. In the playback screen, you can RETURN the list of files by "RETURN" key 7.7: common tools The common tools are divided into three menus: disk management, configuration management, system upgrade, and LOGO customization, as shown in figure 7-28: Figure: 7-28 7.7-1: formatting - disk management...

  • Page 49: 2: Configuration Management

    Figure: 7-29 7.7-2: configuration management Configuration management is mainly the import and export of the current system Settings and restore factory Settings; If the current configuration is exported, the system will store the configuration information on this MDVR to the hard disk. If some other MDVR configuration is the same as this one, the hard disk can be inserted into another MDVR and the current configuration can be imported.

  • Page 50: Outsourcing Management

    The software system of the video recorder can be upgraded through the SD card. Before upgrading, the upgraded software package should be put into the root directory of the SD card, and then inserted into the device. After the device is started up, this function can be used for upgrading. The interface is shown in figure 7-31 Figure: 7-31 7.8: outsourcing management: (customized by customers) such as cloud control, face recognition and counting machine access.

  • Page 51: Player Operation Instructions

    Figure: 3-33 8 player operation instructions Note: As the system applies the latest video compression technology H.265 with 4 channel high quality 1080P cameras, if computer is used to play back the recorded video, the computer must have memory not less than 8G memory and display card above 2G. In order to get the recorded video played back smoothly on computer, during the course of playing back, less operation and no acceleration is recommended.
  • Page 52 2. Click on the: The point arrow section is modified to find the path of the file, point ok, and then point 3.To play back the file, double-click the file.

  • Page 53: Frequently Asked Question

    1、replay 2、pause 3、close 4、play (next section) 5、snap picture screen magnifying 7, acceleration multiple 8, language setting, map setting, AVI conversion 9. Frequently Asked Question 9.1: Found problems that can not be resolved? A: Take note of the product model and software version, make detail description of the issues and submit to the technical and engineers team for analysis.

  • Page 54: Why The Dvr's Video Input Connector Is Different From The Cameras Connector

    4. Check the key in the DVR, locked well and then startup. 9.3: Why the DVR’s video input connector is different from the cameras connector. A: DVR is using aviation connector and cameras are using BNC or aviation connector. If not match, users have to use an adaptor.
  • Page 55 The standby supercapacitors are recharged for 5~10 seconds when the device starts up, mainly to prevent the system from sudden power failure due to shutdown by mistake and protect the recent video from being damaged. 9.11: When the device is installed and powered on, there is a split screen but no image. Why? Please check: (1) whether the camera is N system or P system, then select properly in the device.

This manual is also suitable for:

H8ssd seriesH4hdd seriesH8hdd series
