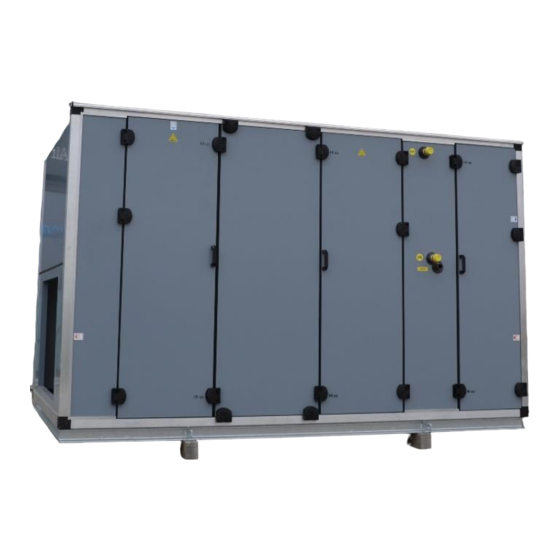

- Page 1 LUCAM B.V Lucam HCP, Lucam HRW and Fairtype air handling units with counterflow exchanger and / or indirect evaporation cooling or recovery wheel Installation, operation and maintenance manual Lucam b.v * Dukaat 19 * 8305BC * Emmeloord...
-
Page 2: Table Of Contents
10.4 Inspection doors ........................10 10.5 Conventional Cooling system ....................... 10 11. Warranty ............................11 12. Liability ............................11 13. Material Statement .......................... 12 14. Disassembly ............................ 13 15. EC declaration of conformity ......................14 Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 3: General
Warning Only licensed electrician or service personnel trained by Lucam b.v may do changes to the air handling unit regarding the electrical installation or connections perform external functions. 2.1 Safety switch / main switch There is a main switch on the air handling unit, which is located on the operating side of the unit. -
Page 4: Risk
Warning The loose accessories must be removed out or of the air handling unit before start-up of the unit. Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 5: Loading / Unloading
Proper lifting equipment must be taken into account when hoisting the unit! Warning Use equalizers (A) to lift the unit. This will keep the sides of the unit free and the lifting cables do not damage the unit. Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 6: Placement Of The Unit
Specific information regarding application in overpressure or under pressure situation see instruction with the delivered siphon. Warning In an outdoor installation, the siphon must be equipped with siphon heating. Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 7: Duct Connection
It is important to provide the coupling parts to 1 part with a draft belt. E.g. 15-20mm. This clamps as soon as the cabinets are pulled together, this gives a leak-free solution. Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 8: Electrical Connection
Lucam b.v. is a company engaged in building air handling units. To guarantee our quality and to make it clear that Lucam b.v. delivers quality an independent company is switched on. Avan BV has tested the air handling units and they therefore have the CE received approval. -
Page 9: Operation Of The Unit
Bypass valve closes 100% (heat recovery) • Reheater opens 50% (% adjustable) • Return fan starts (delayed adjustable) • Supply fan starts (delayed adjustable) Start-up mode is completed, and the unit is operating. Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 10: Technical Specifications
If a conventional cooling system is installed with cooling refrigerant, the cooling system must be maintained in accordance with the logbook. The logbook is supplied to the installer and will be fully accountable afterwards. Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 11: Warranty
The unit serves to ventilate by taking contaminated air outside the building and supplying fresh filtered air. Any other use is considered misuse and can lead to damage to the device or persons, Lucam b.v. cannot be held liable for this. -
Page 12: Material Statement
The device is an electrical appliance and the power supply must be disconnected for maintenance and inspection. The unit also includes running engines, it must have time to stop before opening the inspection door, as well as surface heating with sometimes high operating temperature. Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 13: Disassembly
Electrical and electronic parts should be treated as electronic waste drained. When handling dusty parts (such as filters, mineral wool products, etc.), appropriate ones should be used protective clothing, protective gloves and respiratory protection are worn Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... -
Page 14: Ec Declaration Of Conformity
European Parliament and the Council Directive 2006/95 / EC of 12. December 2006 on the approximation of the Member States' laws on electrical equipment designed for use within certain voltage limits Lucam b.v * Dukaat 19 * 8305BC * Emmeloord... - Page 15 Building ventilation performance and function testing of parts / products for residential ventilation part 7 DS / EN 1886: 2008 Ventilation for buildings-air treatment plant-mechanical performance DS / EN-13053 Buildings ventilation-air treatment plant performance characteristics for plants, parts and sections Lucam B.V Michel Valkema directeur Lucam b.v * Dukaat 19 * 8305BC * Emmeloord...
