Summary of Contents for Furnlink AVOCA

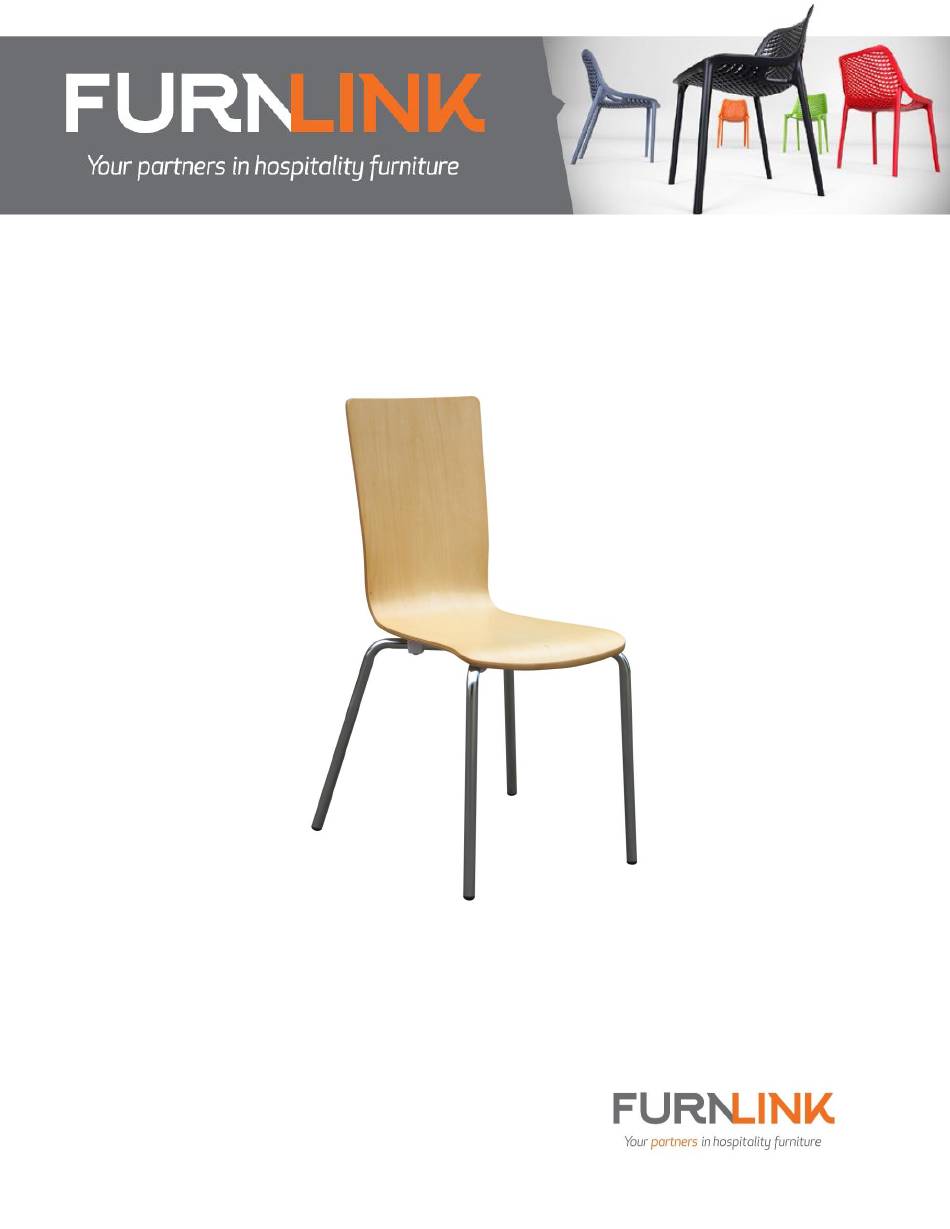

- Page 1 AVOCA CHAIR ASSEMBLY INSTRUCTIONS...
- Page 2 AVOCA CHAIR ASSEMBLY INSTRUCTIONS 1 - This images shows the shell, legs & pack of screws, spring washers, washer, feet, rubber plugs & allen key & white plastic fittings 2 – Place the shell upside down on a bench 3 – Stand the legs up to form a frame – no screws have been used to do this 4 –...
- Page 3 6 – Place the legs (still not screwed together) to form the frame – upside down as shown 7 – Place the shorter screw in the centre 8 – Screw in with the allen key loosely – NOT TIGHT 9 – Place the frame on the shell, with the arrows pointing towards the FRONT of the shell...
- Page 4 10 – Place the white plastic fitting over the legs & allow to slide down – match up with the screw holes in the legs 11 – Place the longer screws into the holes 12 – Screw in with the allen key – loosely first until all are loosely screwed then TIGHTEN 13 –...
- Page 5 14 – Push in the plastic chair feet 15 – Place the rubber plugs into the white plastic fittings 16 – The chair is completed correctly...
