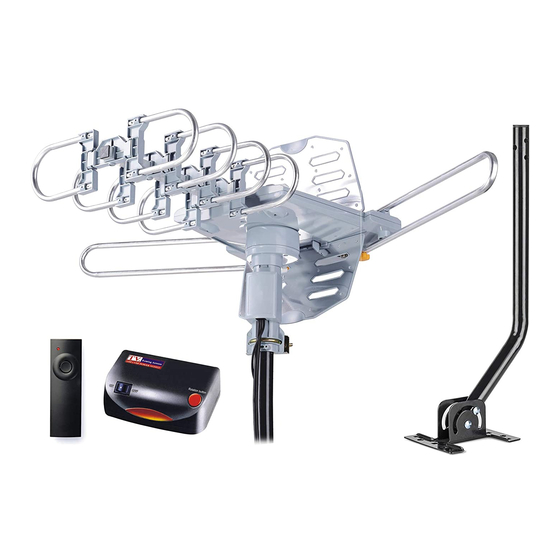

Amplified Digital Outdoor HDTV Antenna – 150 miles range
Model: WA-2608
Thank you for your purchase and your support! Digital Television is an advanced
broadcasting technology that has transformed the television viewing experience.
DTV enables broadcasters to offer television with better picture and sound quality,
and multiple channels of programming. Since June 13, 2009, full-power television
stations nationwide have been required to broadcast exclusively in a digital format.
We invite you to visit our website at www.pingbingding.com for other high-quality
products.
Main Technical and Features:
*Extremely High Performance for UHF & VHF，
*150 miles maximum range possible. Individual experiences may vary.
Frequency(VHF): 40-300MHz
Frequency(UHF): 470-890MHz
VHF gain: 25±5dB
UHF gain: 30±5dB
Max output level: 105dBu
ATSC
Compatible
www.pingbingding.com
Customer Service
E-mail: service@pingbingding.com
HDTV
Compatible
Impedance: 75Ω
Max.Rotation:Max 360 °
Power: 3W
Noise Figure:≤2.5dB
Voltage Input:AC120V±10%/60Hz
Voltage Output:AC15V/300mA
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for pingbingding WA-2608
Summary of Contents for pingbingding WA-2608
- Page 1 Since June 13, 2009, full-power television stations nationwide have been required to broadcast exclusively in a digital format. We invite you to visit our website at www.pingbingding.com for other high-quality products. Main Technical and Features: *Extremely High Performance for UHF &...
- Page 2 Package Contents Director Wing screw daptor hite Wing screw daptor hite Service card...
- Page 3 Connect the Antenna to TV or Set ‐ topBox NEED SOME HELP? Scan me for Video of Setup Instruction Director VHF dipoles Power supply indicators Explained Red Light: Power on Green Light: Antenna is rotating Yellow Light: There is something wrong with power supply, please check the cable connection.
- Page 4 Mount the Antenna Director Step 1. Assemble 8pcs of directors. Step Spread out the antenna VHF dipoles. Wing screw Step 3. Fix the directors by M4x18mm screw Step 4 Spread out the antenna reflectors Wing screw Step 5. Fix the motor bolster by M5x25mm Step 7 screw Connect the 12m cable with power supply...
- Page 5 Antenna pole (*Optional) Find a convenient outdoor location to mount your antenna, then scan for channels. Note: Before final mounting, first test your selected antenna location by scanning for channels. In some instances, you may decide to relocate the antenna for better reception.
- Page 6 Run a channel SCAN after connecting and positioning antenna Also Scan: - Anytime antenna is moved - Every month - If you lose a channel Scanning finds all available channels, including newly added or changed. General Instructions 1. Select MENU on the remote control that came with your TV or digital converter box.
- Page 7 Frequently Asked Questions How many channels can I receive? The number of channels you can receive will be determined by what is broadcasting in your area. Channel reception will vary from location to location based on terrain (including trees, buildings, hills and mountains). The fewer obstructions, the better your chance of receiving strong digital signals.
- Page 8 I missed a part from the list. What should I do? Should I return the antenna? Please don't return. You can E-mail us at: service@pingbingding.com and we will ship you a replacement part free of charge within 30 days.
Need help?
Do you have a question about the WA-2608 and is the answer not in the manual?
Questions and answers
My antenna worked well for years, but not now. The rotation doesn't work, the reception is not good, and the red light is not on. The light is on the TV box beside the TV.
@Jeff Maness
Possible reasons for the Pingbingding WA-2608 antenna not rotating, having poor reception, and the red light not turning on include:
1. Improper Installation: The small cable with the weather boot may not be threaded correctly into the antenna dipole kit.
2. Power Issue: The red LED not turning on suggests the antenna main unit may not be receiving power.
3. Connection Problems: The antenna may not be properly connected to the HDTV or set-top box.
4. Remote Control Issues: The remote control may be malfunctioning or not aimed correctly at the control box, which can prevent rotation.
5. Poor Placement: The antenna may not be positioned high enough or facing the broadcast tower, reducing signal strength.
6. Environmental Factors: Hills, buildings, or trees near the antenna can block signals and affect reception.
7. Missing or Faulty Components: Some users reported missing remotes or non-working remote systems, which can affect rotation control.
This answer is automatically generated
My antenna doesn’t turn when I push the button the green light comes on but the antenna doesn’t move
The Pingbingding WA-2608 antenna may not turn when the button is pushed, despite the green light coming on, because the oil on the motor gears is not fully spread. Manually rotating the motor a full turn can help distribute the oil, allowing the motor to function properly.
This answer is automatically generated
Not getting green light on box. With everything not connected I get yellow light, if I push button, green light pops up but yellow stays on. Have tried different cables on inside and outside. According to troubleshooting looks like box is junk
Where can I buy a replacement remote control device. I bought the antenna secondhand and there was no control device included in the box.
