Summary of Contents for SPINK CONTROLS R 300/D SERIES

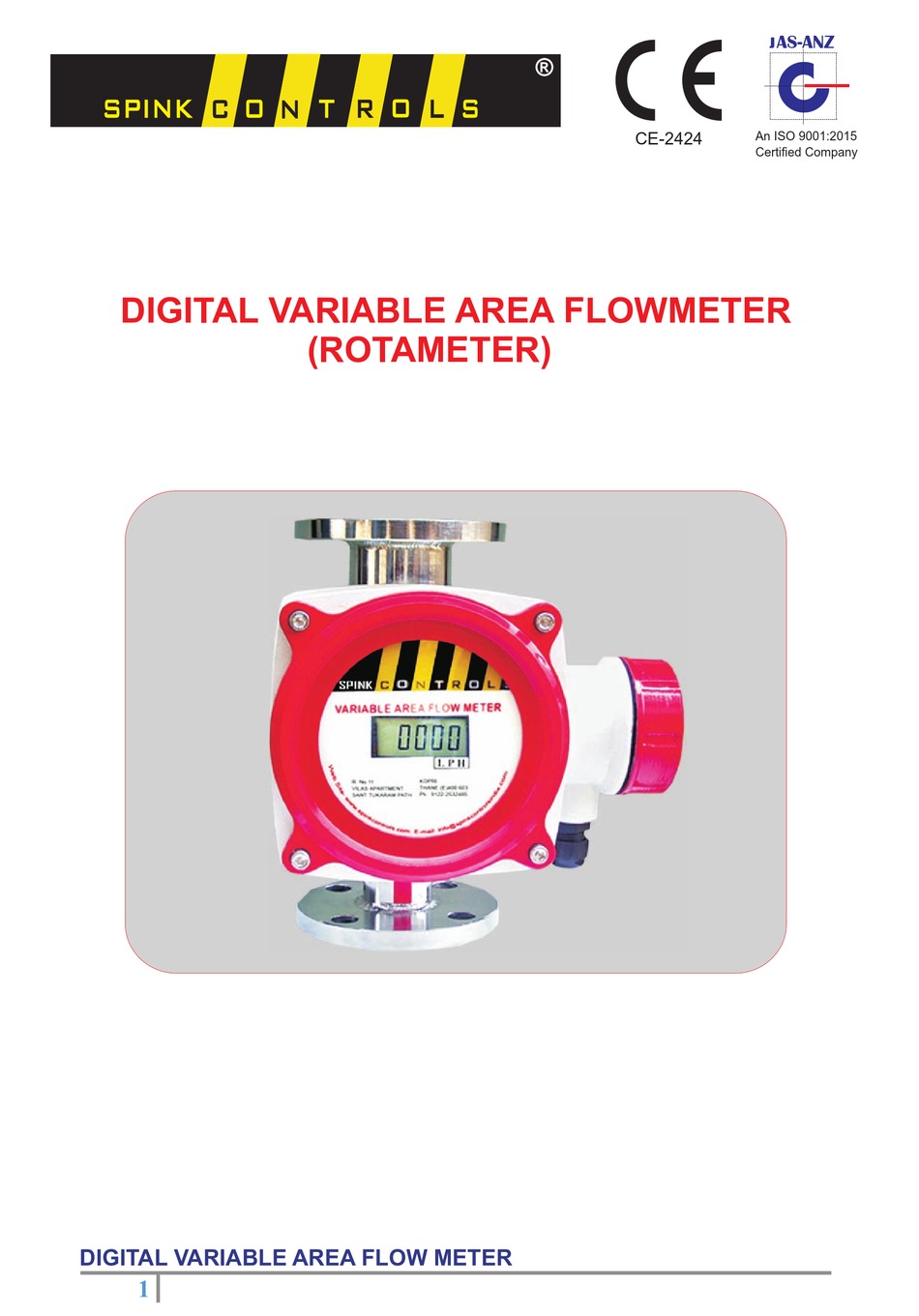

- Page 1 AS-ANZ An ISO 9001:2015 CE-2424 Certified Company DIGITAL VARIABLE AREA FLOWMETER (ROTAMETER) DIGITAL VARIABLE AREA FLOW METER...
-
Page 2: Table Of Contents
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company OPERATOR’S MODEL: R 300/D SERIES MANUAL Contents: Section 1 Handling & Storage Instruction------------------------------------page 3 Section 2 Introduction --------------------------------------------------------------page 3 – page 3 Section 3 operation------------------------------------------------------------------page 3 – page 4 3.1 Principle of operation ------------------------------------------------page 3 3.2 Flow formula------------------------------------------------------------page 4... -
Page 3: Section 1 Handling & Storage Instruction
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company Section 1: Handling & Storage Instruction 1.1 Unpacking Care should be taken when opening the box containing the Flowmeter, any markings or warnings shown on the parcel should be observed prior to opening. The following steps should then be taken: Unpack the Flowmeter in a dry area. -
Page 4: Flow Formula
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company Based on Bernoulli’s theorem, the principle mentioned above can be theoretically expressed as follows. 3.2 Flow Formula: Q = CA 2gV ( Where Q = Volumetric flow rate. C = Flow coefficient. A = Fluid passing Area. g = gravimetric acceleration. -
Page 5: Ordering Model Specifications
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company 4.2 Ordering Model specifications: DIGITAL VARIABLE AREA FLOW METER... -
Page 6: Indicator Housing Dimension &Power Supply Connection
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company 4.3 Indicator Housing Dimension & Power supply connections: Figure: 01 Dimensional Drawing All Dimensions in mm Figure: 02 Figure: 03 9 VDC Battery connection. 24 VDC Supply connecting Terminal For 4 – 20 mA output signal. For Model: R300/D0001 DIGITAL VARIABLE AREA FLOW METER... -
Page 7: Section 5 Programming Of Microprocessor Based Controller
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company Section 5: PROGRAMMING OF MICROPROCESSOR BASED CONTROLLER The variable Area flow meter with Batch controller uses the Microcontroller Based single set point ON/OFF controller. This flow meter has the 16 digit X 4 lines LCD display to indicate the FLOW RATE, BATCH SETTING, BATCH FILLED AND TOTALISER, DENSITY CORRECTION. - Page 8 For any gas & liquid the water equivalent is calculated from the operating data’s of pressure, temperature, density and viscosity by computer using special software developed by SPINK CONTROLS. The instrument is calibrated by using water at various flow rates by measuring volume of water collected in a known time.
-
Page 9: Section 7 Installation
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company Section: 7 INSTALLATIONS Note: Physical Inspection should be done after receiving Material, its condition, whether it got damaged or not which may be occurred by mishandling during transit. If any damage observed immediately contact our service department. Read the Instruction given in section 1.1 &... -
Page 10: Electrical Connections
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company 7.2 Following Points Are Important for flow meter installation. 1. A straight pipe section of approximately should be maintained, if any, will effectively stabilize readings. 2. Strainer: Generally the strainer is not indispensable required, if there is a possibility that dust may enter, however, maintenance will be easier if the strainer is provided. -
Page 11: Section 8 Constrictions, Maintenance & Trouble Shoots
AS-ANZ An ISO 9001:2015 CE-2424 Certified Company Section 8 Constructions, Maintenance & Trouble shoots 8.1 Internal assembly of Flowmeter applicable for low flow. Part No Name Strainer Taper Metering Tube Float Stopper Float Guide Body Fig.2 inner Assembly ENCLOSURE Fig.6 Dismantling & assembling internal part Note: Figures are not to scale DIGITAL VARIABLE AREA FLOW METER... - Page 12 AS-ANZ An ISO 9001:2015 CE-2424 Certified Company 2. Taper Metering tube 1. Strainer Flow 5. Float Guide 4. Stopper Fig.7 Each Parts Diagrams NOTE: All Figures are not to scale. DIGITAL VARIABLE AREA FLOW METER...
- Page 13 AS-ANZ An ISO 9001:2015 CE-2424 Certified Company 8.2 Digital Variable area Flowmeter (high flow) internal assembly. Part No Name Bottom side Float Guider Float Top Float Guider Top View of top float guider Side View of float Bottom side float Guider, It is welded with body Body Removed Enclosure...
- Page 14 For any functioning setting error Refer to section 5 of this manual for settings. Fault Observed Reason Trouble shoots Reading shows high/low flow rate than specified Check operating condition Contact Spink Controls Flowmeter shows correct Float is damaged or Replace float in case of reading but stuck corroded gases...
