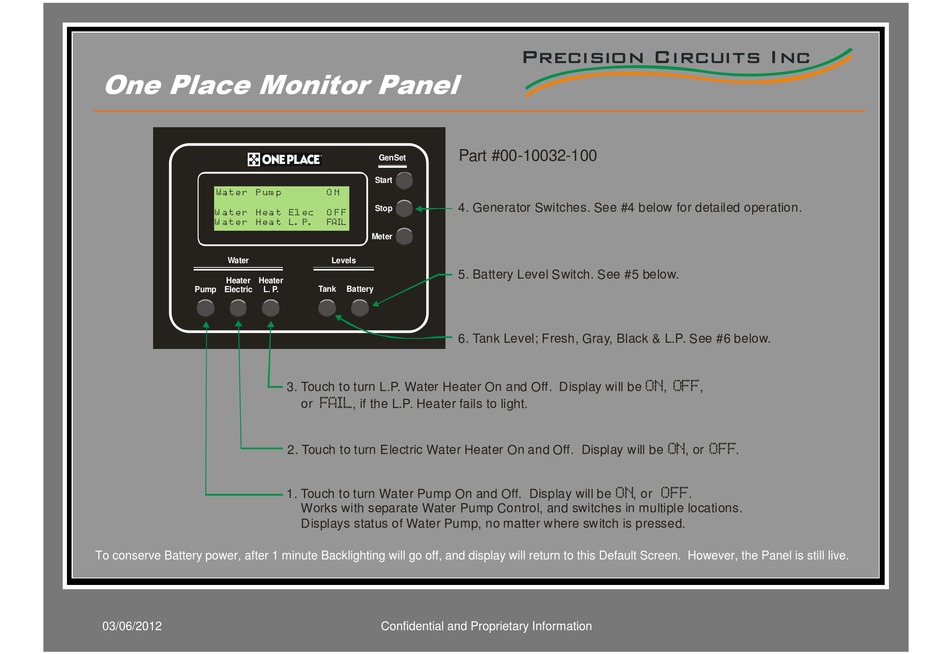

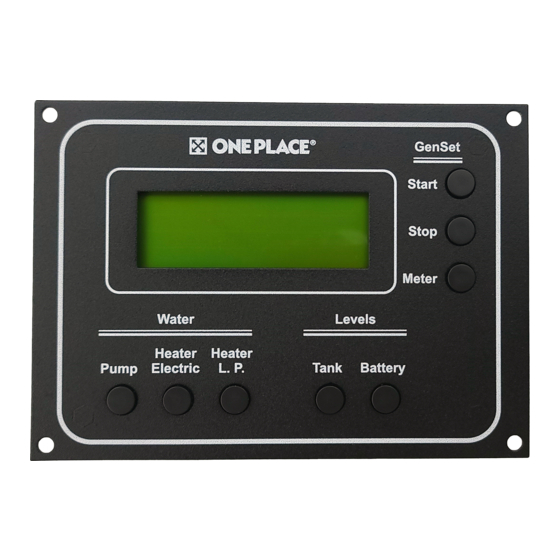

One Place Monitor Panel
Wa t e r P um p
W a t e r H ea t El ec
W a t e r H ea t L. P.
Water
Heater
Heater
Pump
Electric
L. P.
To conserve Battery power, after 1 minute Backlighting will go off, and display will return to this Default Screen. However, the Panel is still live.
03/06/2012
Part #00-10032-100
GenSet
Start
O N
4. Generator Switches. See #4 below for detailed operation.
Stop
O F F
FAIL
Meter
Levels
5. Battery Level Switch. See #5 below.
Tank
Battery
6. Tank Level; Fresh, Gray, Black & L.P. See #6 below.
3. Touch to turn L.P. Water Heater On and Off. Display will be
FAIL
or
, if the L.P. Heater fails to light.
2. Touch to turn Electric Water Heater On and Off. Display will be
1. Touch to turn Water Pump On and Off. Display will be
Works with separate Water Pump Control, and switches in multiple locations.
Displays status of Water Pump, no matter where switch is pressed.
Confidential and Proprietary Information
Precision Circuits Inc
ON OFF
,
,
ON
, or
ON
OFF
, or
.
OFF
.
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for Precision Circuits One Place
- Page 1 Precision Circuits Inc One Place Monitor Panel Part #00-10032-100 GenSet Start Wa t e r P um p 4. Generator Switches. See #4 below for detailed operation. Stop W a t e r H ea t El ec O F F W a t e r H ea t L.
- Page 2 Precision Circuits Inc One Place Monitor Panel Trouble Shooting If Monitor Panel is completely non-operational, Check to make sure WATER PUMP S WITCH CHASSIS BAT SE NSE there is between +11Volts and +15Volts between pins 2 and 5. WATER HE ATER ELEC...
- Page 3 Precision Circuits Inc One Place Monitor Panel Chassi s Bat Voltage 5. Touching Battery Levels button brings you to this screen. The 13. 2V """"" ——— Chassis and House Battery Voltages will display in both Digital and Analog (bar graph) format. The Analog range is 10.0V-15.0V; with...
- Page 4 Precision Circuits Inc One Place Monitor Panel Trouble Shooting Water Level Sensors FRESH TANK GROUND FRE SH TANK GRAY TANK 2 GROUND GRAY TANK 2 GRAY TANK 1 GROUND GRAY TANK 1 There is potentially up to 5 Tanks on the RV. Each one has a pair of wires going to the J3...
- Page 5 Precision Circuits Inc One Place Monitor Panel G e ne ra t or G e ne ra t or R un ni n g S to pp e d 1 5 45 . 3 Ho ur s 1 5 45 . 3 Ho ur s 4.
- Page 6 Precision Circuits Inc One Place Monitor Panel Trouble Shooting Generator Function Voltage between Pins 4 and 1 should be +12V when the Generator is running, and change the display from “Stopped” to “Running”. STOP INDI CATOR While Pressing and Holding the Generator Stop Button, pin 2 Stop voltage should go to zero, and return to +12V when the Button is released.
- Page 7 Panel. The One Place Monitor Panel has many safe guards to prevent improperly learning a feature. Should the Panel have learned something incorrectly, an option exists on the Panel to reset the original factory default, so that the Panel can re-learn the proper features.
