Summary of Contents for HI-PRESS TANGYE HYDRAMITE

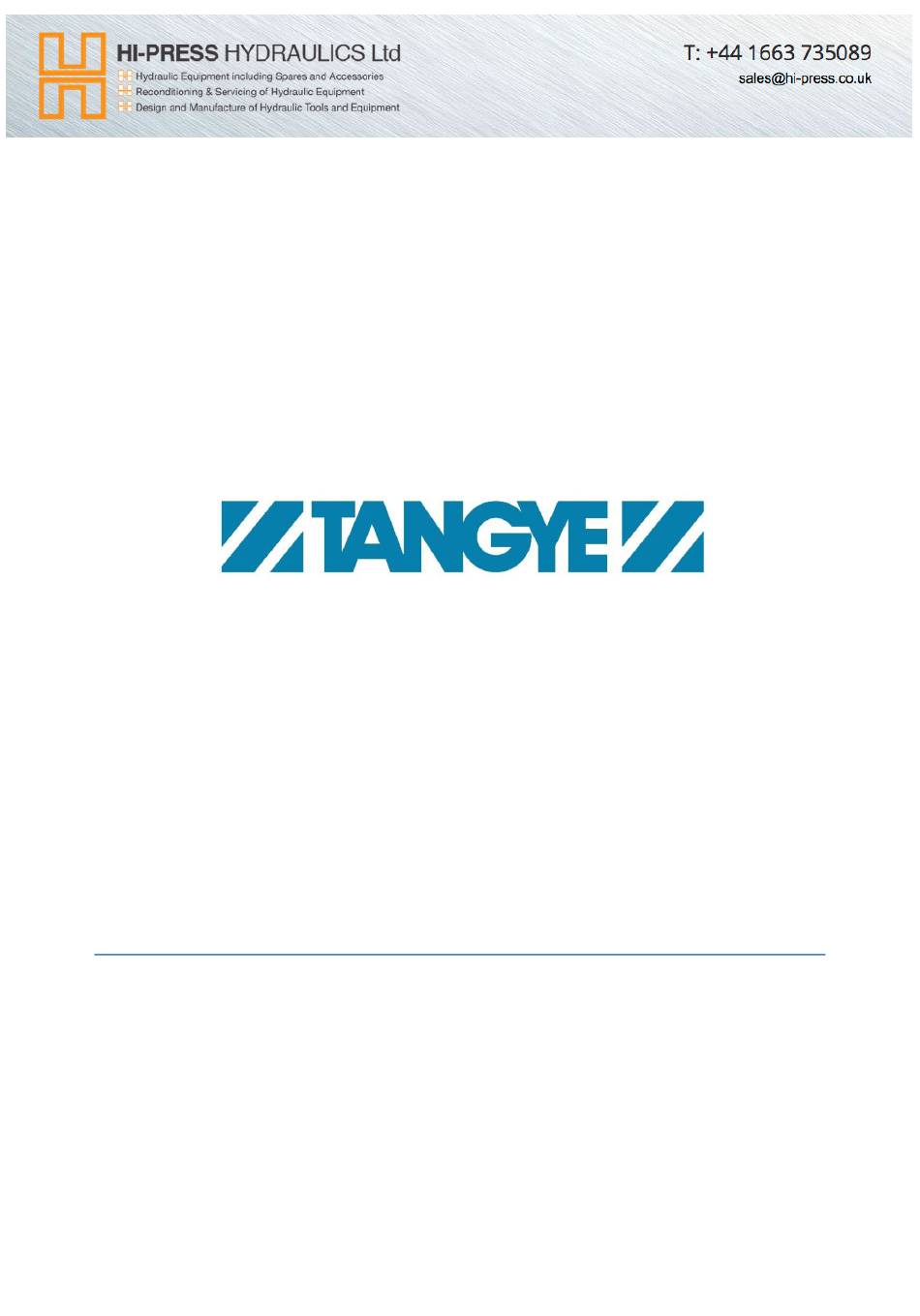

- Page 1 Operating & Safety Instructions...
-
Page 2: Operating & Safety Instructions
Operating & Safety Instructions Please read this instruction booklet carefully before operating the product and keep in a safe place for future reference. It is the responsibility of the purchaser to ensure that operators are properly trained in the safe use of this equipment and have access to Tangye Operating and Safety I nstruction... - Page 3 The ram should only be extended hydraulically; it should never be pulled out by hand or used to carry the jack. Do Not position the jack by using the operating lever in the release valve. If the jack is t o be placed some distance under the load, use the operating lever in the operating lever/quadrant socket to position the jack.
- Page 4 HYDRAMITE Fig. 1 Function (read in conjunction with Fig. 1) The permissible working load and the travel of the hydraulic jack are marked on the equipment. The jack (1) has an in -built hydraulic pump, which is worked by means of an operating lever (2), under the control of the o perator.
- Page 5 HYDRALITE Fig.2 Function (read in conjunction with Fig. 2) The permissible working load and the travel of the hydraulic jack is marked on the equipment, also see table 1. The jack has an in -built hydraulic pump, which is worked by means of an operating lever ( 1), under the control of the operator.
- Page 6 Jacks with Screwed Rams (Type S) All models can be provided with screwed rams and locking collars. The purpose for this is to mechanically support a load at a required position without relying on the hydraulic circuit. When the load is at the required position, rotate the locking collar clockwise until it rests hand tight on the top of the jack body.
- Page 7 100 Tonne Jacks Only This jack is fitted additionally with a low pressure pump intended for faster movement of the ram under no load. i.e. to close daylight. The low pressure quadrant is on the left hand side of the jack and operates in the same manner as the high pressure pump. Stroke Limit The jack is fitted with an internal by -pass valve which prevents the ram stroke exceeding the design limit.
- Page 8 HYDRACLAW Description The jack is constructed from high strength ferrous materials throughout. The forged claw is guided in the body to relieve the ram of bending loads. Oil Level Check The jacks are supplied filled and ready for use. However, before using the jack for the first time, the oil level should be checked.
- Page 9 Supporting the Jack Before use always ensure the jack is fully supported on a flat, firm surface with due regard to the load to be lifted. Position the jack so that the load bears centrally on the top of the ram or on the full extent of the claw, ensuring that the load cannot touch any static part o f the jack during lifting.
- Page 10 Safety information Always ensure that the full base area of the jack is supported when in use. Always ensure that loads are applied centrally to the ram or to the full extent of the claw. Always clean the ram and retract after use. Always remove the jack operating handle when not in use.
