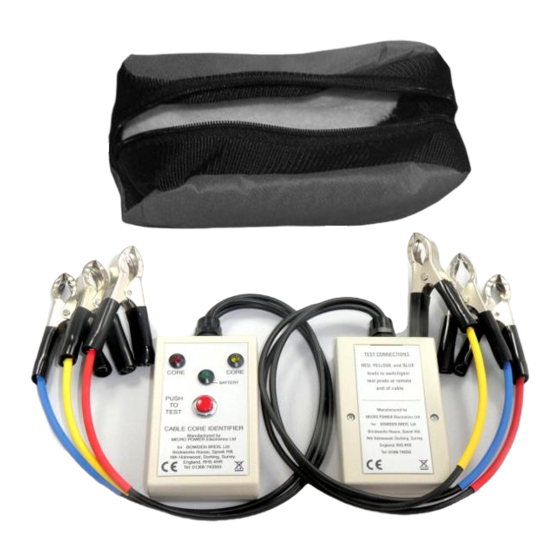

The Bowdens Cable Core Identifier is designed as a simple
carry out battery
tool to correctly identify the phase rotation of a three phase
test. If GREEN
cable at a remote point on a known cable. Follow these
LED does not light
simple instructions for operation.
Change the
battery.
1. Do not connect the CCI to a cable that has not been fully
2. Only use an Industrial Alkaline PP3 battery of the type
Bowden Bros Ltd - Cable Core Identifier - Operating Instructions - page 1.
Bowden Bros Ltd - Brickworks House, Spook Hill, North Holmwood, Dorking, Surrey. RH5 4HR
Tel: +44 (0) 1306 743355 email:
CABLE CORE IDENTIFIER.
discharged. Damage WILL be caused and is not covered
under our warranty.
supplied with the instrument.
info@bowden-bros.com
WARNING:
website: www.bowdenbros.com
U.K.
Advertisement
Table of Contents
Summary of Contents for Bowdens Cable Core Identifier
- Page 1 2. Only use an Industrial Alkaline PP3 battery of the type supplied with the instrument. Bowden Bros Ltd - Cable Core Identifier - Operating Instructions - page 1. Bowden Bros Ltd - Brickworks House, Spook Hill, North Holmwood, Dorking, Surrey. RH5 4HR U.K.
- Page 2 GREEN LED does not light change the battery, but only colours and the cable core colours. with an industrial capacity Alkaline PP3. Receiver Bowden Bros Ltd - Cable Core Identifier - Operating Instructions - page 2.
- Page 3 RED LED and the YELLOW LED are lit. YELLOW LED is ON. Refer to the instructions again. This means the phase rotation is now correct. Bowden Bros Ltd - Cable Core Identifier Operating Instructions – page 3.
- Page 4 If you disconnect at B using a receiving at A identification of correct phasing is possible at both B and C. USING THE BOWDEN BROS CABLE CORE IDENTIFIER ON A TEE CONNECTED CIRCUIT. Bowden Bros Ltd - Cable Core Identifier – Operating Instructions - page 4.
