Summary of Contents for X-Armour XR-9500
- Page 1 Installation and Owner’s Manual MULTIFUNCTIONAL LASER PARKING ASSISTANT SYSTEM PND Technology...
-
Page 2: Table Of Contents
Contents Congratulations! • Safety Attention • Package Contents • XR9500 and Accessory • Basic Features and Controls • Install the Unit • Sensor Installation Sensor Position Control Installation Receiver Installation Operation • Power On/Off for control unit Power On for receiver unit Receiver unit brightness control Receiver unit mode change Laser Diffuser Mode Operation... -
Page 3: Congratulations
The XR-9500 provides distinct visual and audio alerts to warn you of the presence of obstacle and all the laser signals. It can also detect speed laser guns’ signal and it might be interfere it. -
Page 4: Package Contents
• U se of laser products may be regulated by your local laws. Check your local laws before using this product. • D o NOT look at the sensor’s lens while powered on and operating. It seems anything to see but you might cause eye damage since XR-9500 emits infrared light. Package Contents • T he XR-9500 has one receiver unit, one control unit and sensor units. The standard model has dual sensor units. Optionally the user can purchase more sensor units like triple, quad and quint. -
Page 5: Xr9500 And Accessory

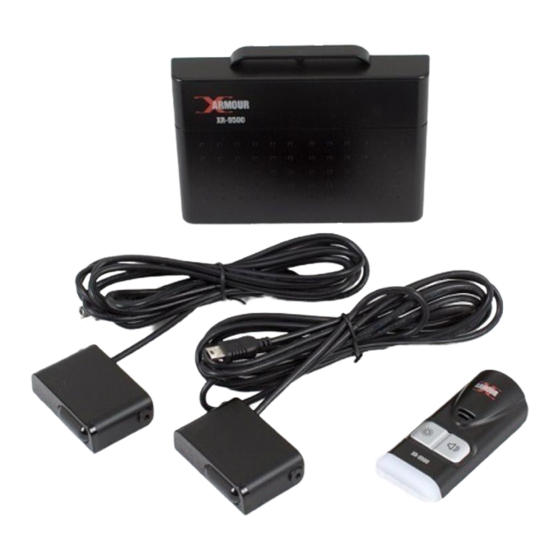

XR-9500 and Accessory XR-9500 RECEIVER XR-9500 CONTROL UNIT XR-9500 SENSOR 12V DC POWER CORD BRACKET MOUNTING 3M TAPE & ACCESSORY CONTROL HOUSING ASSEMBLE SCREW HARDWIRE KIT LASER DIFFUSER... -
Page 6: Basic Features And Controls
FRONT SENSOR MINI USB CONNECTOR FIRMWARE UPDATE 12V DC POWER ADDITIONAL CONNECTOR SENSOR CONNECTOR ANTENNA REAR SENSOR MINI USB CONNECTOR CONTROL UNIT COOLING PAD MINI USB BRACKET SCREW HOLE SENSOR LENS TRANSMITTER SENSOR UNIT CONTROL TOP CASE INSIDE X-ARMOUR XR-9500... -
Page 7: Install The Unit
Install the Unit The XR-9500 needs professional installation recommended. New car dealers and the group of car audio specialists can install the XR-9500. Attempting to install the XR- 9500 without expertise in automotive electronic can cause personal injury during the installation, or can damage the product or your vehicle. Sensor Installation • It can be mounted between the front grill partitions or above the rear bumper. • U sing the 3M double sided tape to mount the sensor. Otherwise using the bracket, bolts and wrench to mount the sensor and adjust the sensor position which is levelled. It is very important to install with parallel to receive the signals. -
Page 8: Sensor Position
Do not install sensors behind a solid surface, which would block laser transmission and reception. ( O ) ( X ) ( X ) Parallel to the Road Side view (parallel to the road) ( O ) ( X ) ( X ) Top view (parallel in front) X-ARMOUR XR-9500... -
Page 9: Control Installation
REAR BATTERY FRONT FR 2 FR 1(CENTER) FR 3 12V POWER CONNECT RECEIVER Control Installation • L ocate an appropriate place to put the control unit inside the bonnet. It is recommended to locate near battery like the top of the battery. Using the 3M fastener tapes at the bottom or cable ties at the handle to fix. • C onnect the sensors to the FR1, FR2, FR3 sockets for the front side. Connect the sensors to the REAR1 and REAR2 sockets for the rear side. Additionally, one more sensor can connect at ‘OPTION’ socket for front or rear side to cover large vehicle. • C onnect the DC12V power cable socket from the hardwire kit. There are two ‘Y’... -
Page 10: Receiver Installation
Receiver unit brightness control (Dim mode) ☼ Pressing the (BRIGHT/MODE) button to toggle four levels of brightness mode: bright, dim, dimmer and dark. When it changes the brightness, it makes beep sound one time(dark), two times(dimmer), three times(dim), four times(bright). The selected brightness mode is saved after power off. Receiver unit mode change (Laser diffuser and Parking assistant modes) ☼ There are laser diffuser mode and parking assistant mode. Pressing the (BRIGHT/ X-ARMOUR XR-9500... -
Page 11: Laser Diffuser Mode Operation
☞ S ome TPMS(tire pressure monitoring system) and remote smart key are using 433Mhz the same as XR-9500 wireless communication. The XR-9500 wireless circuit is designed not to interfere with vehicle TPMS. When changing the mode, it might have temporary error which means do not change the mode for a few seconds. You may try it again. The control unit is updating current mode status automatically in every second and change the receiver unit status if there is any error. -
Page 12: Parking Assistant Mode Operation
If the vehicle battery is under 11 volt, the receiver is slowly blinking blue and red light at the same time. There is no alarm sound. In case of it, please check the battery power. Factory Setting The default factory settings are as follows. User setting for volume and bright level are saved. + Laser diffuser mode + High level for volume + Bright level for indicadion light X-ARMOUR XR-9500... -
Page 13: Updating Firmware
Updating Firmware To keep your XR-9500 unit up to date you will need to download the firmware. Firmware can be downloaded from our website free of charge for all XR-9500 users. You must first register your device at www.x-armour.com. Once registered, you will receive e-mail notifications whenever updates are available. After downloaded firmware at the USB memory drive from the website, plug the USB memory into the ‘USB’ connector at the XR-9500 control unit. Just plug the USB memory at the USB connector for downloading. The ‘USB’ at the control unit is blinking red light 10 ~15 seconds during downloading firmware. When finishing the downloading, the red light stops the blinking and turns on. Visit our website at www. -
Page 14: Troubleshooting
If the Receiver gives constant alarm at the ‘Parking Assistant Mode’ without any obstacles: • B ecause the front grill can reflect the parking signal in case of white or bright metal colored vehicle, sensors may recognize it as obstacles. It is recommended to install the edge of the grill where it is unobstructed ‘view’. ( X ) ( O ) X-ARMOUR XR-9500... -
Page 15: Specifications & Dimension
If the Receiver gives no alarm at the ‘Parking Assistant Mode’ against obstacles: • T he parking assistant’s light beam is very straight and narrow so it can only recognize the small area of obstacles. If the sensor is located too high, it might be difficult to recognize the low positioned obstacle. Please adjust the sensor location for parking assistant mode. If the Receiver gives no alarm or alarm in close distance against laser gun: • C heck the sensor’s lens if there is any dust or snow covered. Please keep clean for the sensor’s lens. - Page 16 PND TECHNOLOGY #1607, B-TOWER, GUNPO IT VALLY 17, GOSAN-RO,148 BEON-GIL, GUNPO-SI, GYEONGGI-DO, 15850, REPUBLIC OF KOREA SALES/SERVICE: 82-31-8085-1492 WWW.X-AROMUR.COM...
