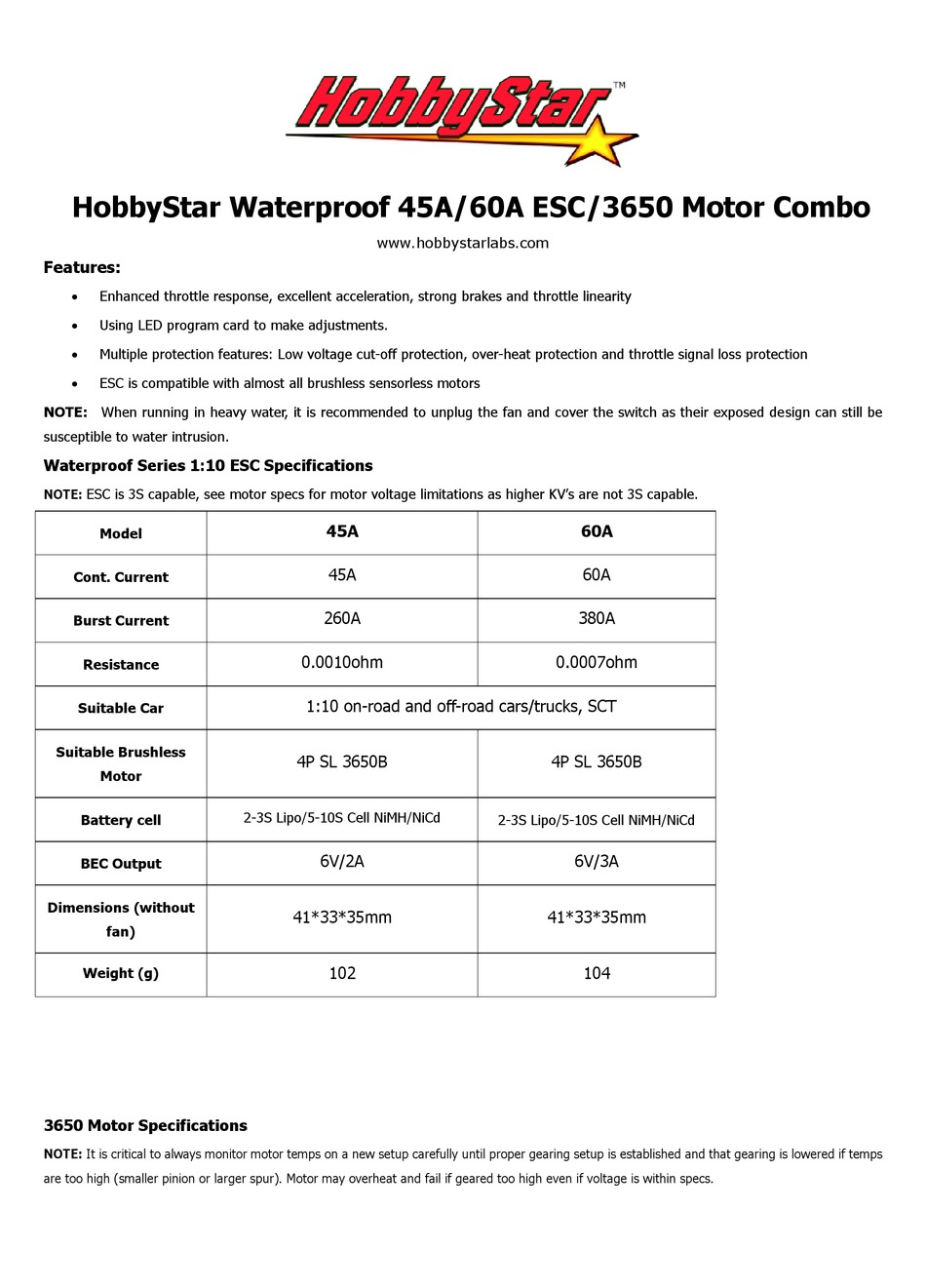

HobbyStar Waterproof 45A/60A ESC/3650 Motor Combo
Features:
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
Using LED program card to make adjustments.
Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection
ESC is compatible with almost all brushless sensorless motors
NOTE: When running in heavy water, it is recommended to unplug the fan and cover the switch as their exposed design can still be
susceptible to water intrusion.
Waterproof Series 1:10 ESC Specifications
ESC is 3S capable, see motor specs for motor voltage limitations as higher KV's are not 3S capable.
NOTE:
Model
Cont. Current
Burst Current
Resistance
Suitable Car
Suitable Brushless
Motor
Battery cell
BEC Output
Dimensions (without
fan)
Weight (g)

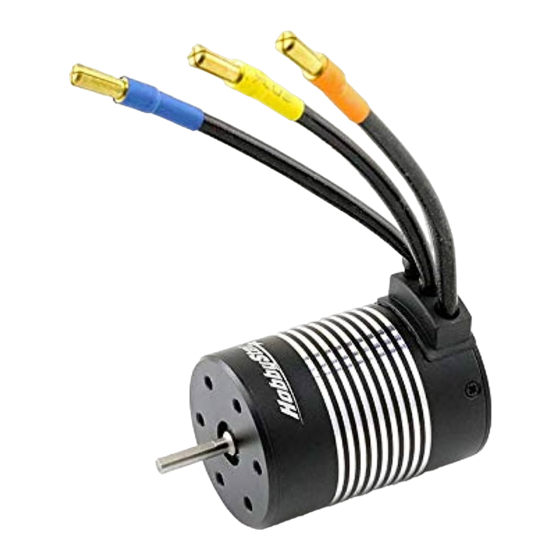

3650 Motor Specifications
NOTE: It is critical to always monitor motor temps on a new setup carefully until proper gearing setup is established and that gearing is lowered if temps
are too high (smaller pinion or larger spur). Motor may overheat and fail if geared too high even if voltage is within specs.
www.hobbystarlabs.com
45A
45A
260A
0.0010ohm
1:10 on-road and off-road cars/trucks, SCT
4P SL 3650B
2-3S Lipo/5-10S Cell NiMH/NiCd
6V/2A
41*33*35mm
102
60A
60A
380A
0.0007ohm
4P SL 3650B
2-3S Lipo/5-10S Cell NiMH/NiCd
6V/3A
41*33*35mm
104
