Summary of Contents for reci W Series

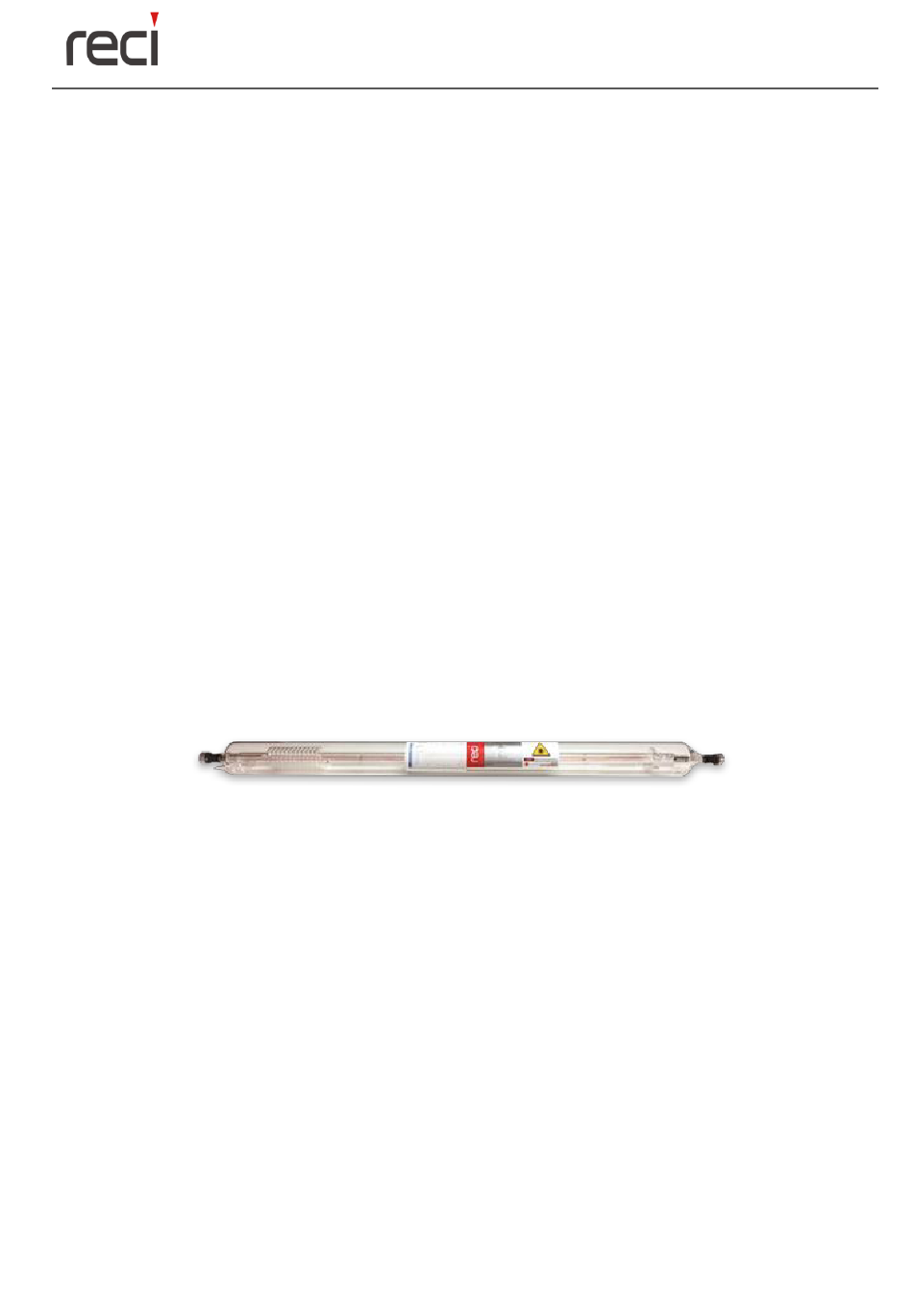

- Page 1 Beijing Reci Laser Technology Co., Ltd. Laser Tube - Model W Instruction Manual...
- Page 2 Beijing Reci Laser Technology Co., Ltd. Contents 1. Safety Information..........................3 1.1 Safety Symbols ........................3 1.2 Laser Safety Level ........................ 3 1.3 Safety Symbols ........................3 1.4 Other safety precautions ......................4 2. Product introduction ......................... 4 2.1 Features ..........................4 2.2 Unpacking and inspection .....................
- Page 3 Beijing Reci Laser Technology Co., Ltd. 1. Safety Information Thank you for choosing Reci CO2 laser tube. This user manual provides you with important information on safety, operation and maintenance. Please read it carefully before using the product. To ensure safe operation, please observe the following cautions, warnings and other information in this manual.

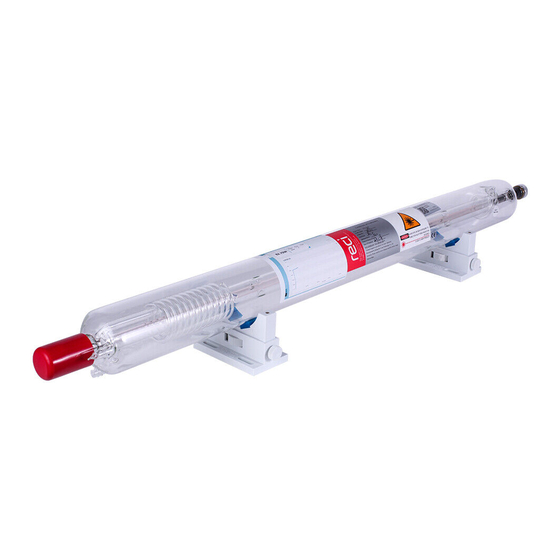

- Page 4 Beijing Reci Laser Technology Co., Ltd. Figure 1 shows the product and the location of safety symbols. These safety symbols mainly include safety warnings, laser output warnings, and strong electric warnings. All is described in detail as follows: 2. Warning: Refer to a potential laser 1.Avoid exposure visible and/or...
- Page 5 Reci is only one nuclear radioactive material coating company in Asia, and the second in the world. Reci vacuum-deposits the radioactive isotope material from the crucible to the optical lens. This material has a very low absorption of 10.6um and is irreplaceable.
- Page 6 Beijing Reci Laser Technology Co., Ltd. 3.2 The Parameters of Model W CO2 Laser Tube Model Length Mounting Diameter Ignition Recommended Target Name (mm) Position (mm) Voltage Current Power Power (mm) (KV) (mA) 1100 1250 1400 1650 1850 Table 4 3.3 The Parameters of Power Supply...
- Page 7 Beijing Reci Laser Technology Co., Ltd. 3.5 Working Conditions Water cooling: The cooling liquid is pure water with standard water temperature from 10℃ to 50℃. And the flow rate is 2-5 liters per minute. Application environment: temperature from 2℃ to 40℃, humidity from 10% to 60%.
- Page 8 Beijing Reci Laser Technology Co., Ltd. 3.9 Storage and transportation requirements The cooling liquid must run out in storage or transportation; The output must be covered with a dust-proof plastic wrap; The storage temperature should be kept between 2-40°C and the humidity between 10-60%.
