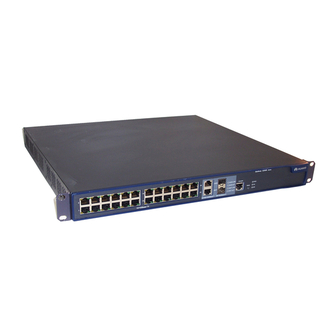

Huawei Quidway S2008-HI Specifications

Quidway® S2000-HI Series Intelligent Access Switches Product Specification
Quidway® S2000-HI Series Intelligent Access
Feature
Fixed ports
Extended Slot
Extended Module
Performance
Switching
capacity
Switching Fabric
Throughput
Stack(HGMP V2)
Max stack
numbers
Stack bandwidth
(bps)
POE (As PD)
Latency
Layer 2 Switching
MAC Address
Port Mirroring
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
Switches Product Specification
S2403H-HI
(1)24 10/100 BASE-TX
ports
(2) 1 console port
2
(1)1*10/100/1000BASE-T:max transmission distance: 100 m (328 ft)
(2)1*100BASE-SX: SC connector, 2 km (1.24 mi.)
(3)1*100BASE-LX: SC connector, 15 km (9.32 mi.)
(4)1*100BASE-LH40: SC connector, 40 km (24.86 mi.)
(5)1*1000BASE-SX: SC connector, 0.5km (0.31 mi.)
(6)1*1000BASE-LX: SC connector, 10 km (6.21 mi.)
(7)1*1000BASE-LH40: LC connector, 40 km (24.86 mi.)
(8)1*1000BASE-LH70: LC connector, 70 km (43.50 mi.)
(9)1*1000BASE-STACK (not supported by S2008-HI)
(10)1*100BASE-TX PD (Powered Device) (not supported by S2403-HI)
8.8 Gbps
19.2 Gbps
6.55 Mpps
Yes
16
4G
No
<10µs
Up to 8 K MAC addresses
1 K static MAC addresses
Adding of dynamic/static unicast MAC address, multicast MAC address, and
black hole MAC Address
Many-to-one port mirroring (that is, multiple mirroring ports, and one monitor port)
S2016-HI
(1)16 10/100 BASE-TX
ports
(2) 1 console port
2
7.2 Gbps
19.2 Gbps
5.36 Mpps
Yes
16
4G
Yes
S2008-HI
(1)8 10/100 BASE-TX
ports
(2) 1 console port
1
3.6 Gbps
19.2 Gbps
2.68 Mpps
No
No
No
Yes
1
