SET UP
1.
Key in OFF position
4.
Choose setting – refer
to switch table, default
settings shown side 2
ON
OFF
7.
Test – place magnet next to reed, turn on,
separate magnet from reed
Exit Stopper
Quick Install

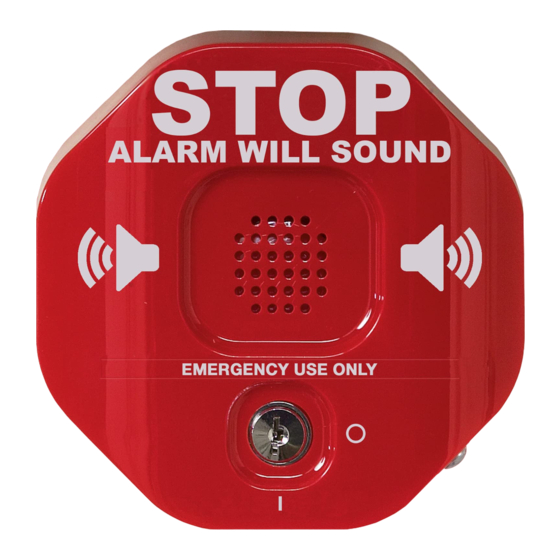

STI-6400 Series
2.
Remove security screw with
provided wrench
5.
Unwrap battery
and connect
LED
LED -
DO NOT TOUCH
Do Not Touch
Rely on STI
®
®
3.
Remove cover from base,
push on lock to separate
6.
Terminal block (for remote and
relay options) – refer to full install
online for wiring connections
8.
Apply language label if desired
Advertisement
Summary of Contents for Exit Stopper STI-6400 Series
- Page 1 Exit Stopper ® Quick Install STI-6400 Series Rely on STI ® SET UP Key in OFF position Remove cover from base, Remove security screw with provided wrench push on lock to separate Choose setting – refer Unwrap battery Terminal block (for remote and to switch table, default relay options) –...
- Page 2 MOUNTING Position base. Mark and drill four (4) holes 1” Place reed at desired location MOUNTING HOLES MOUNTING HOLES (top, right, bottom or left) (25mm) deep. Using plastic anchor, drill 3/16” (4.5mm). Install into wood or steel: drill 9/64” (3.5mm). Mount using (4) M4 x 25mm screws. Mounting holes Mounting holes Install reed magnet, mark with pencil,...
