U L L E T I N

634

I N S T A L L A T I O N & O P E R A T I O N

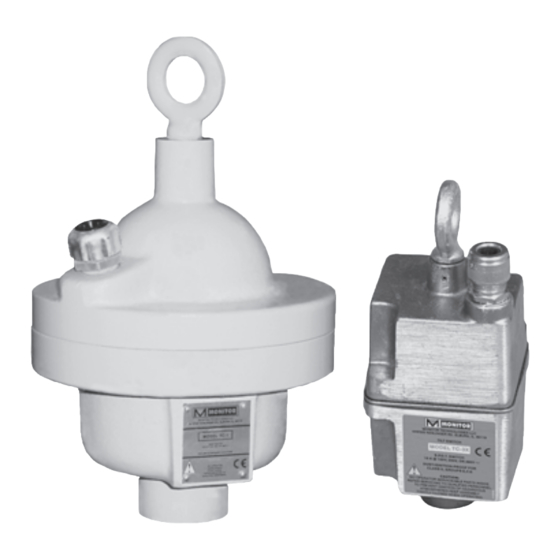

Tilt Switch Level Monitors

M o d e l T C - 1 & T C - 3

Thank you for purchasing a quality product manufactured by Monitor

Technologies LLC. We realize that you do have a choice of vendors

when procuring bin level monitors and we sincerely appreciate your

business!

This manual contains the information necessary to ensure a safe and

successful installation. Please read and comply with the section on page

4 of this manual pertaining to SAFETY. Doing so will ensure proper oper-

ation of the equipment and the safety of all personnel.

Before discarding shipping container, please inspect it thoroughly and

verify that all parts ordered are accounted for. Sometimes smaller parts

become stuck under carton flaps and other packaging materials.

In the event that information contained herein does not completely sat-

isfy your requirements or answer your questions, you may contact

Technical Support on our website www.monitortech.com, by telephone

at 800-766-6486 (630-365-9403), or by fax at 630-365-5646. If your tilt

switch ever requires service either in or out of warranty, please contact

us and obtain an RMA number prior to shipping the unit to us.

Table of Contents

Need help?

Do you have a question about the TC-1 and is the answer not in the manual?

Page 1 U L L E T I N I N S T A L L A T I O N & O P E R A T I O N Tilt Switch Level Monitors M o d e l T C - 1 & T C - 3 Thank you for purchasing a quality product manufactured by Monitor Technologies LLC.
Page 2 Using Extension Actuators (See Figure 3) P R E - I N S T A L L A T I O N C O N S I D E R A T I O N S Each tilt switch has a threaded bore on the assembly’s bottom where an extension actuator can be attached.
Page 3 C A L I B R A T I O N The tilt switches require no calibration or setup in the field. Each tilt switch is factory set to provide indication whenever the enclo- sure is tilted at 17˚ or greater from the vertical axis. Each unit will actuate at the 17˚...
Page 4 This warranty shall not apply to any product which is Wire Entry: 3/8" NPT cord connector repaired or altered outside of the Monitor Technologies LLC fac- Cord dia 0.25-0.38 in (6.4-9.6mm) tory, or which has been subject to misuse, negligence, accident, Operating Temperature: -40˚...
