Summary of Contents for Talkpool OY1110
- Page 1 OY1110 LoRaWAN Temperature and humidity sensor User manual Version 1.0 January 2019...
-
Page 2: Table Of Contents
Commands ..........................17 9.5.1 Measurement interval ......................18 9.5.2 TX group size ........................18 9.5.3 Reset device ......................... 18 Uplink query response ......................19 9.6.1 Uplink status report ......................19 OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 3: Disclaimer
This document represents information on products at the time of publication and is subject to change without prior notice due to product improvements or other reasons. Talkpool makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. -
Page 4: Warnings
• The product should not be exposed to extreme heat or open flame. • The device must not be exposed to harsh chemical agents or solvents. • The labelling of the product may not be changed, removed or made unrecognizable. OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 5: Environmental
For further information concerning your nearest recycling center, please contact your nearest local authority/town hall offices, your household waste collection company or the shop where you bought the product. OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 6: Product Description

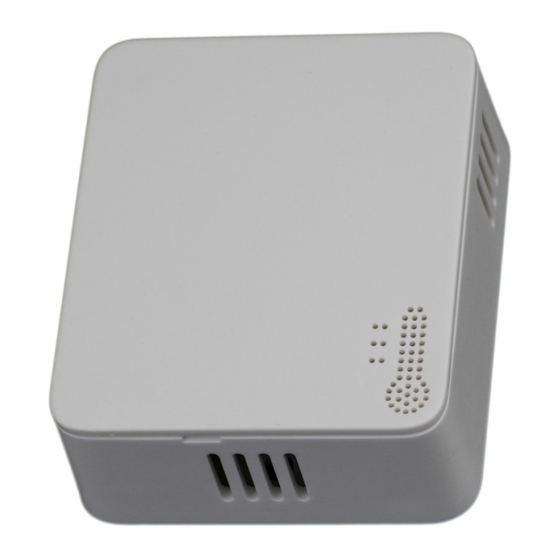

4 Product Description Figure 1: OY1110 Temperature and humidity sensor The OY1110 LoRaWAN Temperature and humidity sensor is designed to measure temperature and humidity in indoor environments. The sensor is intended for climate control, energy optimization, and damage preventions in attics and basements. It is optimized for reliable and secure measurements with more than 10 years life length. -
Page 7: Installation And Activation
3 seconds until the red LED makes two short flashes, make sure to not hold longer than 5 seconds. When the device has successfully joined the LoRaWAN network there will be a long (2s) flash. OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 8: Lorawan Configuration
Talkpool OUI range. The device is configured with device unique DevEUI and AppKey The device is default configured for OTA provisioning. Contact the Talkpool team for ABP configuration. The device follows the LoRaWAN standard related Join configuration parameters, such as RX1 and RX2 windows, RX2 downlink frequency etc. -
Page 9: Re-Join Functionality
The device tries to re-join the network if it has not heard anything from the network for 288 uplinks (3 days @ 15-minute message interval). The device requests and normally gets a downlink ever 64th uplink due to the ADRAckReq functionality. OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 10: Specification
Size 65 x 75 x 28 mm Weight Configuration Measurement intervals 1 minute – 1 week* Transmission intervals 1 minute – 12 weeks* *Default 15 minutes, configurable over the air OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... - Page 11 Unique App EUI available upon request Enclosure IP30 Certifications RoHS compliant LoRaWAN OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0...
-
Page 12: Product Life Length
7 Product life length The OY1110 LoRaWAN Temperature and Humidity sensor is design for 10+ years of maintenance-free operation. The product has high quality, high capacity batteries which support 15 min interval transmission at SF10 for 10 years. The product has soldered battery to prevent problems with corrosion and oxidation on the battery terminals, which is a common problem for batteries in field. -
Page 13: Unsolicited Uplink Status Commands
0x01: Data type 0x20: Status command 0x00: Normal startup The expected behavior is 0x01 20 00. If not contact Talkpool support. 9.3 Periodic measurement reports The sensors transmit periodic unsolicited measurement reports, either from a single measurement or grouping several measurements to one transmission to conserve energy. -
Page 14: Measurement Value
1/10 °C and the offset is 80 °C, which means the received value should be subtracted by 800 and then divided with 10 to get it in °C. See example in 9.3.5 OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 15: Grouping Header
0F 2E 3C CD 33 38 D2 39 31 F5 Total length = 10 bytes. Header = 1 bytes, each measurement = 3 bytes. Then number of measurements is (10-1)/3=3, i.e. 3 measurements OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 16: Downlink Commands And Queries
Downlink command network => device Field Bytes Value Description Note Type 0x01: Set 0x02: Query 0x03: Action Index Command Index Data As defined for Command Index only applicable for set-commands OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 17: Commands
See Ch 6.3 TxGroupSize * measurements. Sent if TxGroupSize >1. [ Uint12, (°C + 80)*10 Current measurement is sent first. Uint12 ] (% Rh +25)*10 0 – 3800 0 - 1500 OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0... -
Page 18: Measurement Interval
Measurement Interval. The default setting is 15 minutes. The measurement interval can be set between 1 and 10080 minutes (~1 week). It is also possible to order a batch of OY1110 with a different default setting. Example Set measurement interval to 5 minutes:... -
Page 19: Uplink Query Response
Port 1: 01 20 00 01: Data type 20: Status command 00: Normal startup For non-zero data, an error has occurred. Provide the error code in contacts with Talkpool support. OY1110 LoRaWAN Temperature and humidity sensor, User manual, Version 1.0...
