Medist MEVACS M90 User Manual

Medical electric suction unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2070
Medical electric suction unit
Ordering number: MEVACS M90 - 72001.02
User's Manual
D4O-0085-2-0
MEDIST s.r.o., Petrusovskeho 4, 066 01 Humenne, Slovakia
T/Fax:00421-57-7753276, E-mail:medist@medist.sk, http://www.medist.sk
T-QN-04/05-01-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEVACS M90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Medist MEVACS M90

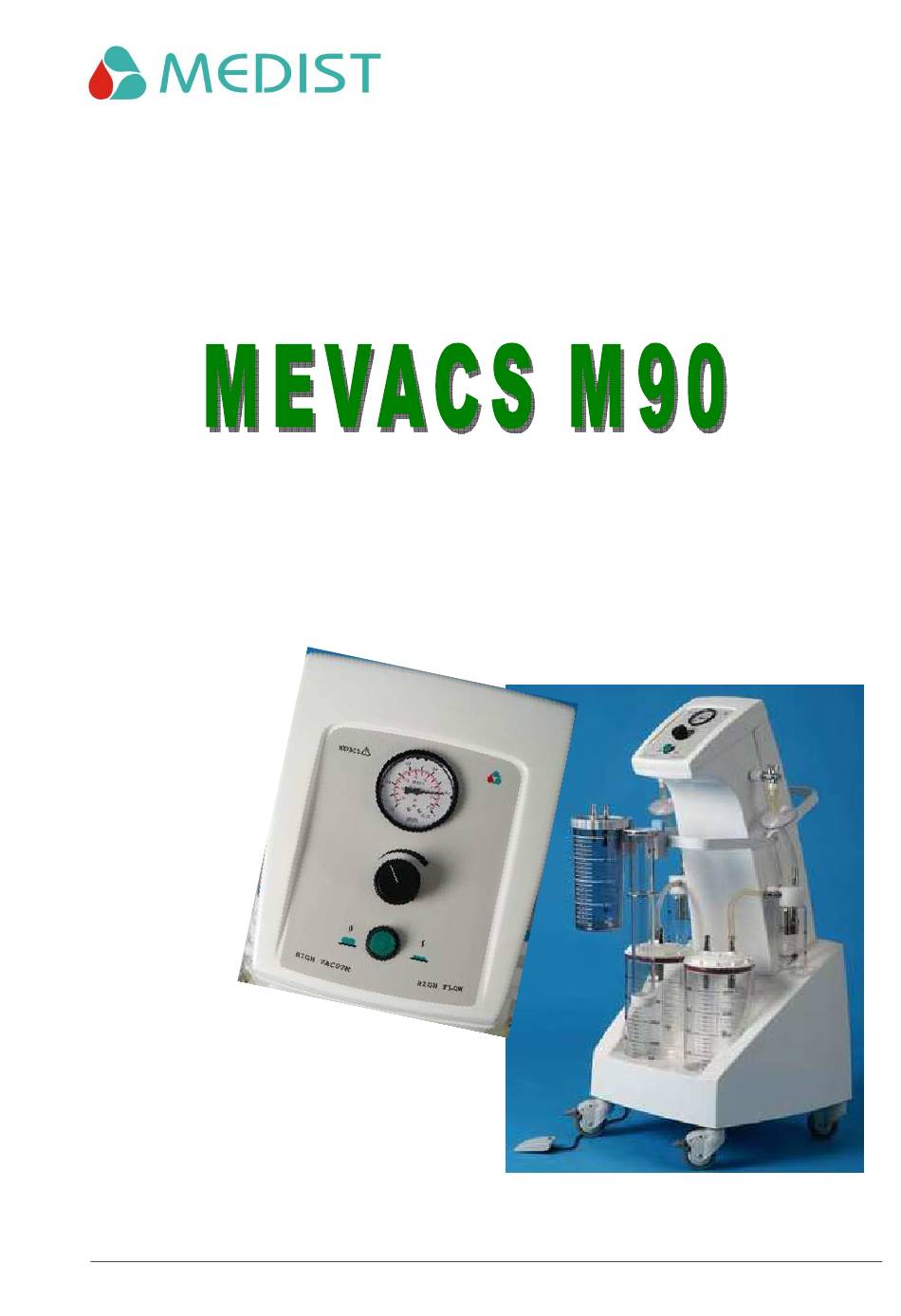

  • Page 1 2070 Medical electric suction unit Ordering number: MEVACS M90 - 72001.02 User's Manual D4O-0085-2-0 MEDIST s.r.o., Petrusovskeho 4, 066 01 Humenne, Slovakia T/Fax:00421-57-7753276, E-mail:medist@medist.sk, http://www.medist.sk T-QN-04/05-01-1...
  • Page 2 MEDIST device installation, its set-up, variations, service extension are made by MEDIST company or authorized service organizations the device is used in accordance with this instruction manual •...
  • Page 3 UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 • Device is protected by a safety valve into the lid of jar and safety valve into the lid of safety jar, and hydrophobic filter against secret sucking into the vacuum pump. It in spite of this secret is sucked, further using is possible as late as a control was made.

  • Page 4: Table Of Contents

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 Contents 1. INTRODUCTION ..............................5 1.1. A ..............................5 REAS OF USE 2. EQUIPMENT ................................5 2.1. B ...............................5 ASIC EQUIPMENT 2.2. S ..........................5 UPPLEMENTING EQUIPMENT 2.3. S : ......................6 AMPLE OF SOME VERSION SUCTION UNIT 3.

  • Page 5: Introduction

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 1. Introduction High-power fly suction unit MEVACS M90 is available for using into all kinds of surgery, gynaecology and liposuction. Oilless vacuum-pump guarantees long time for no service-need operation. Microbiological filter, silicone hoses and unbreakable vessels guard high hygiene at work.

  • Page 6: Sample Of Some Version Suction Unit

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 Suction adapter with suction interrupting for adults 42205.00 Suction adapter with suction interrupting for children 42206.00 STOP valve for adults - disposable 42201.05 STOP valve for children - disposable 42201.04 2.0 L jar TM, polycarbonate, with pressure-fit lid and metal tubing nipple 42011.11...

  • Page 7: Installation

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 MEVACS M90 - 1 x 4,0Lit jar + 1 MEVACS M90 - 2 x 4,0Lit jars MEVACS M90 - 2 x 4,0Lit jars + x 2,0Lit jar 1 x 2,0Lit jar MEVACS M90 - 2 x 4,0Lit jars +...

  • Page 8: Product Description

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 4. Product description The suction unit consists of the following: 1. vacuum meter 10. microbiologic hydrophobic filter 2. regulator valve 11. EURO rail adapter 3. mains switch 12. safety jar 4. 2.0 L jar for secretion 13.

  • Page 9: Unit Interconnection

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 0 / I Switch On-Switch Off Control Panel Turn the right - the vacuum is rising Control Panel Attention, see the User’s Manual Control Panel Foot Control Electric Label Fuse Electric Label 5. Unit interconnection 5.1.

  • Page 10: Switching On

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 6.3. Switching on The unit is switched on by means of ON-OFF switch. • position „0“ - the unit is off • position „I“ - the unit is on (the switch illuminates) Suction circuit - option and switching on You can choose left or right suction circuit.

  • Page 11: Changing Of The Secret Vessel

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 Note: If the suction unit meets the first test but not the second, leakage must be into outer suction circuit (incorrectly mounted a vessel lid, defective filter, hoses put on deficiently, released connectors,…) 6.5.

  • Page 12: Technical Data

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 Exchange: The filter is necessary replaced, as it is glazed with dirtiness or by liquid sucked. Maximum using time is 30 days. After ending of suction of infection patient we recommended immediately exchanged the filter.

  • Page 13: Small Faults Correction, Unit Trouble Shooting

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 immediately exchanged the filter and used up filter to disposal. It prevents spread of infection. The vessel content is decontaminated in a way utilised on site and the vessels including hoses are submerged into the disinfection solution.

  • Page 14: Regular Check

    UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 • • Leech security float into the vessel lid Turn the suction unit off and disconnect a hose carefully from the suction unit socket Vacuum pump engine operates, however a Hoses blocking into the inner suction system Determine failure source according to point ⇒...
  • Page 15 UP MEVACS M90 - D4O-0085-2-0 / 13.1.2009 Jars: B-15/16 2.0 L jar TM with silicone ring lid polycarbonate, autoclavable 121 (No: 42011.15) polysulfone, autoclavable 134 (No: 42011.13) safety valve in lid metal connectors B-17/18 2.0 L jar TM with screw metal lid polycarbonate, autoclavable 121 (No: 42011.14)
