Assembling procedure for M16
Tools: Wrench, Special tool for M16 (TL-FC32), Screw drivers
1 person

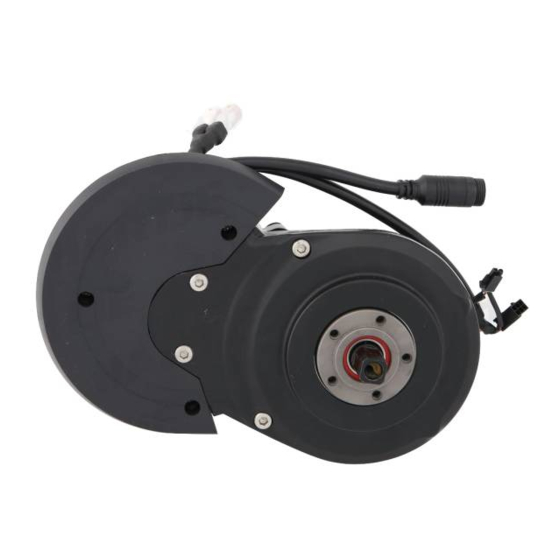

Assembling the new motor
1. put the stator of chain guard to the motor (Optional). If you do not put the chain guard, you need to
put a washer to the motor.
Without chain guard
2. put on the motor to the frame
This manual belongs to the new M16 series of TranzX. Powered by LogiX Line.
Page 1 of 4
Advertisement
Summary of Contents for TranzX M16
- Page 1 1. put the stator of chain guard to the motor (Optional). If you do not put the chain guard, you need to put a washer to the motor. Without chain guard 2. put on the motor to the frame This manual belongs to the new M16 series of TranzX. Powered by LogiX Line. Page 1 of 4...
- Page 2 M8*16；Torque= 130kgf) M6*11 M8*16 4. Put the patch cord of motor into the frame. 5. Connect the four cables This manual belongs to the new M16 series of TranzX. Powered by LogiX Line. Page 2 of 4...
- Page 3 Spring washer 7. Tighten the nut by the special tool (TL-FC32)，Torque=400kgf. 8. put on the chain ring and tighten the 5 screws (M4*6；Torque=70~90kgf) This manual belongs to the new M16 series of TranzX. Powered by LogiX Line. Page 3 of 4...
- Page 4 9. Put all the cable into the frame, and lock the cover of motor (4 screws) 10. put on the pedal of both side to the motor (torque: 450 kgf-cm) This manual belongs to the new M16 series of TranzX. Powered by LogiX Line. Page 4 of 4...
