Summary of Contents for Resort Umbrella Solutions Tilt the Pole

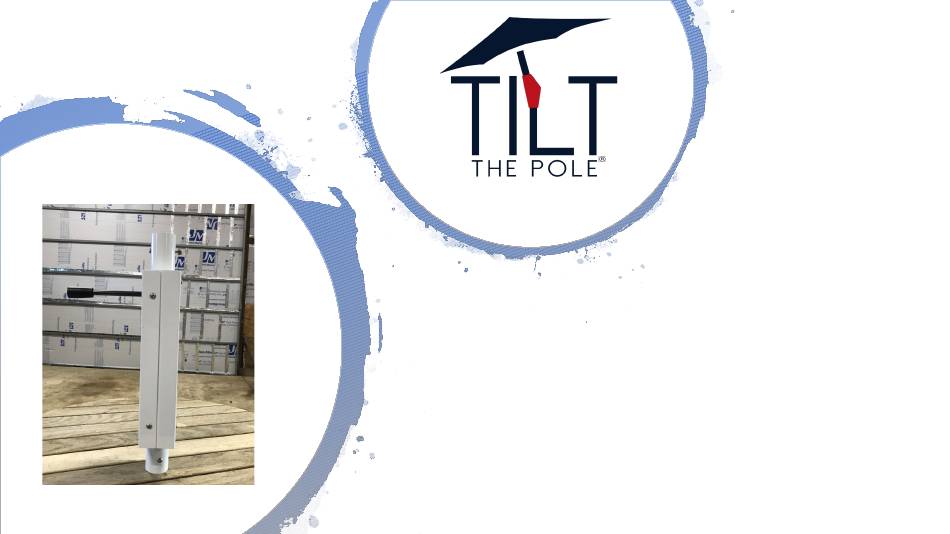

- Page 1 Installation and Operation manual Tilt the Pole – Version 3 Resort Umbrella Solutions | www.resort-umbrella-solutions.com | www.tiltthepole.com...
- Page 2 Tilt the Pole® – Version 3 TTP-V3 Congratulations on your purchase of Resort Umbrella Solutions Tilt the Pole®. This document will guide you through a basic understanding of operation and how to install with an approved umbrella. Only use Tilt the Pole with an umbrella that has been tested and approved by the professionals at Resort Umbrella Solutions.
- Page 3 Installation and Operation manual The current TTP-V3 model is designed for umbrellas with 1.5” diameter poles. Use only Tilt the Pole® – Version 3 umbrella manufacturers approved by Resort Umbrella Solutions. Warranty can be voided. TTP-V3 Step 2 Locate screws loosely shipped with TTP-V3...
- Page 4 Prepare to create upper post/lower post for TTP-V3 (Skip this step if you have purchased the umbrella from Resort Umbrella Solutions – go to STEP 9 ) Take the post shipped with your umbrella (standard table height or bar table height) and measure from the top (where the umbrella gets inserted) 8”...
- Page 5 Cut upper post for TTP-V3 (Skip this step if you have purchased the umbrella from Resort Umbrella Solutions- go to STEP 9 ) Take the post that has been marked at 8” and place in chop saw and line up the blade with 8”...
- Page 6 Measure hole location for upper post (Skip this step if you have purchased the umbrella from Resort Umbrella Solutions- go to STEP 9) Now that you have the upper post and lower post cut and cleaned up (free from burrs) you are ready to install the mounting holes.
- Page 7 Step 7 Measure hole location for lower post (Skip this step if you have purchased the umbrella from Resort Umbrella Solutions- go to STEP 9) With the end that was just cut (which is free from burrs) measure 3.63” and mark.
- Page 8 Insert holes into lower post and upper post (Skip this step if you have purchased the umbrella from Resort Umbrella Solutions- go to STEP 9) Now let’s install the holes. Take a ¼” drill bit and install it into the drill press. Accurately align the post...
- Page 9 Installation and Operation manual The current TTP-V3 model is designed for umbrellas with 1.5” diameter poles. Use only Tilt the Pole® – Version 3 umbrella manufacturers approved by Resort Umbrella Solutions. Warranty can be voided. TTP-V3 Step 9 Install upper post into TTP-V3 Take the upper post and install it into the TTP-V3.
- Page 10 Installation and Operation manual The current TTP-V3 model is designed for umbrellas with 1.5” diameter poles. Use only Tilt the Pole® – Version 3 umbrella manufacturers approved by Resort Umbrella Solutions. Warranty can be voided. TTP-V3 Step 10 Install lower post into TTP-V3 Take the lower post and install it into the TTP-V3.
- Page 11 Installation and Operation manual The current TTP-V3 model is designed for umbrellas with 1.5” diameter poles. Use only Tilt the Pole® – Version 3 umbrella manufacturers approved by Resort Umbrella Solutions. Warranty can be voided. TTP-V3 Step 11 Install lower post into base or in-ground mount Install TTP into a base or in-ground mount.
- Page 12 Installation and Operation manual The current TTP-V3 model is designed for umbrellas with 1.5” diameter poles. Use only Tilt the Pole® – Version 3 umbrella manufacturers approved by Resort Umbrella Solutions. Warranty can be voided. TTP-V3 Step 12 Install umbrella...
- Page 13 Installation and Operation manual The current TTP-V3 model is designed for umbrellas with 1.5” diameter poles. Use only Tilt the Pole® – Version 3 umbrella manufacturers approved by Resort Umbrella Solutions. Warranty can be voided. TTP-V3 Step 13 Operation of Tilt the Pole Once the umbrella is installed correctly into the TTP-V3 you are now ready to Maximize Shade by Tilting the Umbrella Pole.
- Page 14 Resort Umbrella Solutions. Warranty can be voided. TTP-V3 Step 14 Operation of Tilt the Pole throughout the day As the sun changes throughout the day you will want to adjust the shade. Before moving the umbrella always make sure that the area is clear.
- Page 15 Umbrella Solutions. Warranty can be voided. TTP-V3 Step 15 Wind and storms Do not use Tilt the Pole when winds are gusting above 22 mph. Keep umbrella folded down. Keep umbrella slightly tilted / unopened with winds above 22 mph.
