Summary of Contents for Seluxit SLX Heartbeat

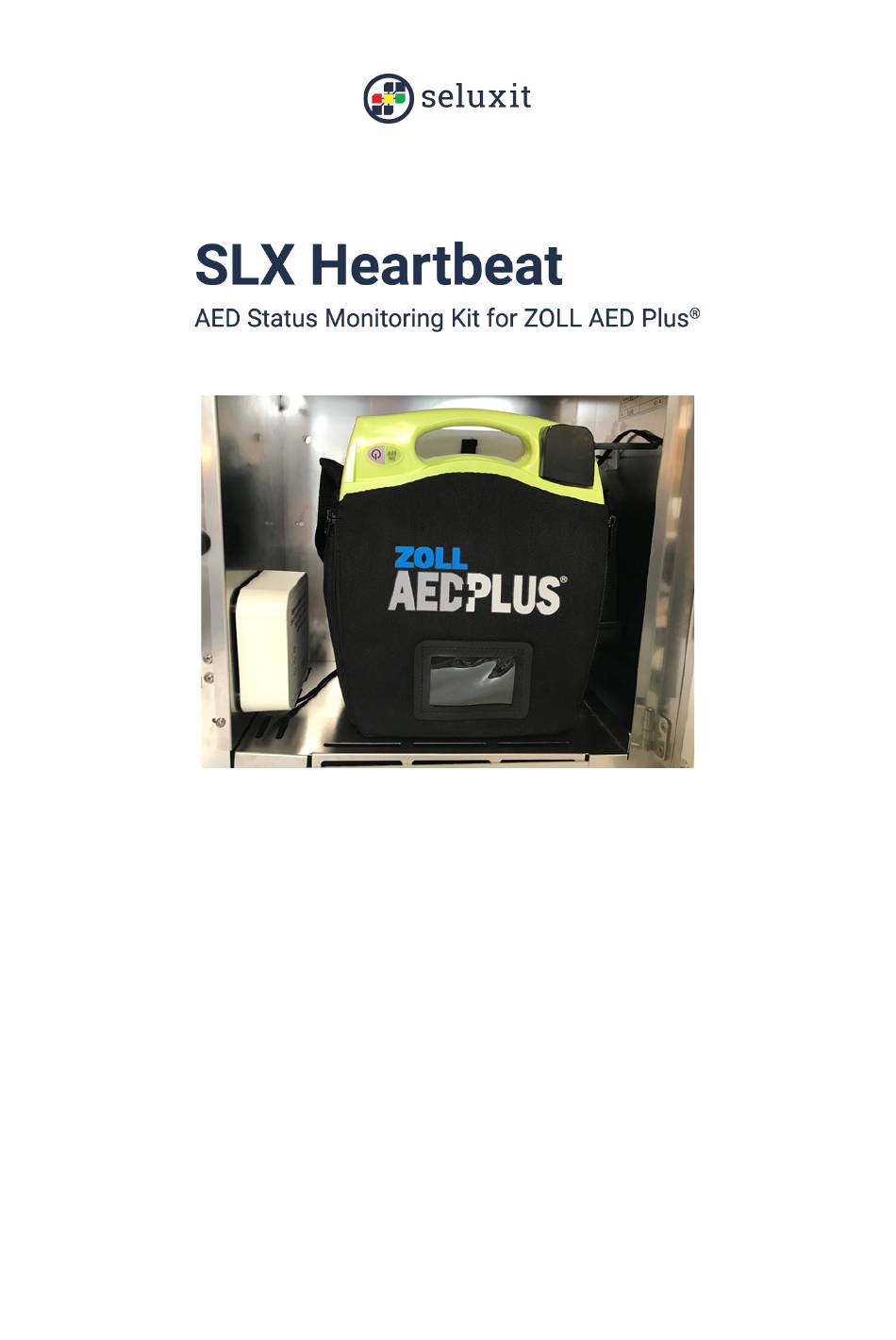

- Page 1 Installation Guide ...
-
Page 2: Table Of Contents
3 Unboxing 3 Installation Onboarding Troubleshooting SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 2 of 15 ... -
Page 3: Purpose Of This Document
Purpose of this Document This is the installation guide for SLX Heartbeat. The purpose of this document is to guide an electrician through the process of installing the SLX Heartbeat AED Status Monitoring Kit. Introduction The steps, preconditions and requirements described in this document need to be fulfilled in ... - Page 4 Cable-Tie Mount for installation 2x strips are included. The included cable-tie mount and 2 strips are used for neat installation of the Sensor Eye. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 4 of 15 ...
- Page 5 Battery for the Main Unit With all of these components accounted for, you are now ready to begin installation of SLX Heartbeat. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 5 of 15 ...
-
Page 6: Installation
5 minutes after the battery has been installed, the Main Unit automatically wakes from “service mode” and starts the onboarding process. If the Main Unit is not installed in the AED cabinet, it sends an error message to the Seluxit Cloud . ... - Page 7 30 seconds. You can stop the alarm by using a magnet placed on the door contact. You need to bring your own magnet for that purpose. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 7 of 15 ...
- Page 8 4 cm up from the bottom of the cabinet. Make sure that the Main Unit is installed so the cable jack for the Sensor Eye points downwards. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 8 of 15 ...
- Page 9 The glue is strong, so you have only one chance to properly mount the Eye Socket. 10. Place the AED in the cabinet. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 9 of 15 ...
- Page 10 The installation is now finished, and you are ready to continue on to the onboarding process. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 10 of 15 ...
-
Page 11: Onboarding
Main Unit is in “service mode”. 3. Press and release the button once to start the test phase. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 11 of 15 ... - Page 12 LED will blink until the Main Unit is connected. After that, this LED will light up constantly, indicating that the test was successful. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 12 of 15 ...
- Page 13 The onboarding process is now finished, and SLX Heartbeat is running. If you experience problems, you should read the troubleshooting section below. In this section, you can get input to how you can find and solve common problems.
-
Page 14: Troubleshooting
If the mobile signal isn’t okay → call the service company monitoring the AEDs to report the problem. Problem: Cloud LED doesn’t stop blinking. Investigate: Does the GPS LED light up? Action: SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 14 of 15 ... - Page 15 If you can do so, the mobile signal is okay. If the mobile signal isn’t okay → call the service company monitoring the AEDs to report the problem. SLX Heartbeat for Zoll AED Plus, Installation Guide (version 1.4, September 2020) 15 of 15 ...
