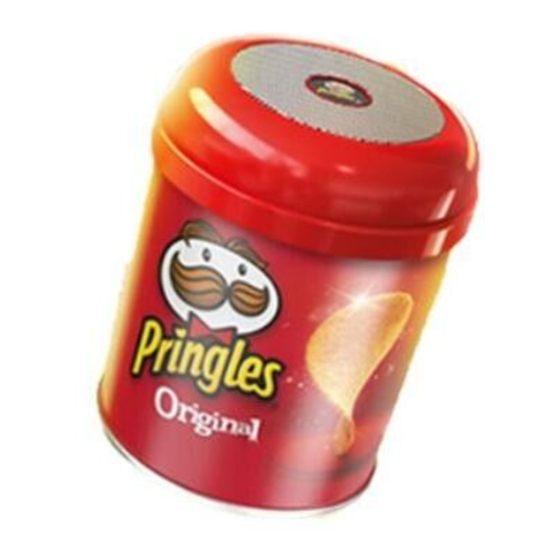

Smidt-imex Pringles SI-598 Operating Instructions

Please take a few moments to read through this manual and warnings for important information
about the speaker. This speaker is created to fit on the Pringles® can. The can should be used as the sound box.
This wireless speaker is compatible with most kind of Bluetooth® audio devices or with uses an audio cable
LED
AUX IN
POWER
INDICATOR
MICRO USB
DC5V
THIS SPEAKER IS NOT A TOY! WARNING! CHOKING HAZARD - SMALL PARTS INSIDE,
PRECAUTIONS
Before placing the speaker onto the Pringles® can, empty and clean the can.
•
Do not use alcohol, benzine or thinner to clean the unit.
•
Do not use the unit in places which are extremely hot, cold, dusty or humid.
•
Do not keep the unit near a heater.
•
Do not expose to direct sunlight.
•
Do not open the battery lid with wet hands.
•
Do not loosen the 3 screws locking the speaker base.
•
Be cautious, high volume levels may cause permanent damage to the hearing.
•
Do not insert any object into the Pringles® can.
•
Avoid overextending and pulling the speaker.
•
Do not put loose batteries in your pocket or purse.
•
Do not remove the battery label.
•
WARNING! CHANGES OR MODIFICATIONS TO THIS UNIT NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

BATTERY INSTALLATION

•
To open the battery lid, first loosen the screw using a screwdriver or a small coin. Then, push the latch inwards and pull the lid open.
•
Insert 3 x AAA size, DC 1.5V batteries ("R03/UM4") in proper polarity and position.
•
Close the battery compartment and lock the latch with the screw.
•
Do not try to pull the screw lift off the lid. It is designed not to loosen from the lid.
•
Note: in case of battery and DC power source are used at the same time, the unit will default to operate from the DC power input.
It will not damage the batteries by automatically cut-off the current to the batteries.

BATTERY WARNINGS

•
Place the batteries in correct polarity and position.
•
Misplacement of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst.
•
Do not mix different types of batteries. e.g. Alkaline with Carbon Zinc
•
Batteries may explode or leak and cause burn injury if recharges, exposed in fire or disassembled.
• Do not mix old batteries with new ones. Replace them all at the same time.
•
Remove the batteries if unit will not be used for a longer period of time.
•
Alkaline batteries are recommended to use for longer listening.
•
When the batteries are low, the sound will be distorted or unstable. In this case, replace all the batteries with new ones.
•
Depleted batteries should be removed from the unit.
•
The supply terminals can not be short-circuited or overloaded.
•
Non-rechargeable batteries are not to be recharged.
•
Rechargeable batteries are only to be charged under adult supervision.
•
Rechargeable batteries are to be removed from the speaker before being charged.
•
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
•
Batteries cannot be charged via the micro USB connection.
LISTENING TO YOUR AUDIO DEVICE (MP3....)
Power ON / Power OFF
•
Remove the plastic protection sheet on top of the speaker.
•
Push the power button to turn the speaker on until a beep tone is heard.
•
The LED will light up with blue light and starts flashing every 1 second.
•
The blue LED indicate faster flashing and a beep tone afterwards signify the unit is now ready to be paired.
To turn off the unit, push the power button again until the LED indicator light goes out.
•
Please note, always make sure to turn on the speaker first before pairing to the audio device.
Bluetooth® Play Mode
•
Play your audio wireless with a Bluetooth® enabled device.
•
The range during the initial pairing process should not be more than 1 meter.
•
Once paired, playing range is within 8 meter. Note that obstructions may result in a shorter range.
•
Follow the pairing instructions of your smartphone or other Bluetooth® device.
•
Select "device name" from the searching list and press OK to pair the speaker. Device name can be found at the back case of the
speaker and no password is needed.
•
When pairing is completed, you will hear a beep tone and see a blue LED light flashing every 3 seconds.
•
Now the wireless speaker is ready for listening to music.
•
After this first pairing, the devices will connect automatically.
•
Adjust the volume and select a song from your audio device(s).
•
The speaker can be used without batteries via the micro USB plug.

Aux./Line-in Play Mode

In case Bluetooth® is not preferred to connect with the speaker, the speaker is also compatible with 3.5mm audio
•
cable (not included). Please only use this type of cable to connect.

ADJUSTING THE VOLUME

• Adjust the volume level from your audio device.
• Make sure the sound starts from the lower volume level.
• Turn off the Mega Bass function and lower the volume level of your audio device, as it may be too loud and cause sound distortion.

SPECIFICATION

Speaker Type: 57mm Full Range Dynamic Mylar Speaker
Speaker Impedance: 6 ohm / 1W
Aux. Line In: 3.5mm Stereo Mini Jack
Output Power: 1 Watt (Rated)
Frequency Response: 200-20K Hz
Bluetooth® Version: V4.1
Bluetooth® Profile: A2DP, GAVDP
Power Indicator: 3mm White Base LED, Blue Color
Operating Frequency: 2.402 GHz - 2.480 GHz
Battery: 3x AAA/R03/UM4 Size, DC 1.5V (Batteries Included)
DC Jack: Micro USB DC5V / 1A
Model No. SI-598 Made in China
Designed, produced and imported by :
Smidt-imex bvba
Middelmolenlaan 148 - 2100 Antwerp - Belgium
www.globalpromotionalgifts.com
In case the presence of excessive electrostatic charges around the speaker in use have
interrupted the wireless connection, please reconnect the speaker.
Batteries and electronics contained in the product may be harmful to the environment.
Do not dispose of this item in household waste.
Please use your local recycling center or collection system as appropriate for disposal of this item.
Please retain the instruction leaflet for future reference since it contains important information.
Pringles® is a registered brand of the Kellogg Company.
If you need further instructions or support, go to www.pringles.com and find the service line number for your country.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such
marks by Smidt-imex Asia Ltd. is under license. Other trademarks and trade names are those of their respective owners.

WIRELESS SPEAKER

OPERATING INSTRUCTIONS
with 3.5mm audio plug (not included) connected to a MP3 player.
SPEAKER
POWER
SWITCH
OFF ON
NOT SUITABLE FOR CHILDREN UNDER 3 YEARS.
Manufacture code: 08-2016
SCREW
BATTERY LID
LATCH
GB
BATTERY
CONFIGURATION
