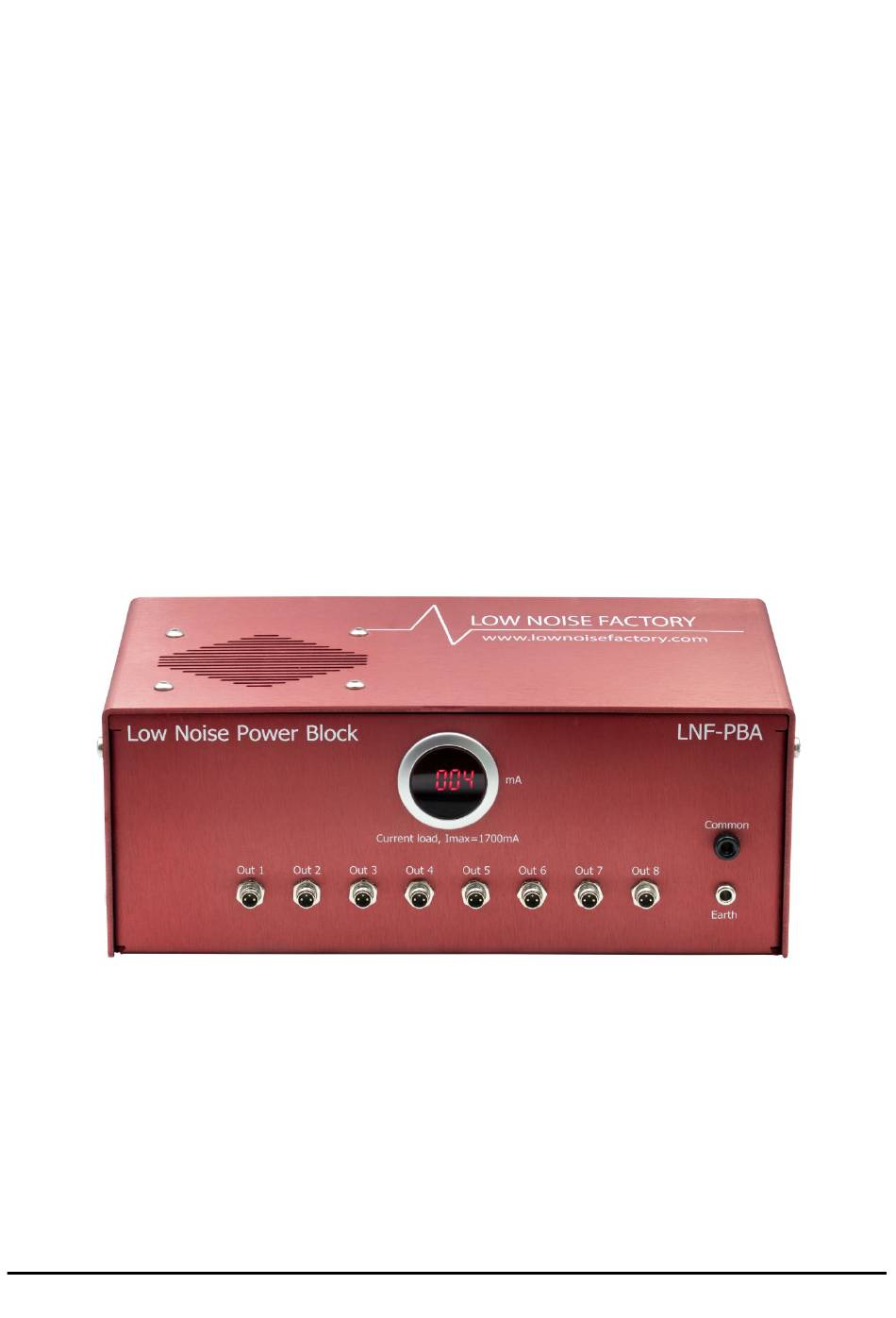

- Page 1 Rev:2019-08-27 Manual for LNF-PBA Low Noise Power Block Low Noise Factory • www.lownoisefactory.com • info@lownoisefactory.com...
-
Page 2: Table Of Contents
Table of Contents Contents Introduction ......................3 Specifications......................3 Safety information ....................4 Installation ......................5 Mains voltage and fusing ..................6 Using the instrument ....................7 Maintenance and service ..................8 Pinout ........................9 Low Noise Factory • www.lownoisefactory.com • info@lownoisefactory.com... -
Page 3: Introduction
P a g e 1. Introduction The LNF-PBA is a ±12V low noise linear power supply designed to power LNF’s line of HEMT power supplies. It accepts a mains voltage of either 115 or 230 VAC selectable on the rear panel. -
Page 4: Safety Information
Before first use, make sure the mains voltage selector is set in the correct position. Readout of current load from +12V Earth and Common access 8x ±12VDC output connectors Mains voltage indicator Mains switch AC inlet Low Noise Factory • www.lownoisefactory.com • info@lownoisefactory.com... -
Page 5: Installation
The connection to the mains must be done with a cord compatible with IEC 60320-C14 with an earth prong. The instrument must be connected to an outlet with earth. Low Noise Factory • www.lownoisefactory.com • info@lownoisefactory.com... -
Page 6: Mains Voltage And Fusing
5. Rotate the fuse assembly 180 degrees and reinsert it into the power entry module. 6. Close the hatch. 7. Double check that the mains voltage indicator shows the right voltage. Fuse assembly Fuse assembly hatch Low Noise Factory • www.lownoisefactory.com • info@lownoisefactory.com... -
Page 7: Using The Instrument
Fuses 6. Using the instrument The LNF-PBA uses a transformer, rectifiers and regulators to convert mains AC to ±12V DC needed for LNF’s HEMT power supplies. There are 8 identical output connectors on the front panel providing the ±12V to the HEMT power supplies. All 8 outputs are connected in parallel and are not isolated from each other. -
Page 8: Maintenance And Service
There are no serviceable parts in the instrument. If the ventilation holes are clogged with dust, disconnect the instrument from the mains supply and use a dry cloth to gently clear the ventilation holes. Low Noise Factory • www.lownoisefactory.com • info@lownoisefactory.com... -
Page 9: Pinout
P a g e 8. Pinout +12V -12V 3-Pin male M8 connector seen from outside LNF-PBA chassis Low Noise Factory • www.lownoisefactory.com • info@lownoisefactory.com...
