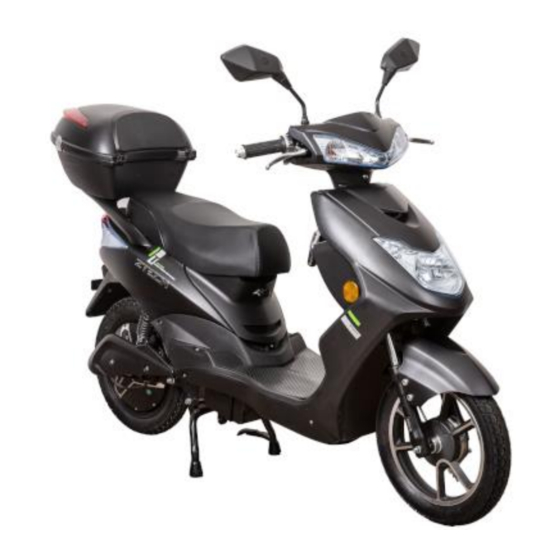

Summary of Contents for ZTECH ZT-27
- Page 1 Electric Power Assisted Scooter Manual WWW.ZTECHBIKE.COM...
- Page 2 Preface Dear Users: Our company makes ZTECH brand electric scooter become a kind of environmental protection type leisure traffic tool instead of walk with elegant, beautiful shape and modern luxurious feeling by virtue of novel management model, abundant technical force, perfect quality system, first-class workmanship equipments and an excellent professional team of technology.
-
Page 3: Riding Safely
Matters needing attention to users Please note the following important safe matters in order to ensure your safe driving and use this scooter better. 1.Please read the user manual carefully and check whether all spare parts is perfect before driving in order to ensure your safe driving. - Page 4 WARNING! The product is not allowed to use by handicapped people! Check before driving Please do a check before driving in order to ensure your safety of driving. • Open power lock, check whether all indication of scooter head is normal, brake power cut is effective? •...
- Page 5 1. Front light 8. Rear hub brake 2. Charger 9. Rear shocker 3. Seat 10. Front fork 4. Rear carrier 11. Front brake 5. Rear light 12 Front mudguard 6. Rear fender 7. Brushless motor Profile for characteristic of product ●Tri-dimensional design body is carried out a scientific design to get the best riding effect according to body engineering and esthetics.
- Page 6 area. Part of electric quantity will be consumed if turn on headlight when drive in the dark, therefore that will cause continual mileage is reduced correspondently. Please note that the lighting time of headlight in the dark should be controlled suitably. In order to ensure the life of battery, the users with enough conditions should keep charging as soon as possible anytime after use to make the battery keeping in full status.
- Page 7 About Charging Before riding the electric scooter for the first time, you must charge the batteries for 4-6 hours using the supplied charger. To charge, remove the protective cover from the charging socket. Then plug in the charger into the charging socket, before plugging the charger into a wall outlet.
- Page 8 When the battery is being removed for charging After the battery box is removed, as we mention before, please notice that the electrode “+” “-”can never be touched by hands especially wet hands and the electrodes are also prohibited to be touched by other metal conductor! Do not charge the battery up-side down, otherwise the life time of the battery will be severely affected.
- Page 9 under use. • During charging, if peculiar smell is smelt or the temperature is too high, please stop charging immediately and send it back to sales department of maintenance department. WARNING! The attached cables of the battery charger can be used for the battery-charger only! About riding Once you have completed the initial charge you are ready to ride.
- Page 10 Don’t forget to shut off power and take off the key. Maintenance and service For the safety of driving, please keep your scooter in optimal condition at the same time and carry out periodical maintenance and washing. Items for periodical maintenance and self-checking •...
- Page 11 driving miles obviously (1) socket of charger falls off or loose (1) tighten socket and connector(*) Charger doesn’t between plug and socket (2) change the fuse charge (2) burnt fuse in battery box (3) welding the connection wire(*) (3) wire connection of battery falls off (1) abrasion of motor bearing (1) change the bearing (*) Electric wheel...
