Comtest Networks 2870 Installation Manual

Multi-dwelling pots splitter

Model 2870 Multi-Dwelling POTS Splitter Installation Guide

Comtest Networks Inc.

This guide provides the basic information required to install the Comtest Model 2870 Multi-Dwelling POTS

Splitter Shelf in a Multi-Dwelling location.

Installation

The 2870 requires 10¾" x 8" of mounting space. Four wood screws (not supplied) are typically required for

mounting on a wall. Comtest recommends the use of #8 wood screws, the length of which is determined by the

thickness of the wood surface on which the 2870 is installed.

PIN 1

POTS Connector

LINE Connector

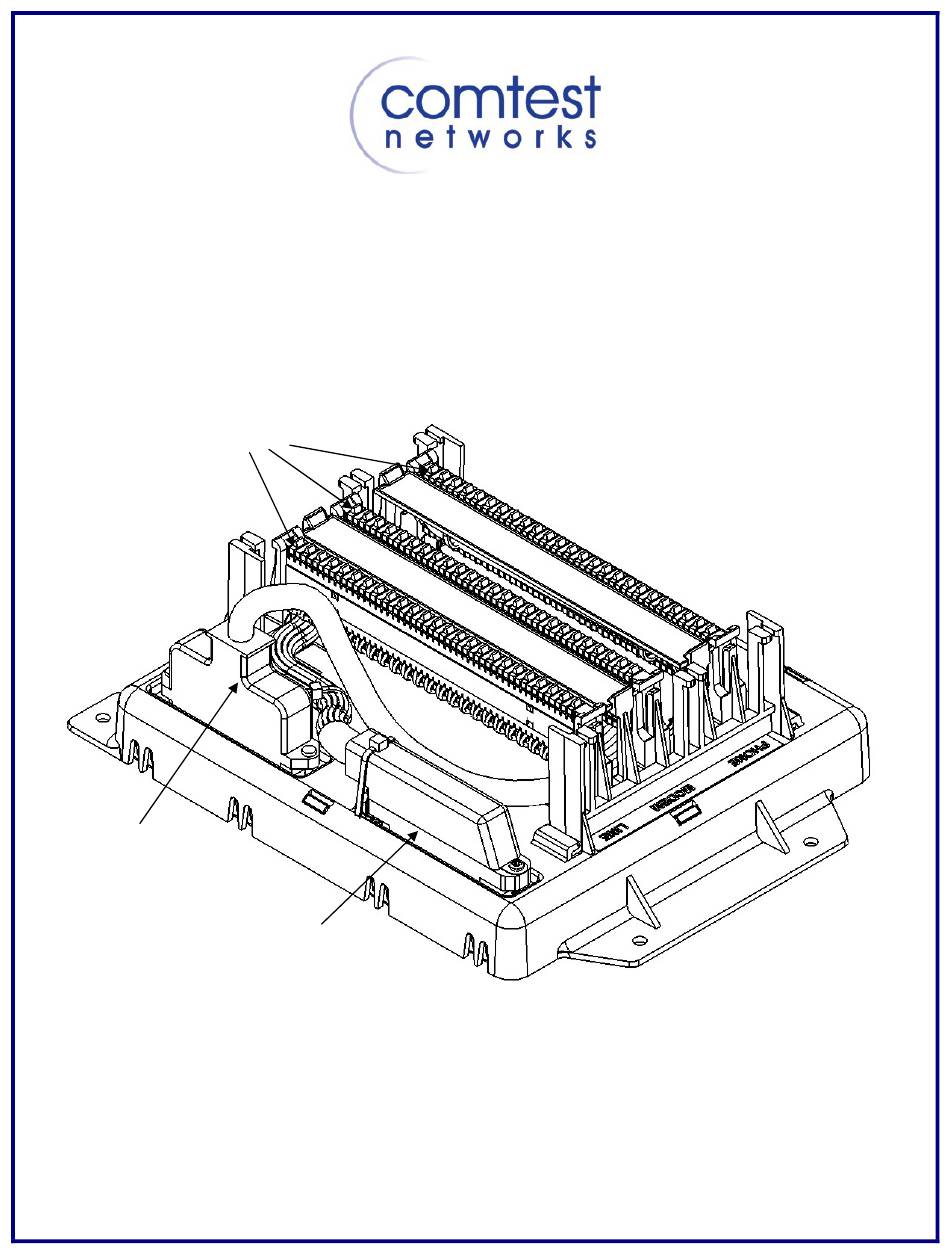

Model 2870 standard configuration with punch downs

The 2870 cabling configurations will vary depending on the installation. However, the physical interface to the

Front Panel connectors are standard 50-pin RJ-21 type receptacle connectors. Each 2870 provides 25 POTS

splitters terminated on each 50-pin connector.

Table of Contents

Do you have a question about the 2870 and is the answer not in the manual?

Page 1 Splitter Shelf in a Multi-Dwelling location. Installation The 2870 requires 10¾” x 8” of mounting space. Four wood screws (not supplied) are typically required for mounting on a wall. Comtest recommends the use of #8 wood screws, the length of which is determined by the thickness of the wood surface on which the 2870 is installed.
Page 2 2870 splitter shelf using the RJ-21 connector designated ‘LINE Connector’. • Cables to and from the subscribe premises enter the 2870 splitter shelf via the PHONE RJ- 21 connector, designated ‘PHONE Connector’ If the optional Punch Down Blocks are provided, the PHONE connections are extended from the PHONE Connector to the ‘PHONE 25 Pair to Subscribers’...
