Cuscini Design Cabrio Instructions

Cabrio Terrace Assembly
This annex provides supplementary instructions to the
Cabrio installation guide for the assembly of the Cabrio
Terrace configuration. Please refer to the Cabrio installation
guide when necessary. The struts and gutter system
installation instructions are covered in separate annexes.
Instructions
1
Pivot
Hinge
(4 places)
Stub Post
Assembly
EX.P.04-A2
EX.P.04-A2
View A-A
(Top View)
www.cuscini-design.com
2 x EX.P.04-A2
Stub Post Assembly
Long Beam
1 x EX.SCT.20-A
Roof
Lever Arm
(2 places)
View A-A
Top View
Remove the
cover door
to install
Gutter System
(2x1 Shelter Configuration)
Pivot
Hinge
(4 places)
Alternate Arrangement
EX.SCT.20-A
Long Beam

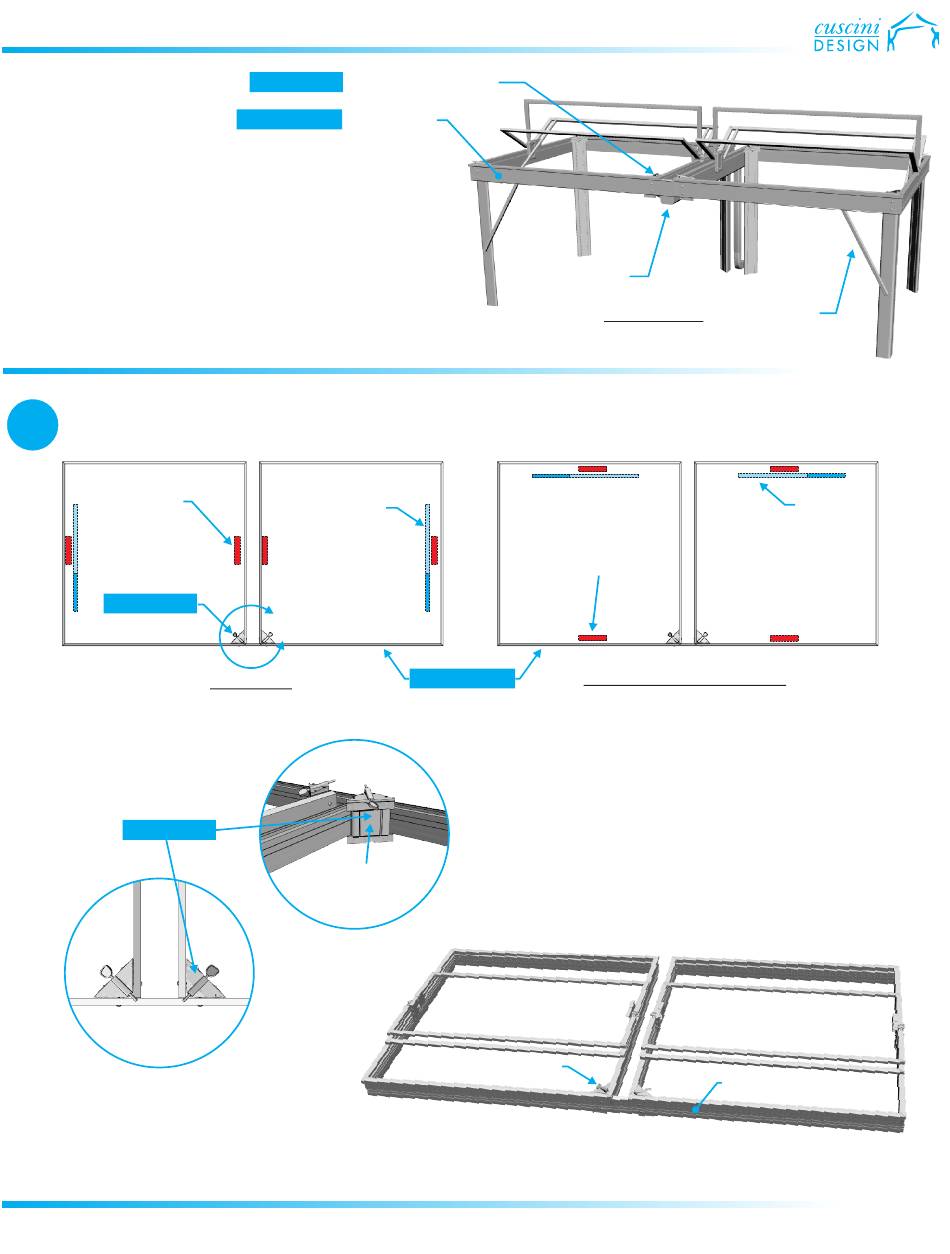

Follow instructions from Steps 1 through 6 in the
Cabrio installation guide for assembly of the beams
and roof framework. Note that the supplied long
beam [EX.SCT.20-A]
Install the two dummy posts
location shown in the adjacent diagrams. See Step
7 in the Cabrio installation guide for instructions
how to install the corner posts.
Stub Post Assembly
Assembled Roof Framework
Strut
Cabrio Terrace
Lever Arm
(2 places)
replaces two smaller beams.
[EX.P.04-A2]
Long Beam
Roof
at the
