STEP 1 - VALANCE INSTALLATION (If Ordered)
NOTES
• Valance must be installed as a first step before the Roller Shade. If you didn't order a Valance proceed to Step 2.
A - For INSIDE mount divide valance width into thirds
mark 2 screw holes on the underside of the valance.
Drill through cover to secure the valance in place.
1/3
distance
REQUIRED TOOLS FOR INSTALLATION
OPEN ROLL, MODELS Z-125 | Z-150 | Z-175
Level
COMES WITH YOUR KIT
Screws
Clutch-end
Bracket

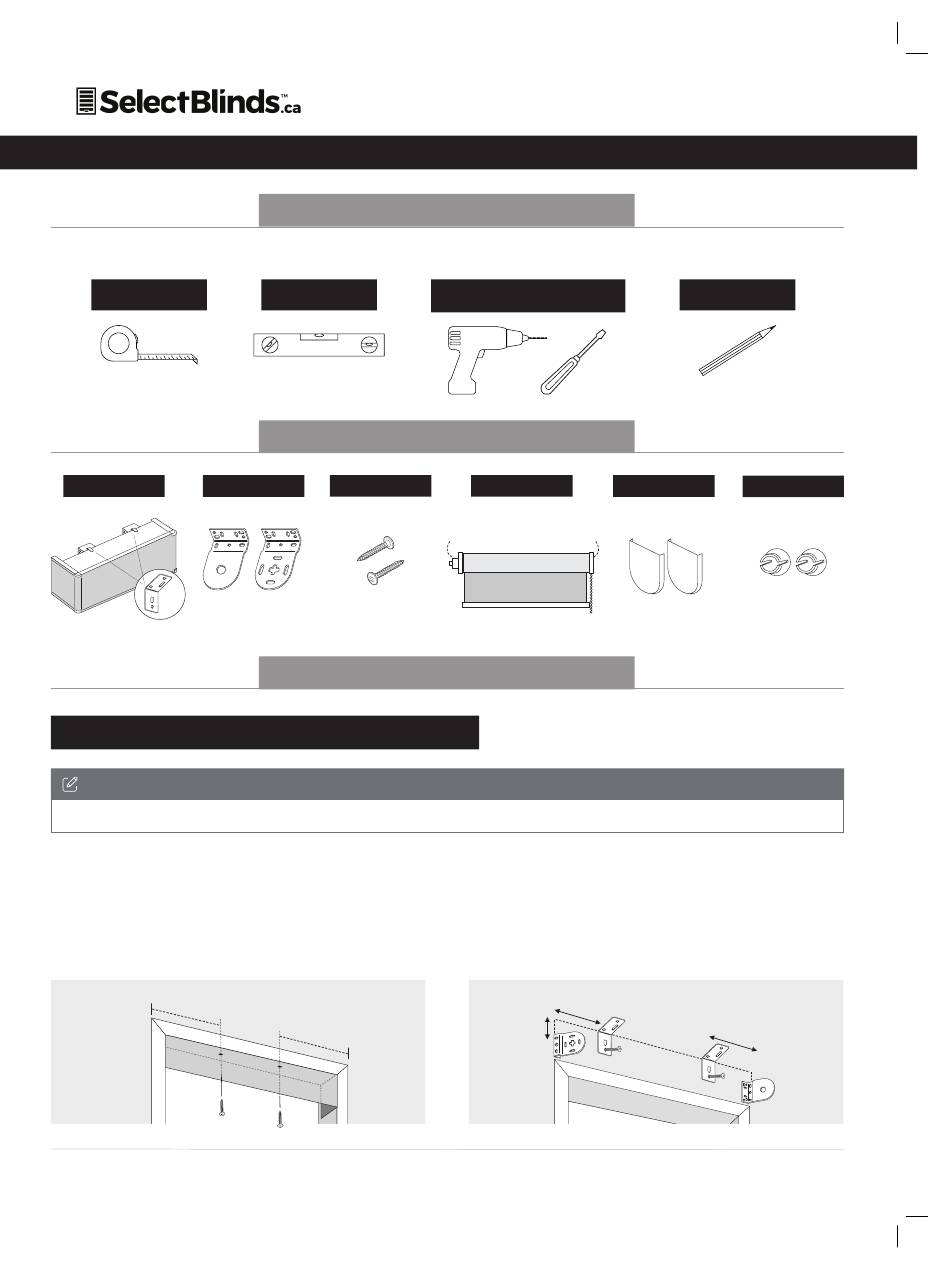

ROLLER SHADE INSTRUCTIONS
1/3
distance
Power Drill / Screwdriver
Roller Shade
Motor | WandControl
| SpringDrive
TM
TM
Idler side
Control Side
B - For OUTSIDE Valance, mark the location of the
shade mounting brackets with a pencil (see step 2), and
measure 1/2" from the top of the bracket to note the
location of the Valance L bracket. L brackets should be
installed 5"-8" from each end of the valance. Additional
bracket(s) may be necessary and should be evenly
spaced between the two ends brackets if required.
5"-8"
1/2"
Roller Shade Instructions
Pencil
End Caps
Ball Stoppers
If Ordered
For Chains Only
5"-8"
Roller Shade Instructions
|
1
