Summary of Contents for SKIPLY Smilio S

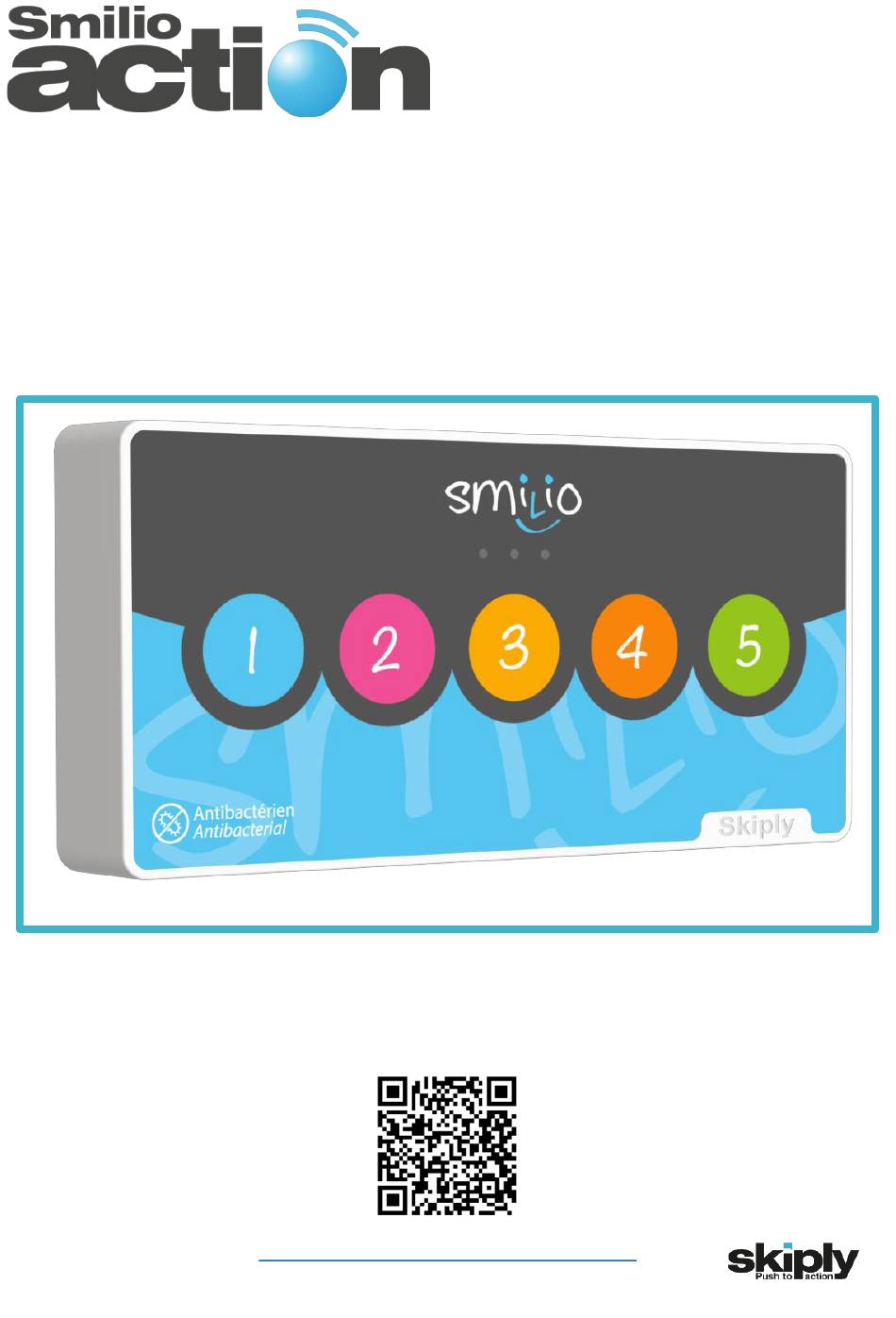

- Page 1 User Manual Smilio S - FW 2.0.1.4 Test our Smilio S simulator https://skiplyfrance.github.io/simulatorS.html...
- Page 2 Technical support: +33 4 58 16 01 53 www.skiply.eu contact@skiply.org All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 2 ~...
-
Page 3: Table Of Contents
Config settings ......................... 16 14.2. Downlink Query Frame ....................18 All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 3 ~... - Page 4 Sigfox® Ready certificate RC3 ..................33 21.4. IP 65 Certification ......................34 All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 4 ~...
-
Page 5: Legal Information
Date Reference Description Author Version January 2020 NUS_001 Initial C.S. All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 5 ~... -
Page 6: Overview
Smilio S with seal Battery lid 6 Philips screws for battery lid All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 6 ~... -
Page 7: Requirements
For more information and for sales office addresses, please visit: https://www.skiply.eu/ All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 7 ~... -
Page 8: Lora™ Or Sigfox® Configuration
• For SIGFOX® use and configuration, place the jumper on its pin headers. All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 9: Insert Or Replace Batteries
NOTE: Do not dispose of batteries in a fire. All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 10: Boot Sequence
No payload / No valid payload / out of network coverage LEDs lighting sequence All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 10 ~... -
Page 11: Sigfox® Downlink Query
“2”. There is no obligation to activate the acknowledgment. All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 12: Manual Reset
4 = DDDD incremental counter button 5 = EEEE incremental counter All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 12 ~... -
Page 13: Data Frames
0c80 = Battery voltage in idle mode: 3200mV 0c80 = Battery voltage in emission (Tx): 3200mV All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 14: Normal Data Frame
0010 = incremental counter 5 hexadecimal value (=16 decimal value) All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 14 ~... -
Page 15: Hall Effect Sensor Activation Data Frame
For special running mode (pulse, code), format and content data frame are described in detail below. Please refers to the relevant paragraphs. All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 16: Config Settings & Setting Frames
(02) is sent out automatically every “dtx” minutes (backup function). All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. - Page 17 LoRaWAN force DR0 at join procedure (0: disabled, 1: enabled) LoRaWAN ADR bit (0: disabled, 1: enabled) All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 17 ~...
-
Page 18: Downlink Query Frame
14.2. Downlink Query Frame Each time Smilio S is turned on, or the user pushes the Reset button, Smilio S sends a frame with its settings. The frame format is: 04 UU VVVV WW XX YZ TT 04 = Downlink query frame “csc”... -
Page 19: Downlink Result Frame
“tpbq” hexadecimal value (expressed in seconds): from 0x01 to 0x3C TT = All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 19 ~... -
Page 20: Online Downlink Frame Configurator
To help you to generate a valid downlink frame, you can use our online configurator. Please visit our website at: https://skiplyfrance.github.io/configurator.html All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 20 ~... -
Page 21: Settings Description
Force DR0 at join procedure - Useable only with LoRaWAN If « Force DR0 » parameter is enabled, Smilio S force the data rate to the most robust during the join procedure (DR0=SF12BW125). In difficult environments such as a low SNR, a low signal area, or if DR0 is enabled, the join procedure will be shorter and more efficient. -
Page 22: Piggyback - Useable Only With Lorawan
When the Piggyback is enabled and the response to the MAC command is in the MAC header (<= 15 bytes), the Smilio S keeps the answer in his memory and will add it to the MAC header when the Smilio S transmits its next payload. -
Page 23: Running Mode Description
5 hexadecimal value (=1 decimal value) – button 5 pushed 0001 = All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 24: Running Mode 7
In some cases, the uplink payload may have been received by the network server, but the acknowledgment was not received by Smilio S. All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 25: Running Mode 8: Pulse
5 hexadecimal value (=1 decimal value) – button 5 pushed 0001 = All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 26: Running Mode 9: Code
After each sent frame, the YYYY and TT counters are reset in anticipation of the next code entry and frame sending. All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. - Page 27 The following data frame is sent: 33 TT YYYY FFFFFF 112233 And so on… All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 27 ~...
-
Page 28: Dimensions
PET X140 / X190. HB UL94 Ink GREENGUARD Gold Certification All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 28 ~... -
Page 29: Safety Recommendations
European directives 2014/35/UE and RED 2014/53/EU All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 29 ~... -
Page 30: Declaration Of Conformity
• ERC 70-03 Recommendation: Relating to the use of Short Range Device (SRD) All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. -
Page 31: Certificates
21. Certificates 21.1. Sigfox® Ready certificate RC1 All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 31 ~... -
Page 32: Sigfox® Ready Certificate Rc2
21.2. Sigfox® Ready certificate RC2 All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 32 ~... -
Page 33: Sigfox® Ready Certificate Rc3
21.3. Sigfox® Ready certificate RC3 All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 33 ~... -
Page 34: Ip 65 Certification
21.4. IP 65 Certification All information and data contained in this document are the exclusive property of SKIPLY SAS and may neither be used nor disclosed without its prior written consent. ~ 34 ~...
