Summary of Contents for MyStemKits robo R2

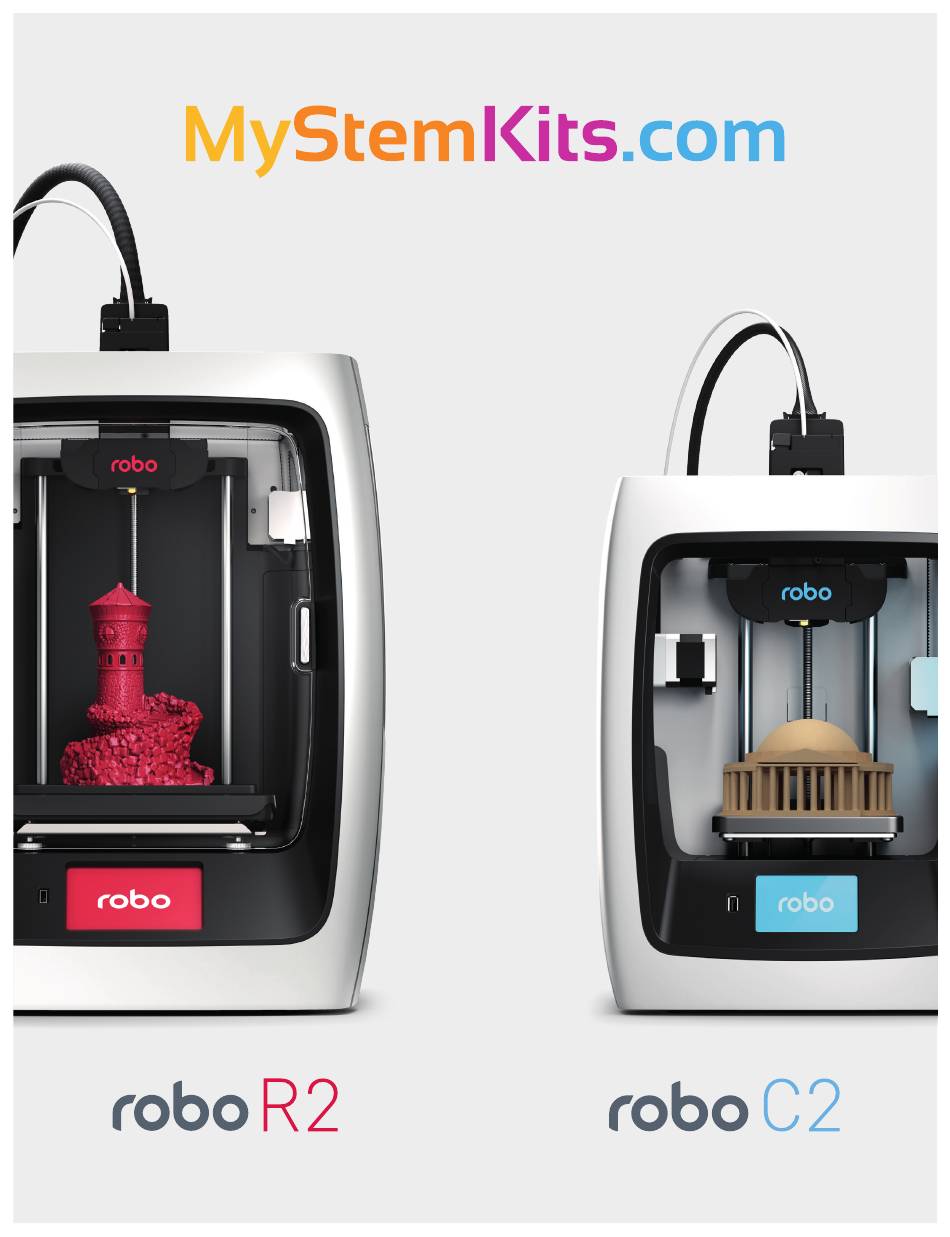

- Page 1 Installation Manual Installation Manual v2.0 2018...
- Page 2 Install MyStemKits Plugin on your printer Before printing from the MyStemKits website, you’ll need to connect your printer to the MSK cloud.
- Page 3 1 Install MyStemKits Plugin on your printer 1. Connect to Robo web dashboard (Octoprint) by typing in your Robo C2 or R2’s IP address into your web browser. For help connecting to Robo web dashboard, click here. 2. From Octoprint, select SETTINGS from the top bar and then select PLUGIN MANAGER. Click on GET MORE to install a new plugin.
- Page 4 3. Once Octoprint has restarted, a message will appear that will tell you to reload the page. Click RELOAD NOW. 4. After the page reloads, navigate back to the SETTINGS screen and scroll down under Plugins to select MYSTEMKITS. Ensure that “Verbose (debugging) logging”...
- Page 5 1 Install MyStemKits Plugin on your printer 5. Make sure that the correct Robo 3D printer is selected under the Machine type. Click the REGISTER PRINTER button in the window and then copy the token that appears. Leave the register window open since you will need to go back to this page kits.mystemkits.com...
- Page 6 Connect your printer to MSK Cloud Before printing from the MyStemKits website, you’ll need to connect your printer to the MSK cloud.
- Page 7 2 Connect your printerto MSK Cloud 1. Open a new browser window and login to kits.mystemkits.com. 2. Select a kit that you would like to start printing. a. Decide what kit to print by searching for the kit name or by browsing the online library filtering by grade level or subject.
- Page 8 4. When the “Preparing printing settings...” window appears, scroll down to the ADD A NEW 3D PRINTER section and click the arrow button to expand if this window is collapsed. 5. Scroll all the way down under the DOWNLOAD CLOUD CLIENT VERSION section and click on REGISTER TOKEN under Supported Cloud Printers. R2 MyStemKits Installation Manual...
- Page 9 MyStemKits. 8. Click the SELECT PRINTER button and the Parts Set that you selected will prepare Robo R2 or Robo C2 for printing. Once it finishes heating and completes auto leveling sequence, the Parts Set will begin printing.
- Page 10 9. Go back to the Octoprint window through the web browser and a message will appear that says your printer was successfully registered. Select OK to exit the box and SAVE to save the printer registration. R2 MyStemKits Installation Manual...
-
Page 11: Optional Steps
If you would like to adjust the print settings, uncheck “Enable One-Click-Print” and follow the rest of the instructions below. 1. Click the SELECT PRINTER button. 2. Adjust the position of the part on the bed (if you move the item on the bed, always be sure it is making contact with the bed). R2 MyStemKits Installation Manual... - Page 12 IV. Printing temperature V. Bed temperature – (currently being controlled by printer defaults) 4. Click NEXT and it will begin slicing per our normal process and automatically start the printing process. a. Download b. Heating c. Printing R2 MyStemKits Installation Manual...
