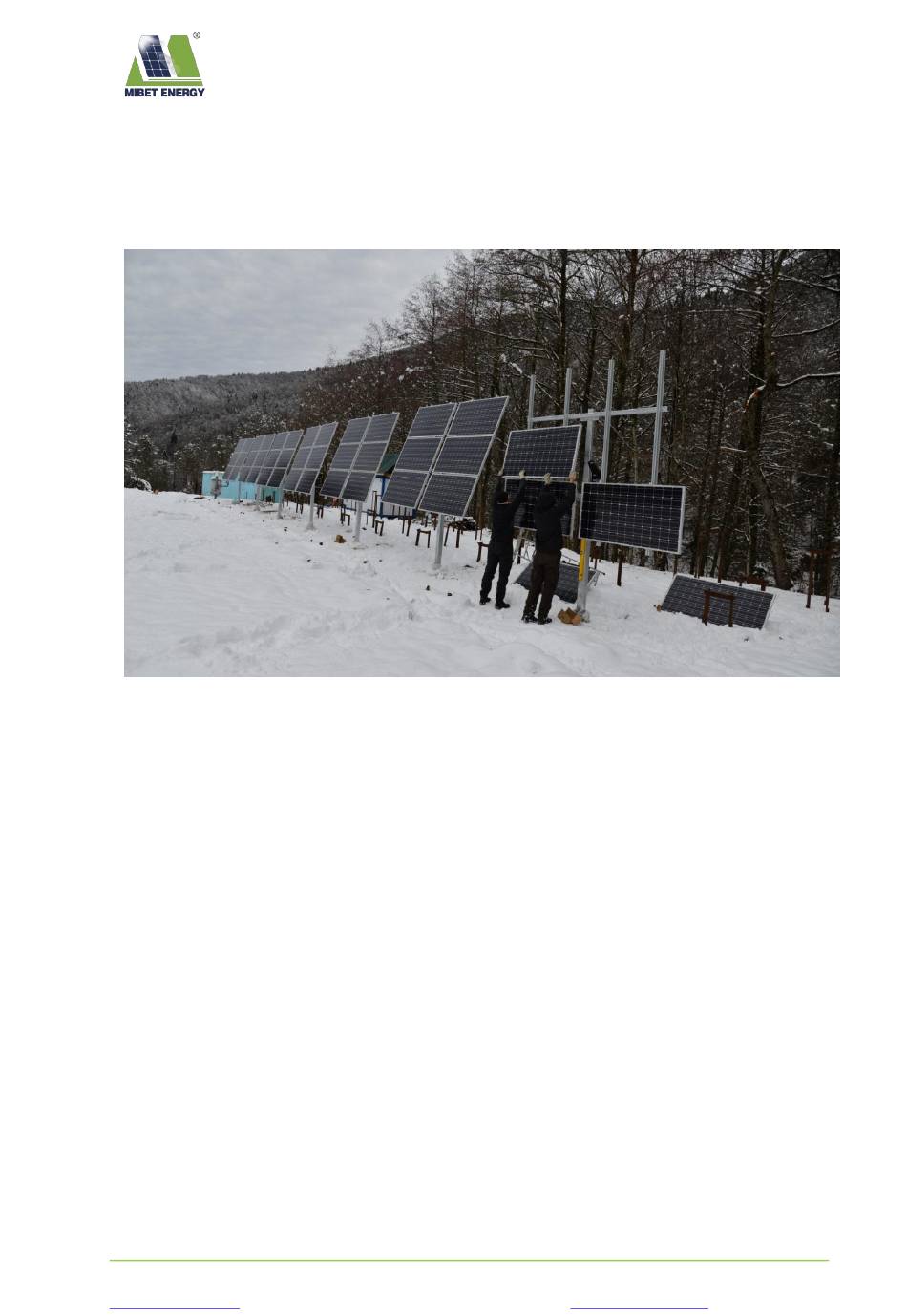

Mibet (Xiamen) New Energy Co., Ltd.
MRac Pole Rack 6 Installation Guide
Content
1. Product Introduction--------------------------------------------------------------P2
2. Installation Tools & Components---------------------------------------------P3
3. Installation Instruction-----------------------------------------------------------P4
4. 10 Years Warranty Declaration-----------------------------------------------P7
No 69, Xintian Rd., Jimei District,
Tel: +86592 3754999
Xiamen China 361022
Fax: +86 592 6771575
www.mbt-energy.com
Email:
sales@mbt-energy.com
1 / 9
Advertisement
Summary of Contents for Mibet New Energy MRac Pole Rack 6
- Page 1 Mibet (Xiamen) New Energy Co., Ltd. MRac Pole Rack 6 Installation Guide Content 1. Product Introduction--------------------------------------------------------------P2 2. Installation Tools & Components---------------------------------------------P3 3. Installation Instruction-----------------------------------------------------------P4 4. 10 Years Warranty Declaration-----------------------------------------------P7 No 69, Xintian Rd., Jimei District, Tel: +86592 3754999 Xiamen China 361022 Fax: +86 592 6771575 www.mbt-energy.com...
- Page 2 Mibet (Xiamen) New Energy Co., Ltd. 1. Product Introduction MRac Pole Rack 6 system is specially designed and manufactured for large commercial and utility scale installations. What is more, the system can be applied to almost all PV ground installation projects in both open and rough terrain with adjustable tilt angles of 0 to 60 degrees.
- Page 3 Mibet (Xiamen) New Energy Co., Ltd. 2. Installation Tools & Components 2.1 Installation Tool 4*6mm Inner Hexagon Spanner 2*5m Tape 4*12" Spanner 2.2 Main Components Components Adjustable End Clamp Inter Clamp Tube Adjustive C Clamp Kit Rail 50 Connector Pole Built-in...
- Page 4 Mibet (Xiamen) New Energy Co., Ltd. 9) Adjustive Pole 11) PR-6 Quadrate Post 10) Splice for Post 3. Installation Instruction 3.1 Install PR-6 Quadrate Post 3.1.1 Dig a hole depth at 1200- 1500mm with dimension around 600-700mm, leaving graves at the bottom around 70mm.
- Page 5 Mibet (Xiamen) New Energy Co., Ltd. 3.2.1 Fix two Splices for Post onto the Quadrate Post by two sets of Hexagon Bolts M14*150, as Picture 3-2-1 shows. 3.2.2 Put the Girder between the two Post Splices, fix it with M14*150 Hexagon Bolts as planned.
- Page 6 Mibet (Xiamen) New Energy Co., Ltd. 3.3.1 Fix Adjustable Tube Connectors onto the Adjustive Pole with two sets of Hexagonal Bolt M14*150. 3.3.2 Connect the PR-6 Girder, pre-assembled Adjustive Pole and Splices for Post with Hexagonal Bolt M14*150 (Refer to picture 3-3-1). The tilt angle of the system can be adjustable by changing the position of Adjustive Pole...
- Page 7 Mibet (Xiamen) New Energy Co., Ltd. 3.4.1 Attach the Rail 50 to the Beams with C Clamp Kit on both sides.(Please refer to Picture 3-4-1) 3.4.2 Place all other Rail 50 as planned. (Tips: Make sure all rail ends are in the same line, that is, The distance between ends of 4 Rails and the side part of Beams should remain the...
- Page 8 Mibet (Xiamen) New Energy Co., Ltd. 4、15 year limited Product Warranty, 5 year limited Finish Warranty Mibet (Xiamen) New Energy Co., Ltd. (hereinafter as “Mibet Energy”) warrants to the original purchaser (“NSEW Trading Pty Ltd.”) of products that it manufactures (“Solar PV Mounting Systems”) at the original installation site that the Product shall be free from defects in material and workmanship for a period of fifteen (15) years, except for the under normal atmospheric conditions for a period of five (5) years, from the earlier of 1).
- Page 9 Mibet (Xiamen) New Energy Co., Ltd. addition to the rights and remedies set out in this document, you may also have other rights and remedies available to you under the law. *Manufacturers of related items, such as PV modules and flashings, may provide written warranties of their own.
