Summary of Contents for Silver Ticket STR-169120

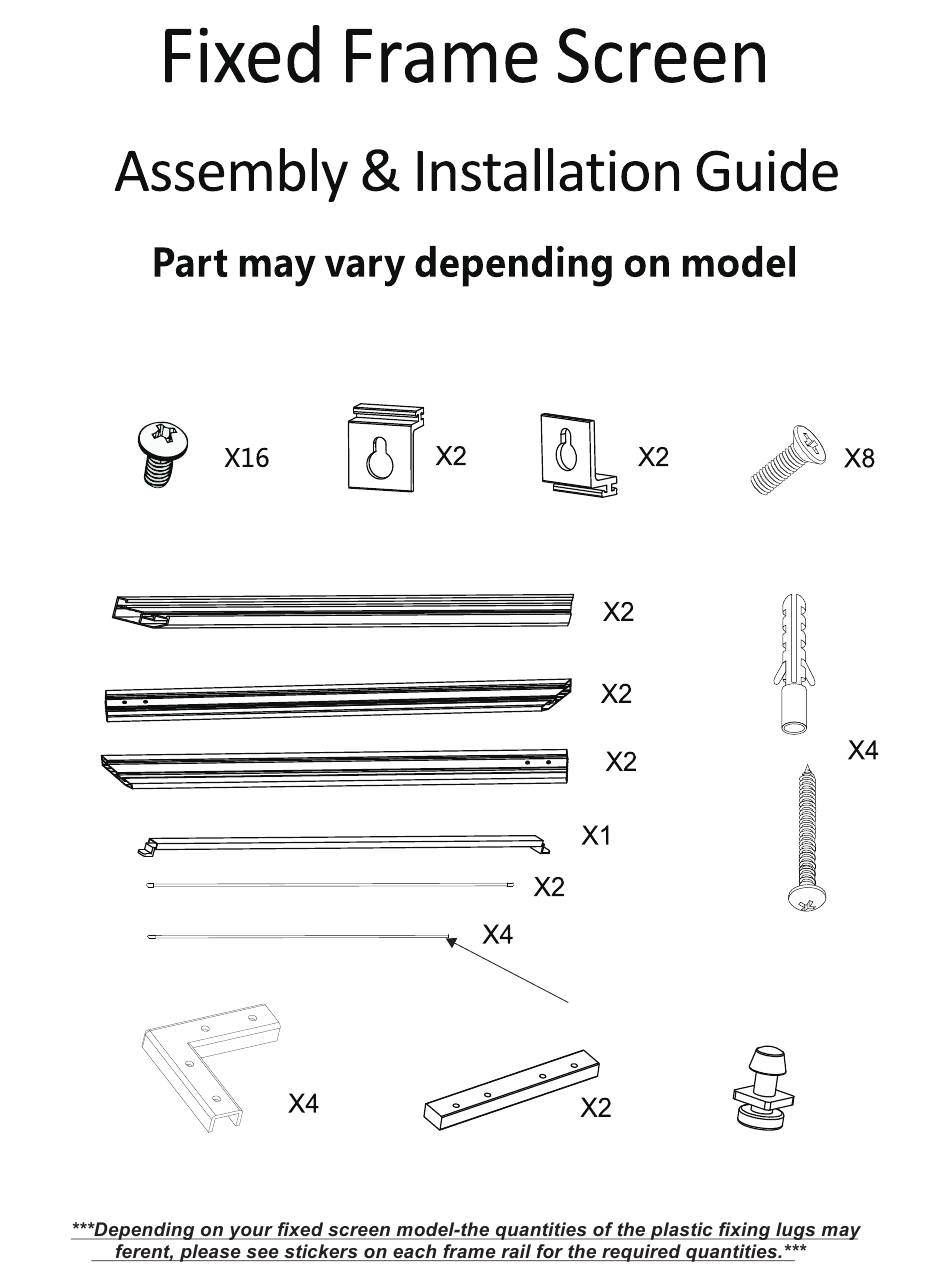

- Page 1 No rubber end ＂Overlap in screen pocket＂...
- Page 2 5. Slide pla c snap lugs into the frame rails, see ckers on each frame rail for the required Plastic Fixing Lug: 10pcs...
- Page 3 7. Slide the metal corner pieces into the ends of the long frame rails. Now put all frame pieces together forming the assembled frame. 8. Screw in 4 corner screws into each corner of the frame, but do not ghten u l all corners have been accurately aligned.
- Page 4 Insert No Rubbers end inside Insert No Rubbers end inside Place the screen material onto the frame while the frame’s bare metal is facing up. Starting at the corners,stretch the material over the snap lugs, at least two snap lugs at each corner. Once at least two lugs are secured at all four corners, work your way around the perimeter of the frame until the material is completely tensioned.
