Hiking DDS238-4 W User Manual

Hide thumbs

Advertisement

Table of Contents

1. General Description

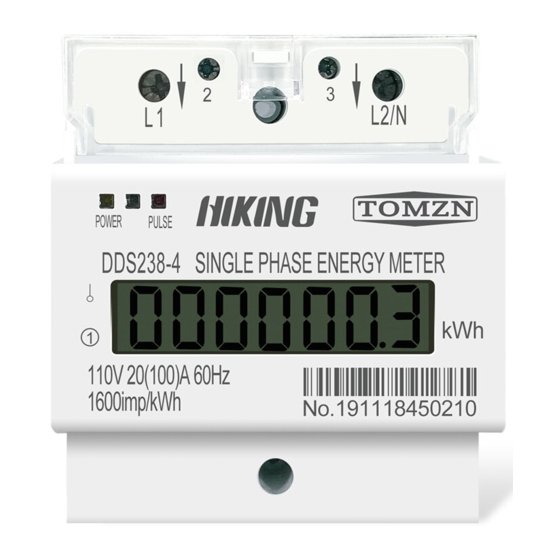

DDS238-4 W type multi-function smart energy meter is designed to measure single phase two
wire AC active energy and variable parameter. The meter have RS485 communication port and
WIFI communication, it can use APP for remote reading and control on/off. All of its functions
comply with the relative technical requirement for class 1 single phase watt hour meter in
IEC62053-21 and its data communication rules obey the requirement of MODBUS-RTU and
WIFI 802.11b/g/n.It is a long life meter with the advantage of high stability , high over load
capability , low power loss and small volume .
The meter should be installed in suitable environment with ambient temperature range
between -25℃ ～ +55℃,the relative humidity less than 75% and temperature limits between
and-40℃～+70℃.
The meter is manufactured complying with international standard IEC62052-11 on
"Electricity metering equipment (AC) General requirements tests and test conditions" and
IEC62053-21 on "Static meters for active energy (classes 1 and 2)".
2.Specification and Technical Parameters
2.1Specification
Meter type
DDS238-4 W
Rate frequency
50 or 60 Hz
Rated current
5(60)A ,10(100)A
Rate voltage
120V / 220V / 230V /240V
Normal
voltage
90%Un～110%Un
range
Limits
voltage
70%Un～120%Un
range
kWh Accuracy
Class 1
R.M.S accuracy
Class 0.5
Pulse constant
See meter
RS485 port
MODBUS-RTU protocol, 1200～9600bps,None parity ,default 9600bps
WIFI
802.11b/g/n ,only support 2.4GHz network , not support 5GHz network
2.2 basic parameters
Note: when it happens interrupt power-supply , the meter will not cut off , undervoltage event
Delayed power on/off time
overvoltage / undervoltage / overload event
judgment time
Overvoltage protection value
Overvoltage recovery value
Undervoltage protection value
Undervoltage recovery value
Overload protection value
Delay on/off control
USER'S MANUAL
60+5s
3s
270V+1(default)，APP can set value
260V+1(default)= (APP overvoltage
value - 10V)
170V+1(default)，APP can set value
170V+1， (default)= (APP
overvoltage value + 10V)
65A(default)， APP can set value
00:01—24:00 Hour

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDS238-4 W and is the answer not in the manual?

Questions and answers

Related Manuals for Hiking DDS238-4 W

Summary of Contents for Hiking DDS238-4 W

  • Page 1 USER’S MANUAL 1. General Description DDS238-4 W type multi-function smart energy meter is designed to measure single phase two wire AC active energy and variable parameter. The meter have RS485 communication port and WIFI communication, it can use APP for remote reading and control on/off. All of its functions...

  • Page 2: Basic Features

    must last 3s , then it will cut off. 2.2 Technical Parameters 2.2.1 Basic tolerance Load Power factor Basic error(%) current(A) (CosΦ) 1.0 class 2.0 class 0.05Ib +1.5 +2.5 0.1Ib—Imax +1.0 +2.0 0.1Ib 0.5(lag) +1.5 +2.5 0.8(advanced) +1.5 02Ib—Imax 0.5(lag) +1.0 +2.0 0.8(advanced)

  • Page 3: Working Principles

    3.10 it has timing control function , it can set value from APP 3.11 it can reset the active energy to zero from APP 4.Working principles Single phase voltage and current are sampled from respective sampling circuit and transformed into suitable signal, which is carried into integrated circuit , then the meter output pulse signal in positive appropriation to measured power to drive step-motor counter or LCD counter to realize energy measurement.
  • Page 4 WIFI led indication, if you push the setting button last 5s, the WIFI led will flash 1s interval ,its means meter enter into the status of waiting for WIFI distribution network . if WIFI led light on 5s , light off 0.1s ,it means meter connect the WIFI successfully. Impulse led indication: it will flash with different speed according the current load of the meter Relay led indication: the led light off means relay switch on, the led on means relay...

  • Page 5: Transportation And Storage

    6.2.4 Diagram for installation dimension 7. Transportation and Storage 7.1 Heavy impact should be burdened to the products while transportation and unpacking. 7.2 The products should be stored in the original package and kept in place with temperature between -40℃～+70℃,the relative humidity less than 75% and no corrosive gas around . 7.3 In storehouse , the meter should be placed on the shelf when kept in stock , there should not be more than 7 cartons piled up in vertical.
  • Page 6 Send frame Meter ID Function Register address Data number Check code code (CRC) 1byte 1byte 2byte 2byte 2byte Receive frame Meter ID Function Data length n Data area Check code code (CRC) 1byte 1byte 1byte n byte 2byte 9.2 Write command（function code 10） Send frame Meter ID Function code...

  • Page 7: Display Item

    But this ways is only for 1 pcs meter to connection on RS485 wire 10. Display item INFORMATION LCD DISPLAY Impulse imp/kWh C 0000 Total energy kWh 000000.00 Positve kWh 00000.00 Reverse kWh -00000.00 Reset energy EP0000.00 Real voltage V U 000.0 Real current A A 00.00...
  • Page 8 Select the WIFI distribution network Select the Plug You can push the setting button last 5s , meter enter into the status of waiting for WIFI distribution network , then click confirm button...
  • Page 9 Input the WIFI network account and password , then confirmed to next step if WIFI led light on 5s , light off 0.1s ,it means meter connect the WIFI successfully.
  • Page 10 Note: WIFI led status 1. flash 1s interval : meter enter into the status of waiting for WIFI distribution network 2. light on 5s ,light off 0.5s : meter have connect the WIFI and login in cloud serve APP Menu instruction The meter will display online or offline after you add the device successfully .
  • Page 11 Control button : used for control on / off of meter output Reset button: used for reset the total active energy to zero Timing button: used for timing control on/off and time delay control on/off 1. time control :you can add the time which is control and which is control off ,if you do not select week , it will save as single time control .
  • Page 12 3.Setting button : for protection value and unit price ,starting active energy value setting . Voltage high limit(V): the overvoltage protection , it will cut off after high than this value. Voltage low limit(V): the undervoltage protection , it will cut off after lower than this value.
  • Page 13 Import active energy : it measure the total positive active energy Export active energy : it measure the reverse active energy , such as solar power generation , reverse wire connection , some power generator working . Normally, the total active energy= | Import active energy | + | Export active energy | Contrast active energy : it is used for contrast the kWh running with the power company meter or other kWh meter .
  • Page 14 Management : you can change the name of your meter and delete the meter from your device list...
  • Page 15 Smart interaction: you can use voice to control the meter on/off , now only support the Cat Elf smart sound and Echo smart sound device...
