Summary of Contents for SWEEP-UP Jolly

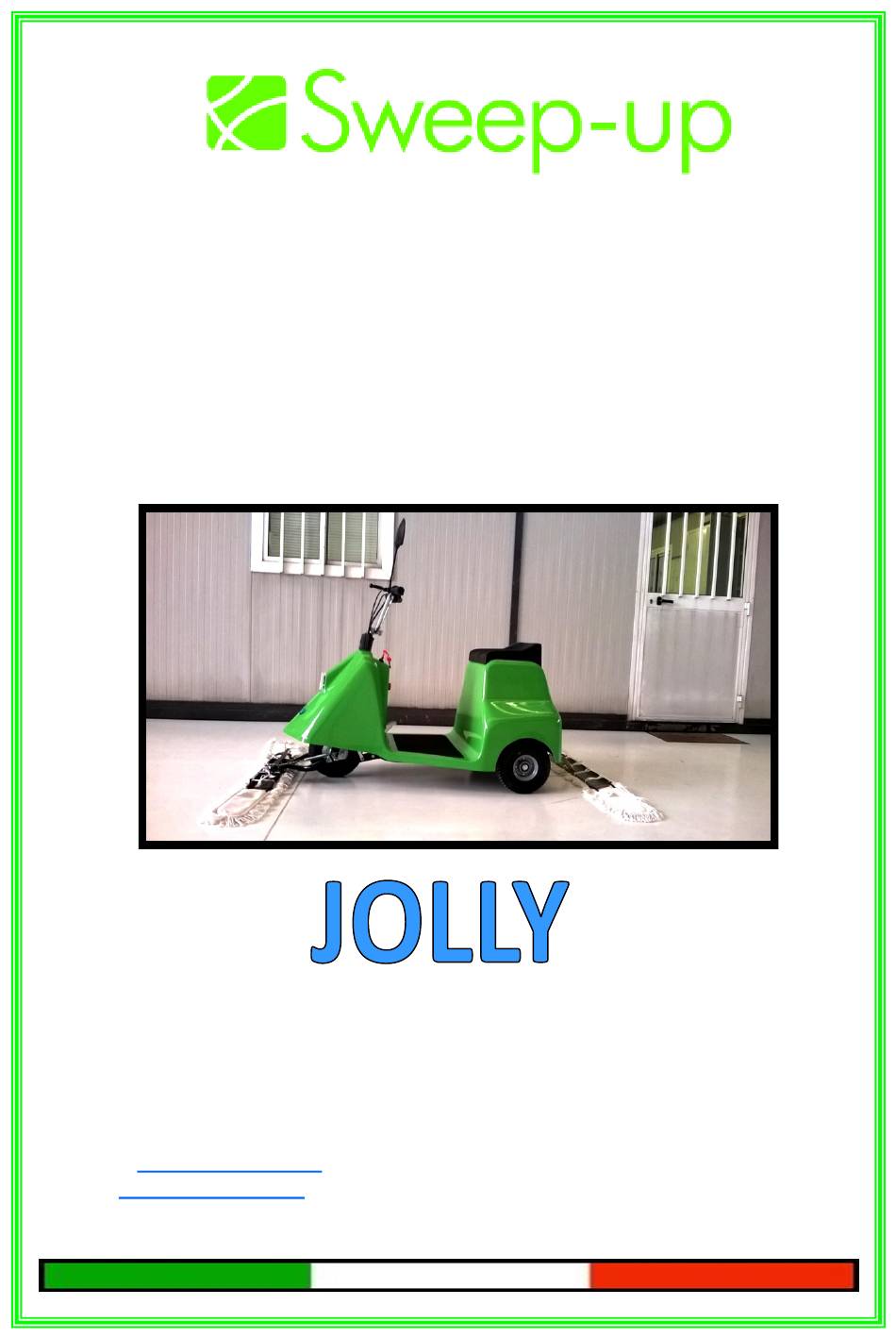

- Page 1 USE AND MAINTENANCE MANUAL (version 01/2016) SWEEP-UP s.r.l. Str. Baganzola, 29 – 43126 PARMA (Italy) P. Iva e Cod. Fiscale: IT 02677740348 Capitale sociale: 10.000 Euro Tel./FAX: +39/0521-290423 Website: www.sweep-up.com E-mail: info@sweep-up.com...
-
Page 2: Safety Rules
SAFETY RULES Safety rules written in the hand-book are characterized by the danger symbol. A) How and where to use it. “ATTENTION” - Machine must not be employed on surfaces hav- ing a gradient over 9%. B) Safety dispositions. Machine must be driver by authorized personnel only. 1) To prevent non-authorized people from operating the machine, lock the drive by removing the ignition key. -
Page 3: Warranty Conditions
FOREWORD Thank you for your preference. Sweep-up s.r.l. is proud to number you amongst their customers and trusts that you will be fully satisfied with your machine. This handbook contains instructions on how to use and service models “JOLLY”... - Page 4 INDEX Machine identification Inspection on arrival General location of the various parts Recommended use Instructions for use Preliminary operations Controls on the handle-bar Controls on the instrument panel Safety devices Fuses Scooter starting Reverse drive Scooter stopping Switching on the light Using the front mop (optional) Using the rear mop (optional) Battery charge control card...
-
Page 5: Machine Identification
If damage or imperfections are discovered: 1- Immediately notify the haulage company both by phone and in writing; 2- Inform Sweep-up s.r.l. by registered letter. IMPORTANT Faults and damage must be immediately notified, in any case no later than 8 (eight) days from the date on which the machine was received. -
Page 6: Recommended Use
RECOMMENDED USE The “JOLLY” scooter can be put to numerous uses such as transport and links between distant areas. It can be used as an environment-friendly motorbike in town centers, airport halls and distribution centers, etc. When fitted with the optional front and rear mops, it can also be used for light cleaning jobs over medium-large areas. - Page 7 SAFETY DEVICE (see fig.3 and 4) The scooter is equipped with a series of safety devices to protect: • Driver • The people near the machine • The machine itself S1 - Driver on the seat. The scooter is able to start only if the driver is on the seat. S2 - Key-accelerator train.
-
Page 8: Switching On The Light
SCOOTER STARTING To start scooter: a - The dryer must be seat (of course) to connect the feeding. b - Clear accelerator (remember key accelerator train ) and verify that red but- ton emergency is at the top position. c - Turning starting key (“I” position). d - Check |e battery level: •... - Page 9 USING THE FORONT MOP (optional) The horizon of the front mop can be regulated. To do this, sit on the machine and operate the pedal with the foot. This pedal can be set in three different points, consequently allowing the mop to assume three different positions.
- Page 10 BATTRY RECHARGING OPERATIONS First of all don't forget that • Green led (9) means 100% batteries charge level. • Yellow led (10) means 50% batteries charge level. • Red led (11) means batteries level not able to work-batteries must be re- charged immediately.
-
Page 11: Replacing The Timing Belts
Periodically check the condition of the timing belts. If they are excessively worn, replace them in the following way: a - Place “JOLLY” on a bench so that work can be carried out in the front part under the body. - Page 12 ELECTRICAL SYSTEM (model without battery charger)
- Page 13 JOLLY TECHNICAL DATA...
