Summary of Contents for Ozocheck Pure LN

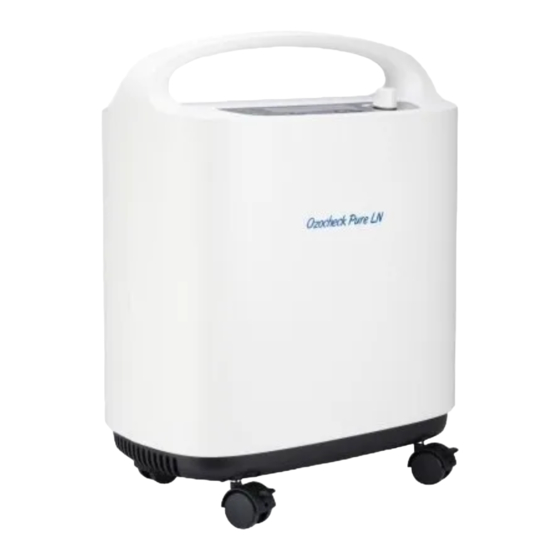

- Page 1 Read this manual carefully before use! Ozocheck Pure LN Oxygen Concentrator User's Manual...
- Page 2 Statement This manual will help you understand the operation and maintenance of the product better. It is reminded that the product shall be used strictly complying with this manual. User’s operation failing to comply with this manual may result in malfunction or accident for which Medsource Ozone Biomedicals (hereinafter called Medsource) cannot be held liable.
- Page 3 Responsibility of the Manufacturer Medsource only considers itself responsible for any effect on safety, reliability and performance of the equipment if: Assembly operations, extensions, re-adjustments, modifications or repairs are carried out by persons authorized by Medsource, and The electrical installation of the relevant room complies with national standards, and The instrument is used in accordance with the instructions for use.
-
Page 4: Table Of Contents
Table of Content 1 Product Introduction ................1 Application Scope ................1 Operating Principle & Flowcharts ............. 1 Equipment symbols ................2 2 Safety Guidance ................... 4 Safety tips for oxygen concentrator ............. 4 Electrical Safety Requirement ............6 Safety tips for oxygen Inhale ............6 Safety tips for atomization ............... - Page 5 6 Accessories ..................24 7 Product specification ................. 25 Main unit ..................25 Environmental Specifications ............25 Concentrator models and Technical parameters ......25 8 Warranty and Service ................. 28 Warranty ..................... 28 Contact information ............... 29 9 EMC ....................30 Electromagnetic emissions .............
-
Page 6: Product Introduction
Product Introduction Oxygen Concentrator is composed of air compressor, air pretreatment, control valve, molecular sieve adsorption tower, control and alarm system, production gas treatment system, oxygen tube, atomization device (for -N, -M oxygen concentrator) and remote control (for-T, -M oxygen concentrator). -
Page 7: Equipment Symbols
The following figure shows the process: The following chart shows the electrical control process: 1.3 Equipment symbols Some symbols may not appear on your equipment. Symbol Description Symbol Description Note! Consult the Do not expose to open accompanying flames documents Caution Against Wet Fragile-handle with care... - Page 8 Symbol Description Symbol Description This side up Fuse ON (power supply) Class II equipment OFF(power supply) Alternating current Type BF applied part Manufacture Date Consult instructions for Serial number Increase or decrease Batch code (Knob) Part Number Max. Stack Quantity...
-
Page 9: Safety Guidance
Safety Guidance Special Warning To prevent oxygen concentrator's possible failures or power shut down, people in urgent need of oxygen and seriously ill patients must prepare other oxygen-supply devices for emergency use (etc : oxygen cylinders, oxygen bags). The concentrator is suitable for oxygen supplement, and it is not intended to be life supporting or life sustaining.... - Page 10 Do not use the equipment near flammable materials as grease oil, detergent ect. In a certain pressure, oil, grease or grease substances which contacted with oxygen will self-ignition and intense combustion. These substances must be kept away from oxygen concentrator, piping, connectors, and all other oxygen devices.
-
Page 11: Electrical Safety Requirement
Call the emergency hot line and seek the help of professional health care workers immediately if any discomfort is felt or accident happened while using the concentrator. Turn off the concentrator after use. Unplug the plug cord from the power outlet if long time no use of concentrator. -
Page 12: Safety Tips For Atomization
adjust the flow according to the doctor's instructions; patients with severe lung disease should consult professional physician for flow level. Operate the oxygen concentrator in the following environment: working temperature from +5°C to +40°C and relative humidity not higher than 75%.... -
Page 13: Installation And Operation
Installation and operation 3.1 Open-case inspection NOTE: Unless the oxygen machine is used immediately, the machine must retain the carton and store the packaging material before use. Firstly check the carton or other packaging is obvious damage. If any damage is detected, contact the carrier or us. -
Page 14: Parts And Function Introduction
5. Connect the humidification bottle to the oxygen outlet of the concentrator using a connecting tube, and the other port of the humidification bottle to the nasal oxygen tube. 6. Plug the power supply cord into a socket that meets the requirements. Parts and function introduction Main unit This port is connected to... - Page 15 When the cooling fan is not connected or damaged, the indicator lights yellow and the screen shows the corresponding error code. When the temperature of the system exceeds the maximum allowable temperature limit (65°C), the oxygen generator stops working.
- Page 16 Display screen Timer timing Concentration Flow value Total running time Remote controller 1. Working indicator (the indicator lights green when using buttons of remote controller) 2. Timing 1 hour button 3. Start/Stop oxygen button 4. Timing 2 hours button 5. Timing 3 hours button Main structure and material of concentrator Main Structure Material...
-
Page 17: Power On/Off
Control and PCB, sillion Automatic control and fault alarm alarm system components according to preset working procedures Producing gas ABS resin, Collecting, filtering, regulating and treatment Polypropylene humidifying the oxygen generated by system the oxygen concentrator. 3.5 Power ON/OFF Power On: Press the I/O power switch on the back of concentrator to position “I”... - Page 18 Install the humidification bottle on the humidifier bottle holder of concentrator and secure it with band. Press the power switch to position “I”(ON). The power is plug in when the power indicator turns green. The oxygen concentrator is in working state.
-
Page 19: Atomization Operation Of N, M Type Oxygen Concentrator (Not Administered)
3.7 Atomization operation of N, M type oxygen concentrator (not administered) Press the power switch to position “I”(ON) to turn on the concentrator. Connect the atomized mask or mouthpiece to the medicine cup. Unscrew the nut of the oxygen atomizer outlet; connect the atomization tubing to the outlet. -
Page 20: Remote Control Operation
When the shut hours is set, the system comes into count down time and the oxygen concentrator LCD will shows the remaining time. When remaining time becomes 0, the oxygen concentrator will go to standby status. Remaining time 3.8.2 Remote control operation The function of buttons on the remote controller is the same with some keys on the concentrator display panel. -
Page 21: Anion Function
3.8.4 Anion function 1. Press the anion key ( ), then the icon lights on. It indicates that the anion function is turned on. 2. Press the anion key ( ) again to turn off the anion function. And the icon off. - Page 22 Usage of liquid cup Add aromatic oil: as shown below, turn the top cover according to the arrow “OPEN↔CLOSE” to open the cup, add the proper amount of aromatic oil, and then cover the top cover to the CLOSE position. Install the liquid cup correctly and then you can turn on the concentrator.
-
Page 23: Troubleshooting
Troubleshooting 4.1 Oxygen Concentrator Alarm and Indicator System Alarm system design aims at monitoring the working oxygen concentrator in case of such situations as power off, abnormal pressure or indicator of running condition of the equipment. All alarms of this equipment are technical alarms. -
Page 24: Fault List
is higher than pressure and check and make sure the 260kPa or and the cleanness of lower than screen outlet and inlet 20kPa displays error code of air without any blocks. And "E05". then restart the Alarm equipment, indicator please inform lights the distributor yellow at... -
Page 25: Fault Code
stipulation or has the bend. Atomization 1. The atomizing 1. Install the assembly properly and amount is assembly installed correctly insufficient or improperly or 2. Replace the atomizing assembly cannot be incorrectly; If this condition still exits, stop using atomized while 2. -
Page 26: Care And Cleaning
Care and Cleaning Only the dealer or a trained person authorized by the manufacturer can perform pre-maintenance or performance commissioning of the oxygen concentrator. Manufacturers recommend that the oxygen concentrator's running time is not less than 30 minutes each time. Do not turn on or off the oxygen concentrator frequently. -
Page 27: Clean Or Replace Filter Sponge
WARNING Empty the humidifier each time after using the equipment. 5.3 Clean or replace filter sponge The cleaning and replacement of the filter sponge is important to protect and extend the service life of the compressor and molecular sieve of the concentrator. -
Page 28: Overload Protection
5.4 Overload protection When you suspect or determine the overload protection (turn on the main unit when the power connection is normal, a power failure alarm occurs), you can use the tool to remove the screw and replace the fuse before restarting the concentrator. -
Page 29: Accessories
Accessories You can order accessories from Medsource supplies at www.Medsource.com or consult your local Medsource representative for details. WARNING Disposable accessories are designed for single-patient use only. Reuse of them may cause a risk of contamination and affect the measurement accuracy ... -
Page 30: Product Specification
Product specification 7.1 Main unit Electrical Safety classification Class II, BF type applied part; non AP/APG equipment Liquid protection level IPX0 Operating mode Continuous Product life 5 years Atomizing port pressure range of 60kPa - 250kPa concentrator with atomizing Atomization outlet pressure 30kPa -70kPa Fuse F5AL250V... - Page 31 KSN- ≥0.2...
- Page 32 Remarks: Output oxygen concentration range for KSN-3 series concentrator: 3L/min; 93%±3%. Output oxygen concentration range for KSN-5 series concentrator: 5L/min; 93%±3%. Model with “N” is feature configuration, which is added atomization function on the basic functions. Model with “T”...
- Page 33 (Rated flow×100%)
- Page 34 Applicable condition for the indicator of oxygen concentrator: Temperature: 5- 40°C Relative humidity: ≤80% Barometric pressure: 86kPa - 106kPa...
-
Page 35: Warranty And Service
Warranty and Service 8.1 Warranty The expected service life of the equipment is five years. The manufacture date of can be found on the nameplate or label. THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. -
Page 36: Contact Information
Figures in this manual are for reference only. Please take the real product you receive as standard. No notice will be made in case of any update. 8.2 Contact information If any questions in equipment operation, please contact the manufacturer or local agency. -
Page 37: Emc
This product has passed the electromagnetic compatibility test conducted by testing center. Please install and use this product according to the following electromagnetic compatibility information. Portable and mobile radio frequency communication equipment may affect the medical electrical equipment. Do not use this product near the places with strong electromagnetic interference sources, such as walkie-talkies, CT, MRI and other equipment. -
Page 38: Electromagnetic Immunity
Voltage low-voltage power supply network that fluctuations/ flicker supplies buildings used for domestic Compliance emissions purposes. IEC 61000-3-3 9.2 Electromagnetic immunity The medical oxygen concentrator is intended for use in the electromagnetic environment specified below. The customer or the user of the concentrator should assure that it is used in such an environment. -
Page 39: Electromagnetic Immunity
(95% dip in U (95% dip in U interruptions, it is recommended that the measuring system be powered from an uninterruptible power supply or a battery. Power 3A/m 3A/m Power frequency frequency magnetic fields magnetic field should be at levels 50Hz characteristic of a IEC 61000-4-8... -
Page 40: Recommended Separation Distances Between Portable And Mobile Rf Communications Equipment And The Concentrator
P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey should be less than the compliance level in each frequency range . - Page 41 distance between portable and mobile RF communications equipment (transmitters) and the concentrator as recommended below, according to the maximum output power of the communications equipment. Separation distance according to frequency of Output transmitter(m) power of transmitter 150kHz - 80MHz 80MHz - 800MHz 800MHz - 2.5GHz in Watt (W) d＝1.2...
