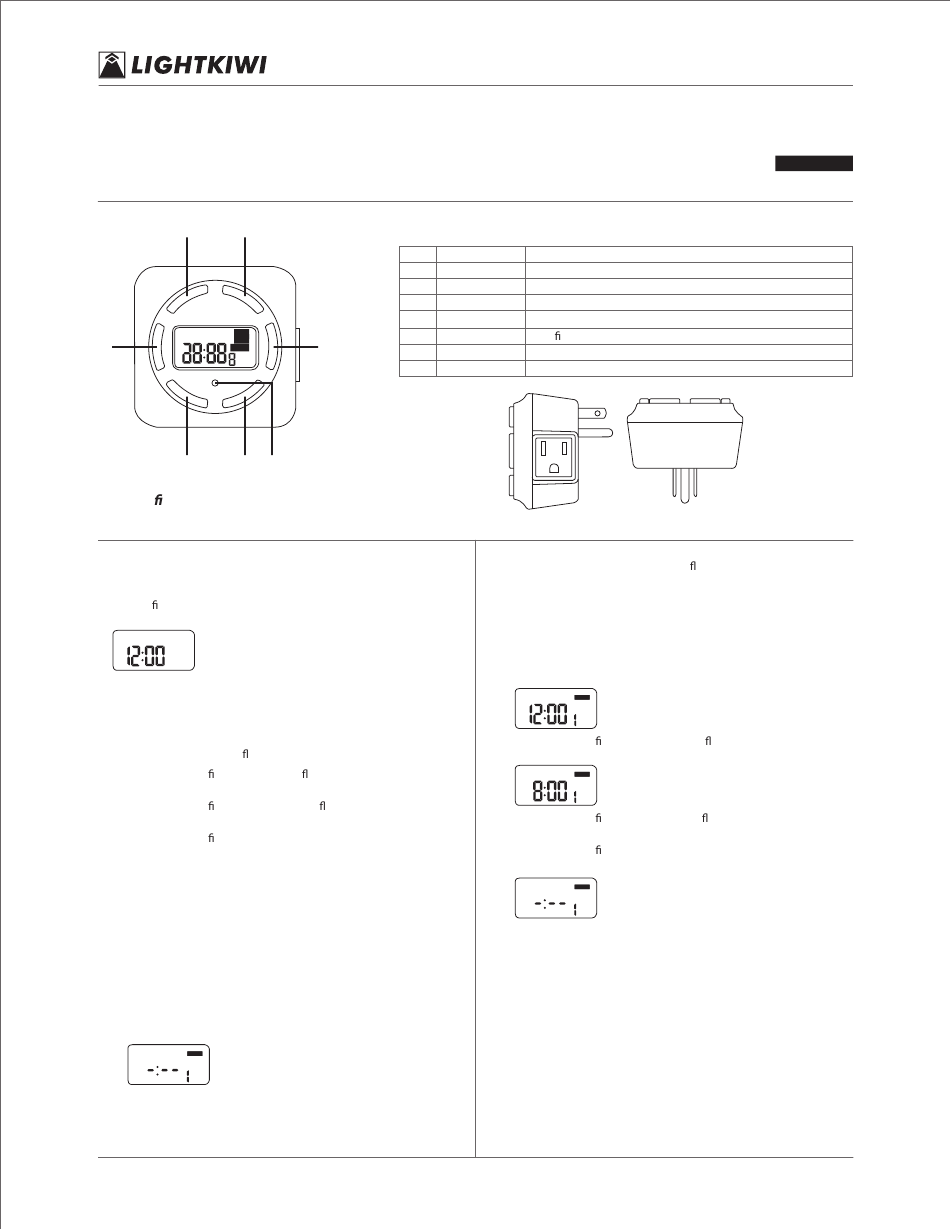

LIGHTKIWI H5576 Quick Start Manual

Digital Timer
for Low Voltage Landscape Lighting Transformer
A B
MO TU WE TH FR SA SU
CLOCK
C PROG PROG
AM
AUTO
CTD
PM
ON
OFF
E F G
*For the rst use, please press the RESET button key!
FUNCTION
RESET
1.
For the rst use of press the RESET button, the LCD will fully
display for 2 seconds and then the clock will show:
MO
AM
OFF
The blinking colon means the clock is running.
2.

SETTING THE CLOCK

A. Press MENU at clock display to start setting. OFF indicates that
the timer is in OFF mode.
B. Press OK and 'day' will ash, use+/- to adjust.
C. Press OK to con rm and hour will ash, use +/- to adjust.
Make sure AM/PM is correctly set.
D. Press OK to con rm and minute now ashes, use +/- to adjust.
Note: When minute is set, the clock will go from 0 second.
E. Press OK to con rm.
Note: To set the clock once again, press OK and repeat the steps
from 2.B.
To set programs for the timer, press MENU and see Section 3.
To quit to clock display, hold MENU for 2 seconds or more.
If no key is pushed within 1 minute, the clock will be displayed.

SETTING PROGRAMS

3.
Press MENU at clock display till PROG is shown on the screen. Up to
9 programs can be set for each day of the week. For instance, if you
want to set a daily program that starts at 8:00 AM and ends at
5:15 PM, please follow the following steps:
A. Press MENU till the screen shows:
PROG PROG
ON
1ON is code of the current program.
1
Lightkiwi.com Copyright © 2017 Lightkiwi LLC, All Rights Reserved

FUNCTION OF KEY

PART KEY
A MENU
B MANUAL
C
-
D
+
E OK
D
F COUNTDOWN
G
RESET
B.
C.
D.
E.
F.
G.
H.
2
FUNCTION
shift between CLOCK and PROGRAM modes
shift between OFF/AUTO OFF/ON/AUTO ON modes
decrease the number by 1 or hold to roll fast
increase the number by 1 or hold to roll fast
con rm the current setting
start the countdown function
reset the timer and clear all data previously setting
Press OK to start setting. 'Day' will ash at this stage, use +/- to
adjust. Press +, the options will show in such order:
(MO, TU, WE, TH, FR, SA, SU) MO > TU > WE > TH > FR > SA > SU
> (MO, TU, WE, TH, FR) > (SA, SU) > (-:--); Press -, these options
will show in a reversed order.
Note: -:-- is an invalid option and if it is selected, you can press
OK again to restart setting. In our case, we should select
(MO, TU, WE, TH, FR, SA, SU):
MO TU WE TH FR SA SU
PROG PROG
AM
ON
Press OK to con rm and hour will be ashing, use +/- to adjust.
In our case, we should select 8 AM:
MO TU WE TH FR SA SU
PROG PROG
AM
ON
Press OK to con rm and minute will ash, use +/- to adjust.
In our case, the minute shall be set to :00.
Press OK to con rm and "PROG 1ON" is now correctly set.
Press MENU and the screen will show:
PROG PROG
OFF
Press OK to start setting "PROG 1OFF". Follow the steps 3.2 to 3.5.
In our case, day, hour and minute should be respectively set to
(MO, TU, WE, TH, FR, SA, SU) 5 PM and 15 MIN. Now the ON and
OFF time are both set.
To have more programs set, repeat the above steps.
I. When a program is set, press MENU to quit or hold MENU for 2 or
more seconds at any stage to go back to clock display. If no key is
pushed within 1 minute, the clock will be displayed.
J. To edit a particular program, locate it using MENU and press OK
to edit.
K. To remove a particular program, locate it using MENU, press OK
and set the day to -:-- using +/-.
CONTINUE ON THE NEXT PAGE >>>>>
