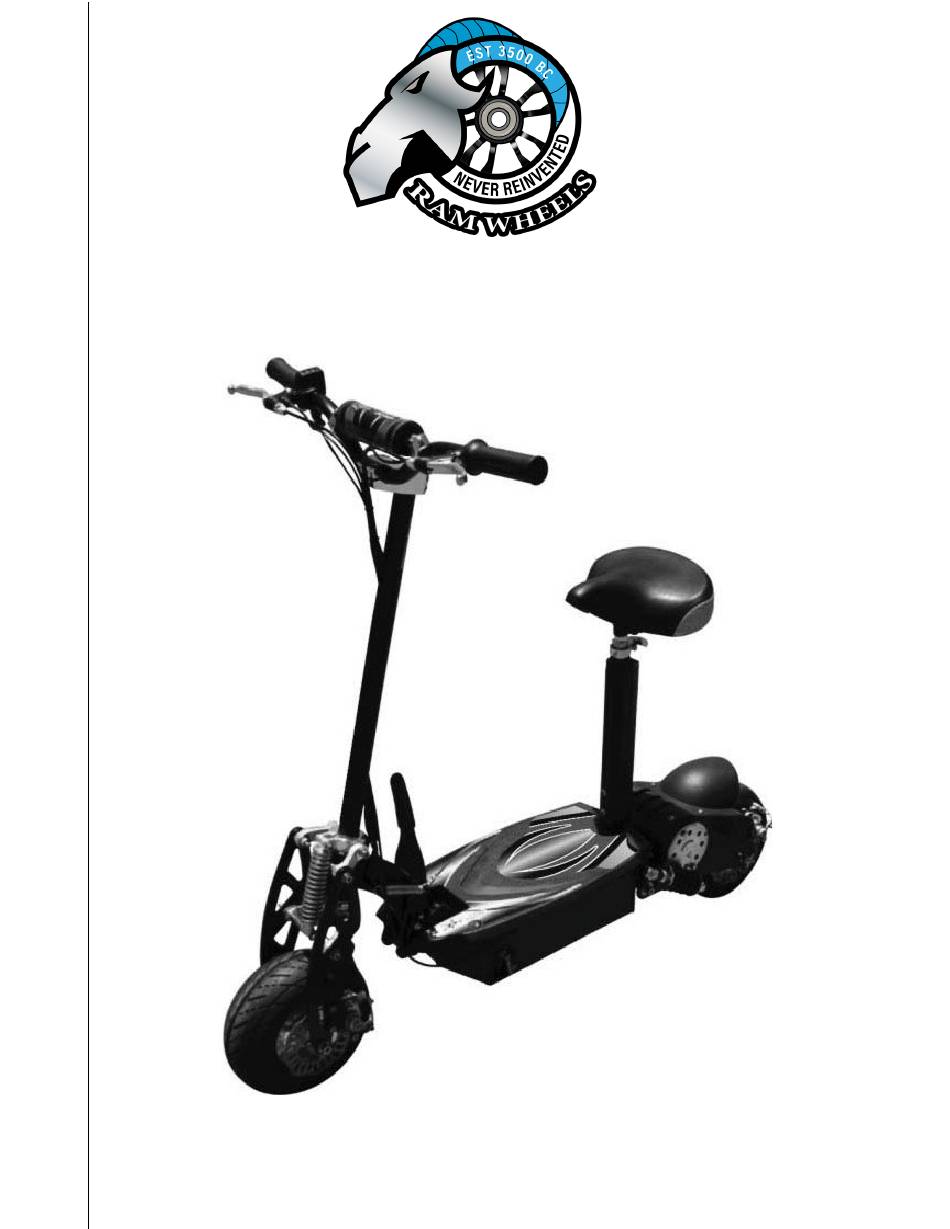

- Page 1 Pro Series USER MANUAL...
- Page 2 DECLARATION OF CONFORMITY Manufacturer CityGreen Group Co., Limited. No 216, Xiachen Village, Shizhu Town, Yongkang, Jinhua, Zhejiang, China Classic Bike Shop Ltd trading as Ram Wheels – Unit 3b Dunlop Road, Hunt End Industrial Estate, Applicant Redditch, B97 5XP Applicant is: Importer Object of the declaration Product name: Green 01 (Pro X Series) Brand name/Trade mark: Ram Wheels Product description: Electric Scooter Model No: Green 01 (Pro X Series) Year of Construction: 2020 The object of the declaration described above is in conformity with the essential requirements of the following Directives: *Reference no. *Title 2006/42/EC Machinery Directives 2014/30/EU Electromagnetic Compatibility Directives 2014/35/EU Low Voltage Directives The following harmonized standards were applied EN ISO 12100:2010;...
- Page 3 IMPORTANT BATTERY CARE Make sure that your Scooter is fully charged prior initial use. The first charge should take appr oximately 6-8 hours. Scooter Always charge your after every use. Turn the key to position when not in use. DO NOT leave your scooter charging for more than 12 hours.
- Page 6 WARNINGS The Pro Series Scooter is not intended to be used on public roads where there are cars,buses ,t axis or other licensed motor vehicles. Make sure to familiarize yourself with the traffic rules and regulations in your area to determine where it is safe for yo u to ride your scooter.
- Page 7 How to Ride Your Pro Series Scooter Scooter has a variable speed accelerator (throttle} like that found on a motorcycle. You can control your speed precisely by slowly opening the throttle Opening the throttle further will r esult in increased speed. Do...
-
Page 8: Table Of Contents
Table of contents Scooter ..............6 Familiarising yourself with Your unfold your Scooter............... Fuse inst allation....................Installing handle-bar................Installing seat..................Charging....................Battery care....................Before riding.................... On board LED....................10 Suspension ....................Adjusting your rear suspension ..........11 Brakes..................Adjusting your br akes.................... -
Page 9: Familiarising Yourself With Your Scooter
Familiarising yourself with Your Scooter Throttle Brake Folding Handle Front Shock Absorber • Disc Brake Motor Seat Quick Release Deck On/Off switch 10 . Rear Twin-Shock Suspension 1. Battery Pack 2. Charger Tool Kit Getting Started Unfold Your Scooter the Scooter. unfold push lever... -
Page 10: Fuse Installation
Fuse Installation Scooter Before you begin assembling your please ensure that have installed Scooter the fuse that can be found in your pack. Scooter o Remove the fuse from the pack, lift deck of the and insert into the slot provided. -
Page 11: Installing The Seat
Installing the Seat Steps: Remove the steel stem from the black seat base. Place the seat on the steel stem tighten. Scooter Place the clamp (found in your pack] on the top of the black seat base (D). Make sure you put the correct end of clamp... -
Page 12: Charging
Charging To charge, plug charger wall, and the charger into the charging port located on right hand side Scooter just beneath the deck. When charging your Scooter for the first time, is recommended that the unit be charged first for 6-8 hours prior use. -
Page 13: Before Riding
Before Riding Make sure that your tyres are pumped to the correct pressure before riding. Check that the wheels spin freely that brakes are not catching at point. On board LED Scooter on board LED, attached the throttle of your assists in showing much power is left... -
Page 14: Adjusting Your Rear Suspension
Adjusting Your Rear Suspension adjust the rear suspension t ighten/ loosen the adjustment nut. Please attempt adjust the shock absorber. Make sure that the nuts and bolts on the shock absorber are tight enough that there is no play. Brakes Scooter has a front and rear wheel... -
Page 15: Adjusting Your Brakes
Adjusting Your Brakes To tighten your brakes, loosen the lock nut (A) until it spins freely. Now tu tensioning bottle (B)outwards until the brake correctly adjusted. Finally,tighten lock nut to lock the adjustment in place. To loosen your brakes, loosen the lock (A). -
Page 16: Service
Trouble shooting Prob Solution If solution doesn't worl Yes: Check brake handles damage to cut off switch. 2. Open deck cover, free wiring Scooter will harness by cutting cable ties Take scooter check contacts. Service Centre batt ery lights near accelerator Open deck... - Page 17 Page...
- Page 18 Charging of Banerles Problem Solution solut doesn't war 1. Clean and check both ends of Batteries are not charger plug. Make sure char ging a Take scooter they fit snuggly and are not worn. (charger light stays Service Centre Open deck cover, free wiring green endwon't...
