Toupwell TP201 User Manual

Programmable Room Thermostat
User Guide
Model
TP201
Welcome
Your new thermostat will provide years of reliable
service. Using this digital thermostat will provide
more uniform comfort in your home through the
seasons. Thank you for buying the product!
Please read this manual for complete instructions
on installing and operating your thermostat. If you
require further assistance, please feel free to
contact us.
In the box you will find
1pc
Thermostat
Screws 2pc
User Guide
1pc
Service
We offer the warranty of 18 months from the sales day
If it is not the problem of quality or beyond the warranty
time, we will charge for the after-sale service.
series Modern Touch Screen
TP201
Programmable Room Thermostats are designed
to on/off control the fans and valves in air
conditioner applications via comparison of the
room temperature and setting temperature as
reaching the aim of comfort and saving energy
are micropro cessor based thermostat
TP201
with LCD display.
Features of your thermostat
Modern desgin similar as a cell phone.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.
Large screen display with backlight is easy to
read—even in the dark.
7 days four periods program schedules maximize
comfort and economy.
One-touch temp control overrides program
schedule at any time.
Precise comfort control keeps temperature within
1°C of the level you set.
Easy installation.
86mm*86mm hidden box.
Black and white shell is optional.

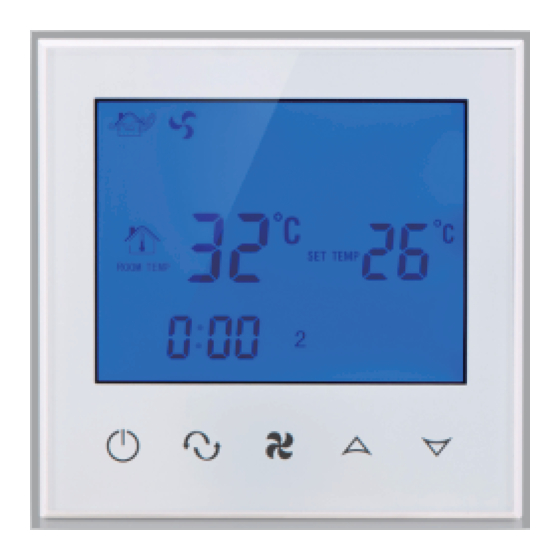

Home screen quick reference
Lock
Low Med High
Ventilation
Cooling
Heating
Room Temp.
.
Week
Clock
Power on/off
Mode
Fan
Model definition of your thermostat
A1: Two pipe; Control Fan Coil Unit and Two
wired Motorized valve.(when room temperature
reaches the setpoint, both will turn off)
A2: Two pipe; Control Fan Coil Unit and Two
wired Motorized valve.(when room temperature
reaches the setpoint, valve will turn off but fan will
turn to low speed)
B: Two pipe; Control on/off Motorized Damper
C: Two Pipe; Control Fan Coil Unit and Three
wired Motorized valve
E: Four pipe; Control Fan Coil Unit and Two wired
Heat and Cool Motorized valve.
L: Backlight
P: Weekly Programmable
For example: TP20 1A1LP
Operation
1. Setting Power on/off
Press
2. Setting Temperature
Press
Factory default is 26 ℃.
3. Selecting System Mode
Press
ventilation. Factory Default is ventilation.
Auto
4. Setting the Fan Speed
Period 4
Press
Period 3
Period 1
Period 2
Valve
Set Temp.
In auto mode, the fan will run according to the
comparision of room temperature and set
temperature.
Up Down
to turn on/off the power.
to set the temperature.
to select heating, cooling or
to select the fan speed.
is Low speed(Factory default);
is Med speed;
is High speed;
is Auto speed.
