Maxilux H3-RCV-4CV Instructions

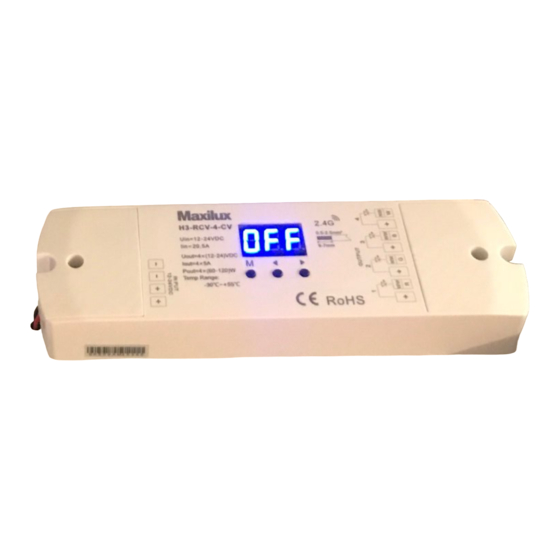

This is a 4 channel receiver which will work with any DC lamp in the 12-24v range
- RGB or RGBW - control a single length
- CCT LED Strip - control 2 lengths
- Single Colour - control up to 4 lengths
Quick Start
1. Connect your power supply to the input side - DO NOT CONNECT MAINS VOLTAGE
- THIS WILL DESTROY THE UNIT.
2. Match the receiver to the type of lighting you are
using. By default it is set for RGBW.
To select the type, press M & < keys together for 2
secs - the display will then change indicating you
are in Setting mode. Pressing the > key will cycle
through the available options:
RGBW - Ch4 (notice upper case C and lower case
h)
Single Colour - all connected lengths controlled at
the same time - select Ch1
Single Colour - each connected length can be
controlled individually - Select CH4 (notice both are
upper case)
Colour Temperature adjustable - select Ch2
RGB : Select Ch3

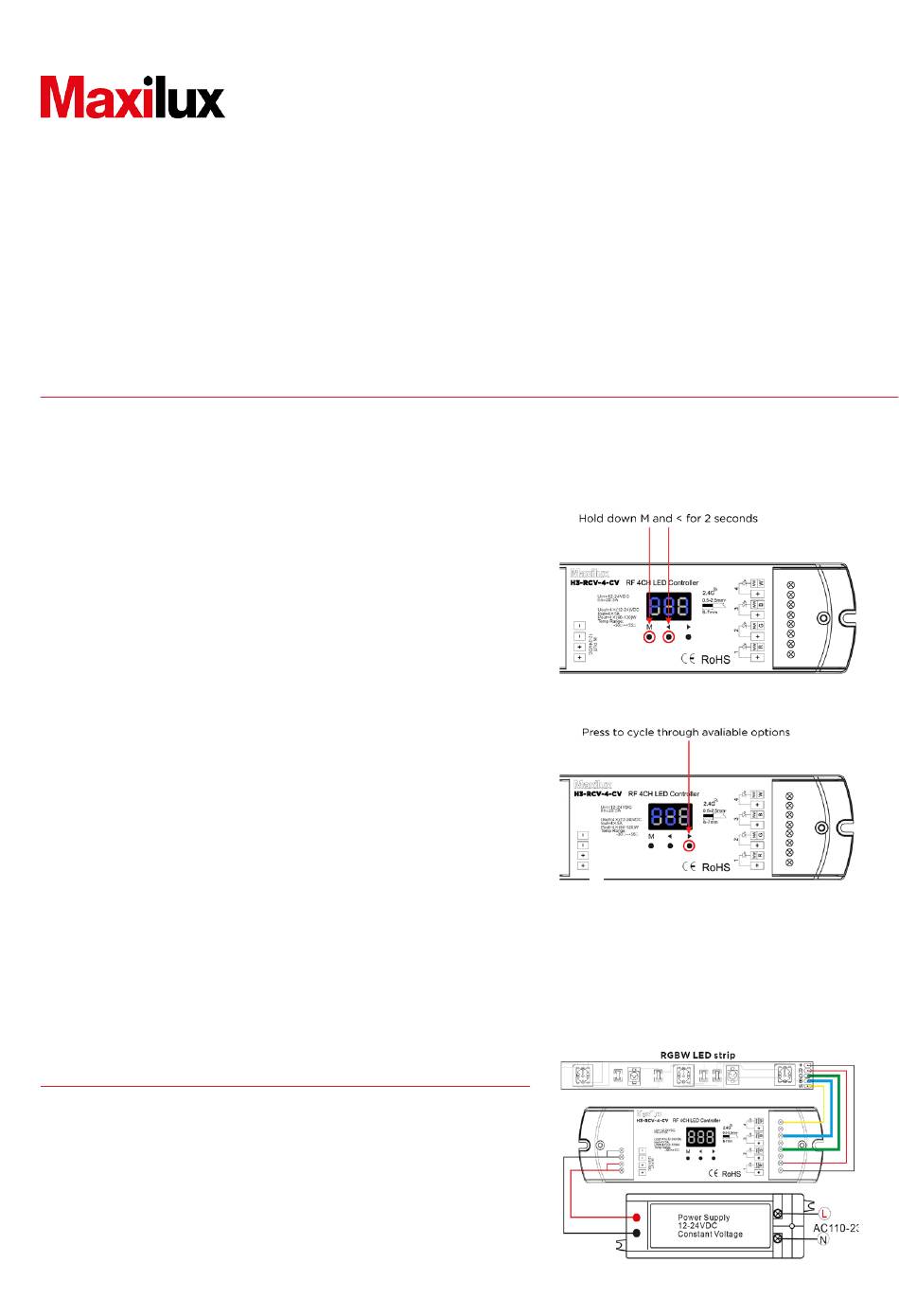

Wiring Diagram
3. Connect your LED Strip or lamps to the output
side.
H3-RCV-4CV Instructions
