Summary of Contents for Radar Vision Stuttgart M8
- Page 1 Stuttgart Controller User Manual Radar Vision Pty Ltd | Controller User Manual rev 1.8...
-
Page 2: Table Of Contents
Introduction ...................... 3 Connecting Your Controller ................4 Factory Defaults ....................5 Web Interface ....................6 Network Configuration ..................9 SNMP ....................... 11 Firmware Update .................... 12 Technical Specifications .................. 13 Radar Vision Pty Ltd | Controller User Manual rev 1.8... -
Page 3: Introduction

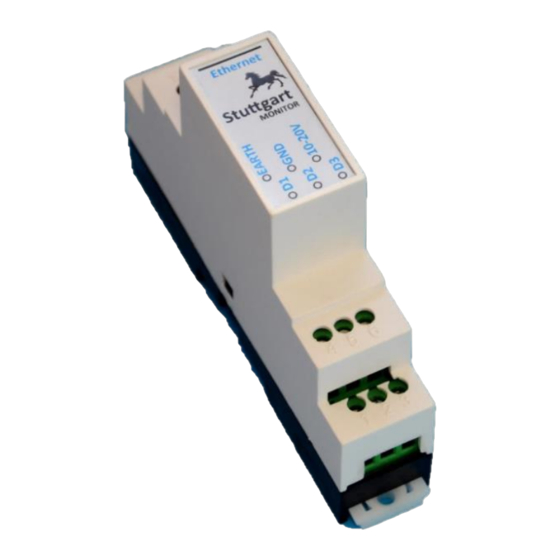

Introduction Welcome to the Stuttgart M8 controller. This guide will guide you through the configuration and setup of the product. There are different options and versions of the product. Please identify the features that you have purchased. Radar Vision Pty Ltd |... -
Page 4: Connecting Your Controller
Data LED on the Ethernet connector will indicate Link and Data status. The system requires approximately 1.2 Watt of power or 0.1 Amp at 12V or 0.05 Amp at 24V. Radar Vision Pty Ltd | Controller User Manual rev 1.8... -
Page 5: Factory Defaults
You can reset the factory defaults by using a sharp object to push the DEFAULTS button just behind the Ethernet connector. The button has to be held in on power-up. The default IP address is 10.10.0.1 Defaults button Isolation jumper Radar Vision Pty Ltd | Controller User Manual rev 1.8... - Page 6 3 digital inputs. In this configuration all the inputs are fully optically isolated from the rest of the system. Input 4 will become the GND_ISO (Isolated Ground) for all 3 digital inputs. Radar Vision Pty Ltd | Controller User Manual rev 1.8...
-
Page 7: Web Interface
The State Change Flag is set when the state change from low to high or high to low. To clear the flag, you need to use SNMP to read the value. Radar Vision Pty Ltd | Controller User Manual rev 1.8... - Page 8 If fitted with a UART, the settings can be configured under the UART configuration page. Radar Vision Pty Ltd | Controller User Manual rev 1.8...
-
Page 9: Network Configuration
Network Configuration To change the network configuration, you have to login using ‘admin’ as username and ‘stuttgart’ as password. Radar Vision Pty Ltd | Controller User Manual rev 1.8... - Page 10 Note that the MAC address can be programmed only once. If the last two numbers in the MAC address are other than 00:00, the MAC address will not be configurable. Radar Vision Pty Ltd | Controller User Manual rev 1.8...
-
Page 11: Snmp
SNMP Basic MIB tree is indicated below. The product is provided with a MIB. You can download a MIB browser from http://www.ireasoning.com/ Radar Vision Pty Ltd | Controller User Manual rev 1.8... -
Page 12: Firmware Update
With TFTP enabled, use the command prompt to go to the folder where the firmware is located. Then type “tftp 10.10.0.1 put Stuttgart_Field_Controller_V1.00.hex” Substitute the IP address with the correct one. Radar Vision Pty Ltd | Controller User Manual rev 1.8... -
Page 13: Technical Specifications
Technical Specifications Radar Vision Pty Ltd | Controller User Manual rev 1.8...
