ELECTRONIC TOY TRACTOR
• Suitable for 3+ Years
• Maximum user weight: 30 kg
The trailer of this product is only for decoration, passenger
and loading are not allowed!
OWNERS MANUAL
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 4-6 hours, but no more than 10
hours.
CHILDREN'S
with Assembly Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for METAKOO XMX611
- Page 1 CHILDREN’S ELECTRONIC TOY TRACTOR • Suitable for 3+ Years • Maximum user weight: 30 kg The trailer of this product is only for decoration, passenger and loading are not allowed! OWNERS MANUAL with Assembly Instructions Read and understand this entire manual before using! Please keep this manual for future reference as it contains important information.
-
Page 2: Specification
About Your New Vehicle On the purchase of your new Ride-On. This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference. -
Page 3: Parts List
Parts List Q’TY (PCS) REMARK PART NAME WITHOUT TRAILER WITH TRAILER Vehicle body Normal wheel Driving wheel Φ10 washer Lock nut Normal wheel hubcap Driving wheel hubcap Steering wheel Φ5 nut M5X30 machine screw Seat Φ4x12 round head screw Trailer linkage If equipped, for the trailer Φ4x12 flat head screw If equipped, for the trailer... -
Page 4: Parts Diagram
Parts Diagram... -
Page 5: Rules For Safe Riding
Safety PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties. - Page 6 Attach the Trailer linkage & Driving wheel Turn the vehicle body downside up. 1. Fit the trailer linkage to the vehicle body. 2. Insert four Ø4x12 flat head screws through the trailer linkage and into the vehicle body and tighten with a screwdriver.
- Page 7 Attach the Rear Wheels & Steering Wheel Front Bottom View 1. Slide a Ø10 washer onto the front axle. 2. Slide a normal wheel onto the front axle. 3. Slide a Ø8 washer onto the front axle. 4. Tighten a lock nut to the end of the front axle. 5.
- Page 8 Attach the Exhaust Pipe & Connect the Power 1. Fit the exhaust into the hole on the right side of the vehicle body, push until you hear it click into place. 2. Plug the red connector on the vehicle body into the red connector from the battery.
- Page 9 Attach the Seat & the Trailer 1. Fit the seat to the vehicle body. 2. insert five Ø4x12 round head screws and tighten. Rear View Attach the Trailer (if equiped) Turn the trailer house downside up. 3. Fit the trailer support to the trailer house.
- Page 10 Attach the Rails & Trailer Wheel (if equiped) Turn over the trailer house 1. Fit the side rails to the front rail 2. Fit the rails assembly to the trailer hours. 3. Tighten a locknut to the end of trailer axle. 4.
- Page 11 Attach the Trailer to Vehicle body (if equiped) 1. Slide bushing on the trailer axle. 2. Slide a Ø10 washer onto the trailer axle. 3. Slide a normal wheel (out side first) on the trailer axle. 4. Slide a Ø8 washer onto the trailer axle. 5.
- Page 12 Use your new ride-on IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor. 1. One button start: Turns the vehicle on and off. 2. High / Low speed forward & Reverse shift: Changes the direction that vehicle moves from forward to reverse.
- Page 13 Use the Player A. USB slot (Maximum support 15GB) Change the audio input (from the Bluetooth or the USB) C. Play / Next D. Decrease volume E. Increase volume F. Battery display: It displays the power level of the battery when the vehicle stops.
- Page 14 Use the Remote Controller (IF EQUIPPED) Brake button Forward button Right button Reverse button Left button Speed select button Speed indicator Attach the batteries of controller Lift the battery compartment door on the back of the controller and insert two AAA(LR03) batteries.
- Page 15 Charging WARNING! ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery! • The POWER SWITCH must be turned in OFF position when charging. •...
-
Page 16: Troubleshooting Guide
Troubleshooting Guide Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please. - Page 17 Maintaining • It is parents' responsibility to check main parts of the toy before using, must regularly examine for potential hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
-
Page 18: Disposal Of Battery
Fuse The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again.
Need help?
Do you have a question about the XMX611 and is the answer not in the manual?
Questions and answers
Foot pedals is sticking and tractor is stuck on with rider!

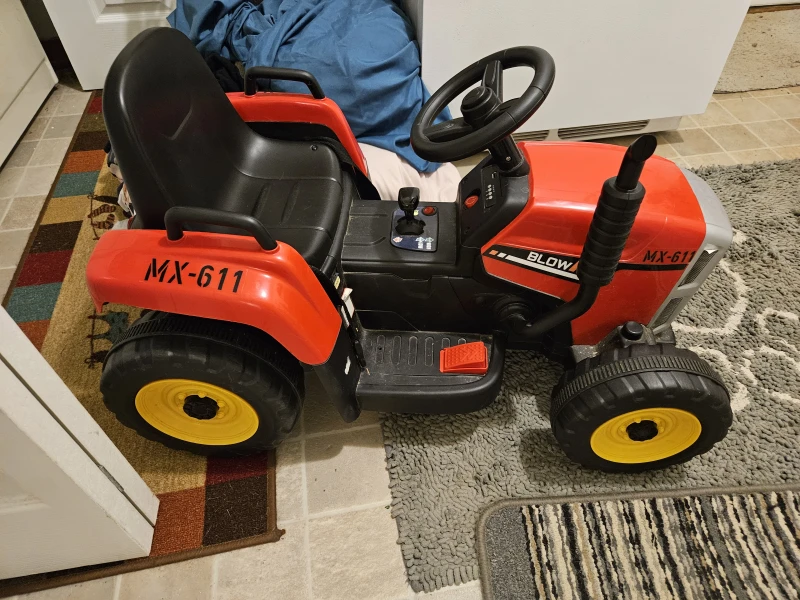

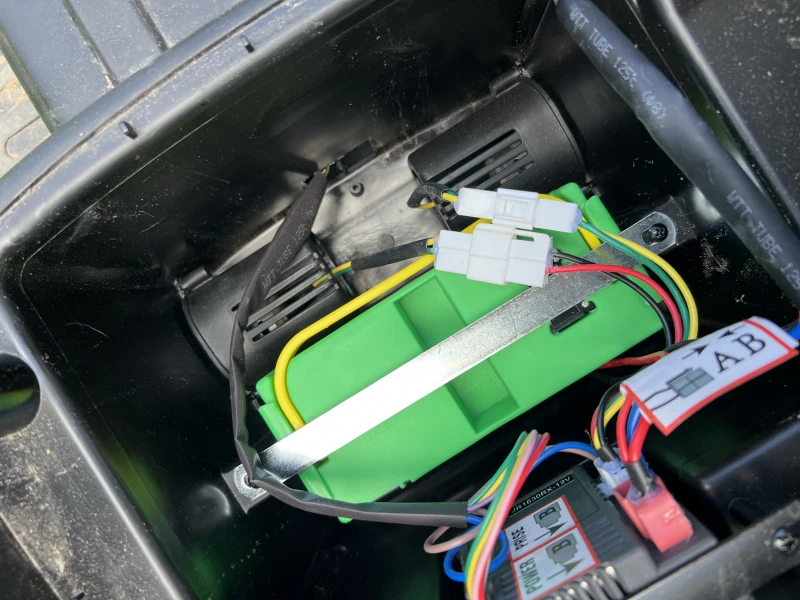

My son’s tractor shorts out and when I took off the seat the left back wheel shoots out smoke. How can I fix this?
If your METAKOO XMX611 tractor shorts out and smoke comes from the left back wheel, the issue may involve a damaged motor or gears, loose wires, or poor electrical connections. Follow these steps:
1. Stop using the vehicle immediately to prevent further damage or fire risk.
2. Check for loose or damaged wires near the left back wheel and motor. Ensure all connectors are firmly plugged in.
3. Inspect the motor and gearbox on the left back wheel for visible damage. Loud grinding or smoke suggests a motor or gear failure.
4. Do not attempt further use or repair if damage is found. Contact your distributor for repair or replacement.
Do not allow children to use the vehicle until it is properly repaired.
This answer is automatically generated
I need driven well and hardware
Compatible hardware with the METAKOO XMX611 includes:
- Trailer (if equipped)
- Exhaust pipe
- Spanner (2 pieces)
- Charger
- Remote controller (if equipped)
- Φ8 washer (4 to 6 pieces)
- Screwdriver (required for assembly)
- Trailer axle
- Ø10 washer
- Normal wheels
- Locknut
- Wheel hubcaps
- Trailer bolt
These parts are used for assembly, operation, and maintenance of the vehicle.
This answer is automatically generated
Здравствуйте. Трактор работал и с пульта и с педали когда получили, проверили. Перевезли ребенку в подарок из деревни в город(ребенок на нём не ездил) , полностью перестал работать?
The METAKOO XMX611 tractor could stop working after being transported if the thermal fuse is tripped due to an overload or electrical issue. This may happen if the battery connection is loose, if the power switch was not turned off before transport, or if the vehicle experienced a shock that affected the motor or electrical system. To reset, turn the unit OFF for 20 seconds and then ON again. If it still does not work, the vehicle may need repair.
This answer is automatically generated
The pedal is not working but the remote works
If the pedal is not working on the METAKOO XMX611 while the remote works, the issue could be due to a failed connection or lost pairing between the vehicle and the pedal control system. It may also be caused by the vehicle being in remote control mode, which can override pedal function. Check if the batteries in the remote were recently replaced and ensure the connection was rebuilt. Additionally, verify that the power switch is on and that the battery is charged.
This answer is automatically generated
I need a electric motor
The METAKOO XMX611 is compatible with the 390-16000 electric motor.
This answer is automatically generated
What model charger is used?

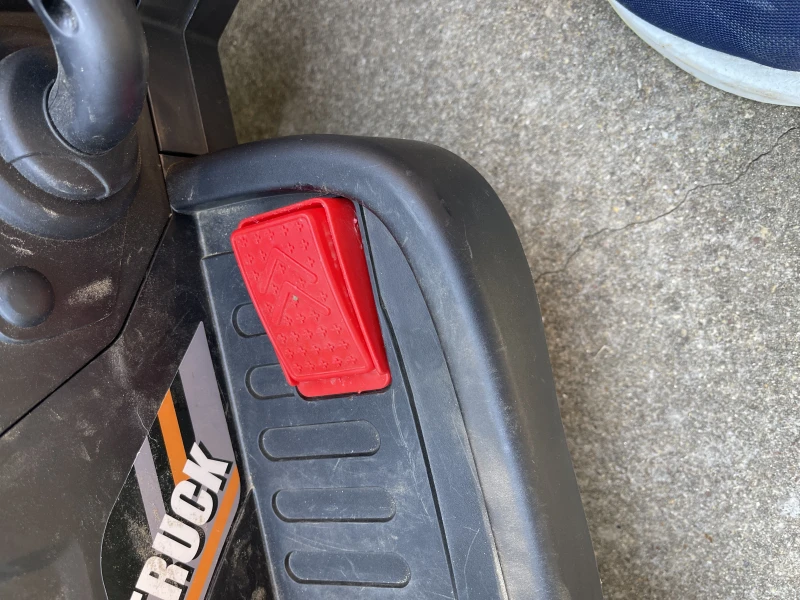

The red gas pedal is stuck in the go position
