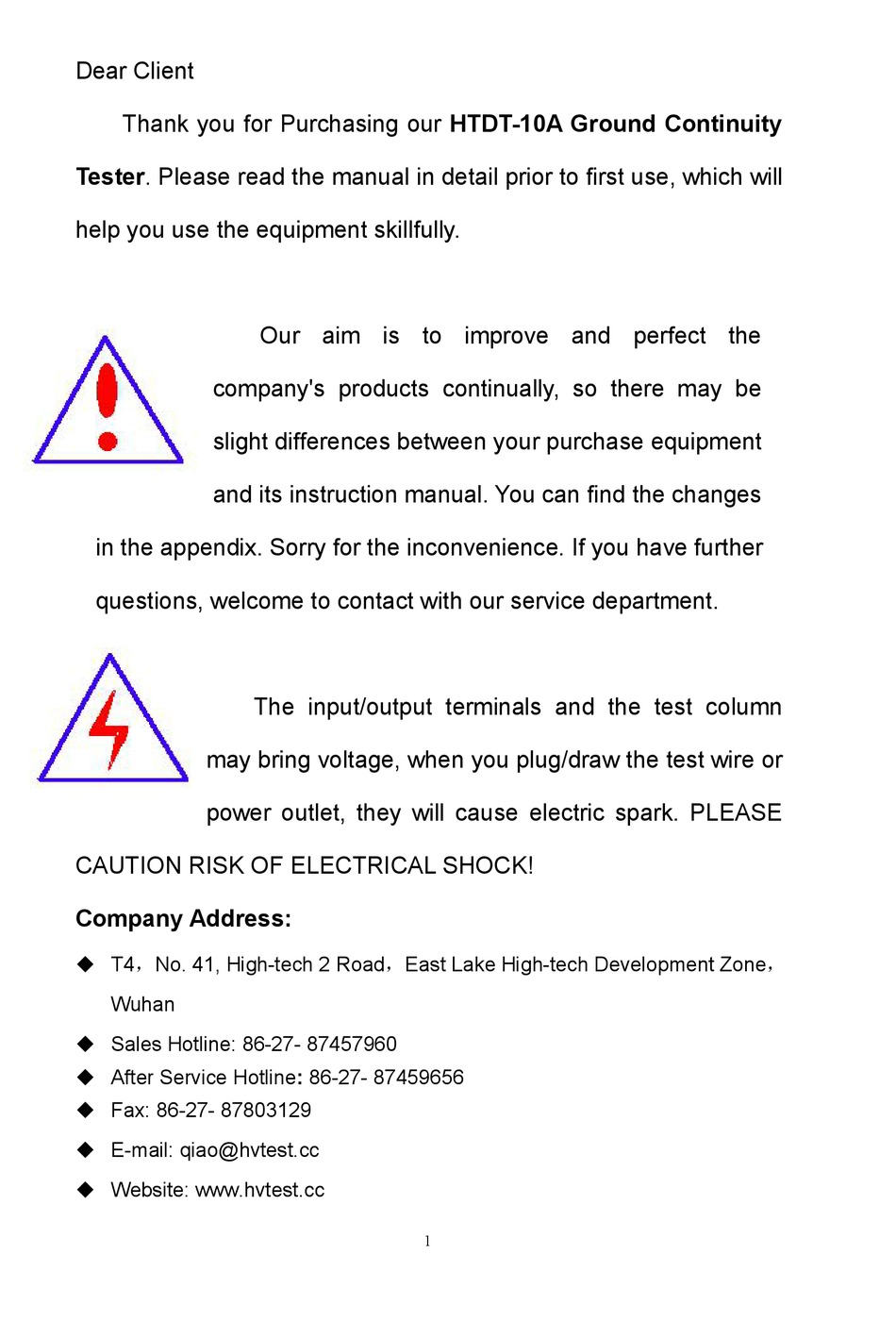

Dear Client
Thank you for Purchasing our HTDT-10A Ground Continuity
Tester. Please read the manual in detail prior to first use, which will
help you use the equipment skillfully.
company's products continually, so there may be
slight differences between your purchase equipment
and its instruction manual. You can find the changes
in the appendix. Sorry for the inconvenience. If you have further
questions, welcome to contact with our service department.
may bring voltage, when you plug/draw the test wire or
power outlet, they will cause electric spark. PLEASE
CAUTION RISK OF ELECTRICAL SHOCK!
Company Address:
T4，No. 41, High-tech 2 Road，East Lake High-tech Development Zone，
Wuhan
Sales Hotline: 86-27- 87457960
After Service Hotline: 86-27- 87459656
Fax: 86-27- 87803129
E-mail: qiao@hvtest.cc
Website: www.hvtest.cc
Our aim is to improve and perfect the
The input/output terminals and the test column
1
Advertisement
Table of Contents
Summary of Contents for Wuhan Huatian Electric Power Automation HTDT-10A
- Page 1 Dear Client Thank you for Purchasing our HTDT-10A Ground Continuity Tester. Please read the manual in detail prior to first use, which will help you use the equipment skillfully. Our aim is to improve and perfect the company's products continually, so there may be slight differences between your purchase equipment and its instruction manual.
- Page 2 SERIOUS COMMITMENT All products of our company carry one year limited warranty from the date of shipment. If any such product proves defective during this warranty period we will maintain it for free. Meanwhile we implement lifetime service. Except otherwise agreed by contract.
- Page 3 ground pole of the shell must be grounded. To prevent electric shock, the grounding conductor must be connected to the ground. Make sure the product has been grounded correctly before connecting with the input/output port. Pay Attention to the Ratings of All Terminals To prevent the fire hazard or electric shock, please be care of all ratings and labels/marks of this product.
- Page 4 －Security Terms Warning: indicates that death or severe personal injury may result if proper precautions are not taken Caution: indicates that property damage may result if proper precautions are not taken.
-
Page 5: Table Of Contents
Contents I. Overview................. 6 II. Functions................7 III. Features................7 IV. Specifications..............8 V. Panel Layout.................9 VI. Work Principle..............9 VII. Operation Methods............10 VIII. Problems and Solutions..........12 IX. Notes................... 13 X. Packing List................13... -
Page 6: Overview
I. Overview The electrical integrity of earthing device is the electrical connectivity among all kinds of electrical devices that should be grounded or the electrical connectivity between ground equipment all parts and devices, it is DC resistance value; it is also known as electrical conductivity. -
Page 7: Functions
provides that the electrical conductivity should use special instruments to measure. The instrument resolution is 1mΩ; accuracy is not less than 1.0 class. Based on this standard, our company designed this high degree of automation and portable tester. It is specially used to test the electrical integrity of earthing device;... -
Page 8: Specifications
(2) Strong anti-interference ability: The last number of test data will stably show in the LCD screen only with ±1 error even in strong Interference situation. (3) Long service life: All the precise resistances used in the instrument reduce temperature’s impact measurement results and military connectors can enhance vibration resistance. -
Page 9: Panel Layout
(7) Work Mode: Continuous (8) Power Supply: AC220V±10% 50Hz (9) Work Environment: Temperature: -10 ℃～ 40 ℃ Humidity: ≤80 %RH (10) Dimension: 300×270×200 mm3 (11) Weight: 5kg （ Accessories excluded ） V. Panel Layout Figure 1 Panel Layout diagram 1、 Resistance Display （ mΩ） 2、Grounding 3、Current Output I+ 4、Measurement Input U＋... -
Page 10: Operation Methods
that also known as Four-line method testing technology. More details show in Figure 2. Figure 2 Schematic diagram The current goes through I+ and I- ports to the resistance Rx, current value can be got from the ammeter I, and the voltage between V+ and V- will be shown in the voltmeter V. - Page 11 Figure 3 Four-terminal Wiring diagram The instrument has two test lines: a 50-meter red line on the plate, please connect the large fork to the red terminal I +, and connect the small fork to the red terminal U +; let the large fork of 5-meter black line connect to black terminal I-, and the small one to the black terminal U-.
-
Page 12: Problems And Solutions
AC power supply, turn on power switch, the instrument enter into the starting up state. Press "test" key to begin test, the middle of the display screen shown measured resistance is the on-resistance values, its unit is mΩ. Please refer to the following table to check the test result is normal or not. -
Page 13: Notes
IX. Notes (1) Please read the manual carefully before using this tester and wire properly as recommended in this manual. (2) During testing, please make sure power supply of measured device turn off and it disconnects from other energized equipment. (3) The instrument should be firmly grounded during testing.
